ABB

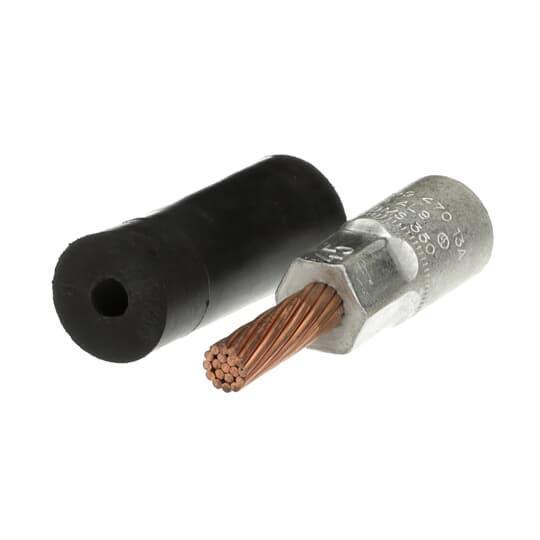

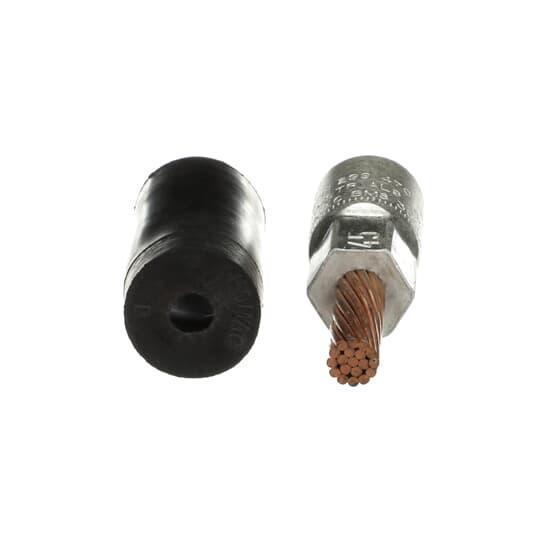

PA02 T-B PIN ADAPTER 78378613402

Mouse over image to zoom, click to enlarge

  • PA02 T-B PIN ADAPTER 78378613402
  • PA02 T-B PIN ADAPTER 78378613402
  • PA02 T-B PIN ADAPTER 78378613402

Description: Color-Keyed® Pin Adapter Terminal, Straight, Series: PA Series, 2 AWG Conductor, Die Code: 50, Orange Color Code, 7/8 in Pin Length, 1-11/32 in Barrel Length, Specifications: #4 Stud Size, 0.64 in OD, 90 deg C Operating Temperature, Tin Plated, Aluminum, 2.22 in L

Manufacturer PN: PA02

UPC:  78378613402

Kendall Electric Inc PN: 3243146

Invoice Description:

PA02 T-B PIN ADAPTER 78378613402


SPEC SHEET

▸ See All in Compression Pin Terminals


How Can We Make This Page Better?

Color-Keyed® PA02 Straight Pin Adapter Terminal, 2 AWG Conductor, Die Code: 50, 7/8 in L Pin, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Color-Keyed® Pin Adapter Terminal, Straight, Series: PA Series, 2 AWG Conductor, Die Code: 50, Orange Color Code, 7/8 in Pin Length, 1-11/32 in Barrel Length, Specifications: #4 Stud Size, 0.64 in OD, 90 deg C Operating Temperature, Tin Plated, Aluminum, 2.22 in L

Specifications

 Barrel Length 1-11/32 in
 Brand Name Blackburn®
 Color Code Orange
 Conductor Size 2 AWG
 Die Code 50
 Dimensions 2.22 in L
 Includes Insulating Cover
 Manufacturer Part Number PA02
 Material Aluminum
 PART NUMBER KEYWORDS PA02 ; 7TAH007770R0104 ; 10766860 ; 783786134021 ; 78378613402 ; 00783786134021
 Pin Length 7/8 in
 Series PA Series
 Specifications #4 Stud Size, 0.64 in OD, 90 deg C Operating Temperature, Tin Plated
 Standards/Approvals UL E63167 / UL E63167
 Type Straight

Features

▪ Connector for aluminum conductor only
▪ Pigtail may be inserted into either aluminum or copper connectors
▪ Aluminum barrel prefilled with oxide inhibitor and capped
▪ Long barrel
