Eaton

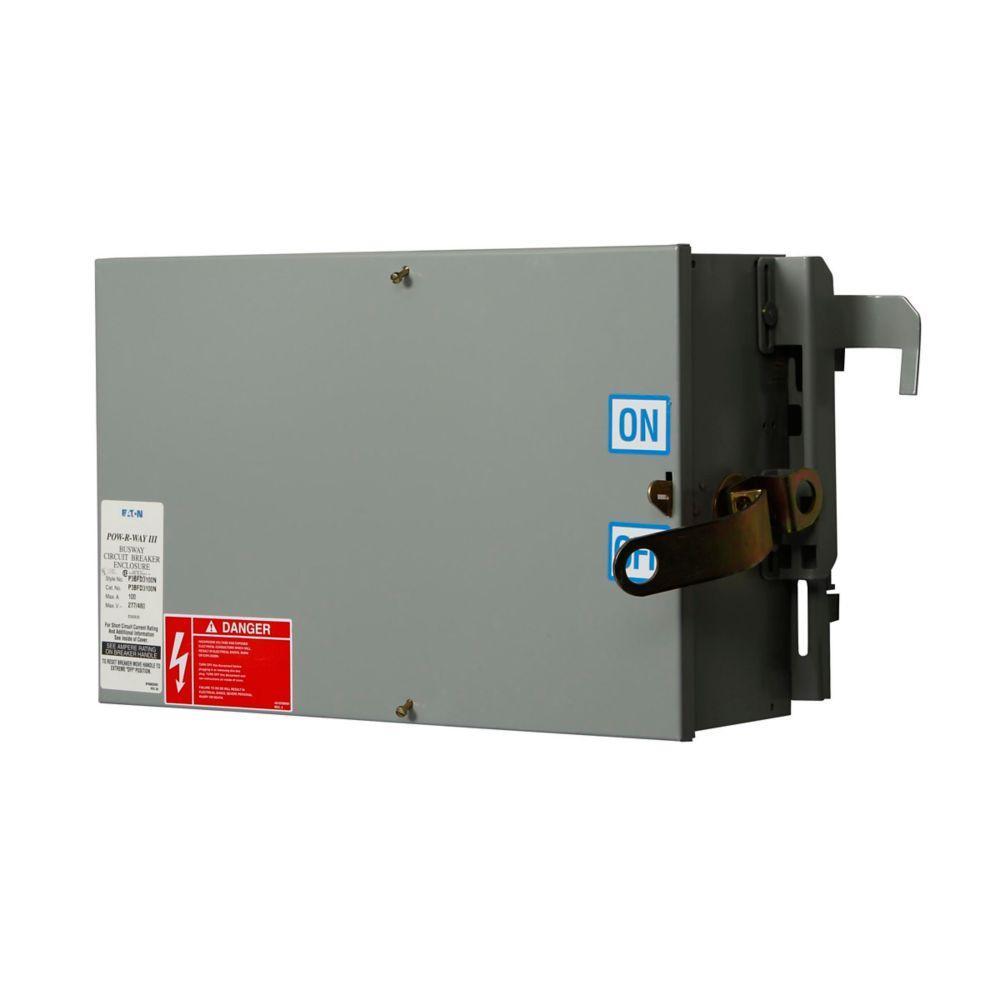

P3F325R CH 400 AMP PLUG IN UNIT

Mouse over image to zoom, click to enlarge

  • P3F325R CH 400 AMP PLUG IN UNIT
  • P3F325R CH 400 AMP PLUG IN UNIT
  • P3F325R CH 400 AMP PLUG IN UNIT
  • P3F325R CH 400 AMP PLUG IN UNIT

Description: EATON Pow-R-Way III® Fusible Plug-In Unit, 3-Pole Class R, Series: P3F, 240 VAC, 400 A Trip, 3 Wires, 200 kA Short Circuit, 3 ph, Aluminum, 10.07 in L x 21.22 in W x 48.85 in H

Manufacturer PN: P3F325R

UPC:  78668300009

Kendall Electric Inc PN: 2270093

Invoice Description:

P3F325R CH 400 AMP PLUG IN UNIT


SPEC SHEET

▸ See All in Busway Fusible Plug Units


How Can We Make This Page Better?

EATON Pow-R-Way III® P3F325R P3F 3-Pole Class R Fusible Plug-In Unit With Fuse Clip, 240 VAC, 400 A, 3 Wires

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

With a customizable and flexible design, Pow-R-Way III busway is the preferred means of connecting electrical equipment to maximize power distribution system performance. Its ease of use and speed of installation provides efficient solution for even the most challenging layout requirements compared to traditional cabling conduit solutions.
EATON Pow-R-Way III® Fusible Plug-In Unit, 3-Pole Class R, Series: P3F, 240 VAC, 400 A Trip, 3 Wires, 200 kA Short Circuit, 3 ph, Aluminum, 10.07 in L x 21.22 in W x 48.85 in H

Specifications

 Application Generation, Renewable Energy, Wind, Datacenters, Aftermarket, Utility, Public Transmission, Commercial, Institutional Buildings, Structures, Power Distribution and Controls, Residential Buildings, Facilities, Industrial Facilities, Factories, Water and Wastewater Systems, Integrated PODs, Enterprise, Server Room, Network Closet, Distributed Enterprise, Critical Power, PFM and Pow-R-Way III® Low Voltage Busway System Applications
 Brand Name EATON
 Dimensions 10.07 in L x 21.22 in W x 48.85 in H
 Manufacturer Part Number P3F325R
 Material Aluminum
 Number of Wires 3
 Phase 3
 Series P3F
 Short Circuit Current Rating 200 kA
 Standards/Approvals ANSI Specified|CSA Certified|CSA C22.2 No. 27- 94|IEC 439-1|IEC 439-1-2|IEC 529|IEEE Certified|NEMA Compliant|UL 857
 Trip Amperage 400 A
 Type 3-Pole Class R
 Video Links
 Voltage Rating 240 VAC

Features

▪ Advanced bus plugs provide protection, communication and coordination capabilities
▪ The all-aluminum two-pieces housing provides durability and product integrity
▪ The lightweight and compact design results in easy installation
▪ The housing combined with a true sandwich design in both plug-in and feeder busway contributes to improve coordination and high short circuit ratings
▪ An epoxy insulation process ensures optimum conductor and system protection
▪ Silver plated joint and contact surfaces provide high quality connections
▪ Highly automated manufacturing processes result in a superior product
▪ Corner joint elbows contribute to successful layouts and minimize space limitations
▪ High six cycle short circuit ratings optimize coordination between busway and power equipment
▪ Plug-in busway design and an enhanced bus plug-in unit facilitates installation and improves safety
