Eaton
P167-000 TRIPP LITE HDMI OVER CAT5 ACTIVE EXTENDER WALL PLATE KIT

Mouse over image to zoom, click to enlarge

  • P167-000 TRIPP LITE HDMI OVER CAT5 ACTIVE EXTENDER WALL PLATE KIT
  • P167-000 TRIPP LITE HDMI OVER CAT5 ACTIVE EXTENDER WALL PLATE KIT
  • P167-000 TRIPP LITE HDMI OVER CAT5 ACTIVE EXTENDER WALL PLATE KIT
  • P167-000 TRIPP LITE HDMI OVER CAT5 ACTIVE EXTENDER WALL PLATE KIT

Description: Tripp Lite Wallplate Kit, Series: P167, HDMI Connector, Wall Mounting, For Use With: HDMI over Dual Cat5/Cat6 Extender, White

Manufacturer PN: P167-000

UPC:  03733214373

Kendall Electric Inc PN: 2723403

Invoice Description:

P167-000 TRIPP LITE HDMI OVER CAT5 ACTIVE EXTENDER WALL PLATE KIT


SPEC SHEET

▸ See All in HDMI Wallplates


How Can We Make This Page Better?

Tripp Lite P167-000 Wallplate Kit With Transmitter and Receiver, Wall Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

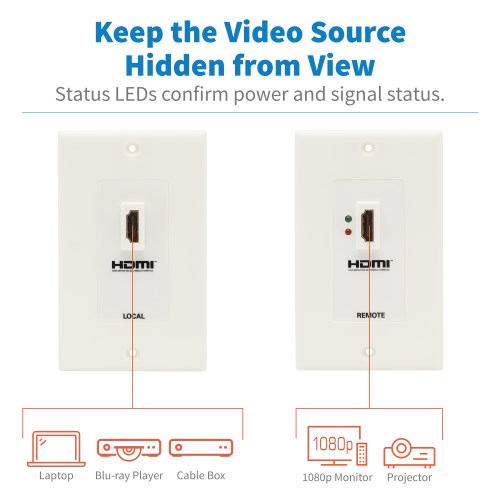

Tripp Lite HDMI over dual Cat 5 extender wallplate kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat 5/6 cables. Simply run two Cat 5/6 cables between the local transmitter and remote receiver wallplates and plug in standard Tripp Lite HDMI cables to the HDMI source and the display. The green LED on the remote receiver wallplate lets you know that power from the source and monitor. When functioning properly, only the green LED will be lit. If the red LED is illuminated, it means that the remote receiver is not receiving a functional signal from the source. The P167-000 comes with both local transmitter and remote receiver wallplates. DTS-HD, Dolby TrueHD and 7.1 channel surround sound audio are supported and it is Compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported. No external power is required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Tripp Lite Wallplate Kit, Series: P167, HDMI Connector, Wall Mounting, For Use With: HDMI over Dual Cat5/Cat6 Extender, White

Specifications

 Brand Name Tripp Lite
 Color White
 Connector Type HDMI
 Fitting Type HDMI

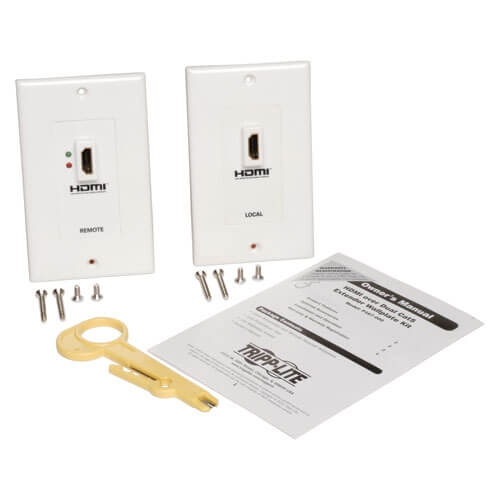

 Includes (1) Owner's Manual, (4) WallPlate Screws and 110 Punchdown Tool
 Manufacturer Part Number P167-000
 Mounting Type Wall
 Series P167
 Standards/Approvals Tested to CE, FCC, RoHS, REACH
 Suitable For Use With HDMI over Dual Cat5/Cat6 Extender
 Video Links

Features

▪ Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 150 ft (45.72 m) using 24 AWG, Solid Wire Cat6 cabling (N222-Series, or N224-Series )
▪ Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
▪ No external power required

Resources

 Product Data Sheet
