Grace Technologies
P-B1-F3R0 GRACE

Mouse over image to zoom, click to enlarge

  • P-B1-F3R0 GRACE
  • P-B1-F3R0 GRACE
  • P-B1-F3R0 GRACE
  • P-B1-F3R0 GRACE
  • P-B1-F3R0 GRACE

Description: GracePorts®, P-R62-K4RF3, Connector, Bulkhead, Panel Mounting, 125 VAC, Cat 6 Ethernet RJ45 F/F Connector, Aluminum Housing Material, 3.54 in H x 5.08 in W x 1.60 in D Dimensions

Manufacturer PN: P-B1-F3R0

UPC:  84286410338

Kendall Electric Inc PN: 2045592

Invoice Description:

P-B1-F3R0 GRACE


SPEC SHEET

▸ See All in Interface Connectors


How Can We Make This Page Better?

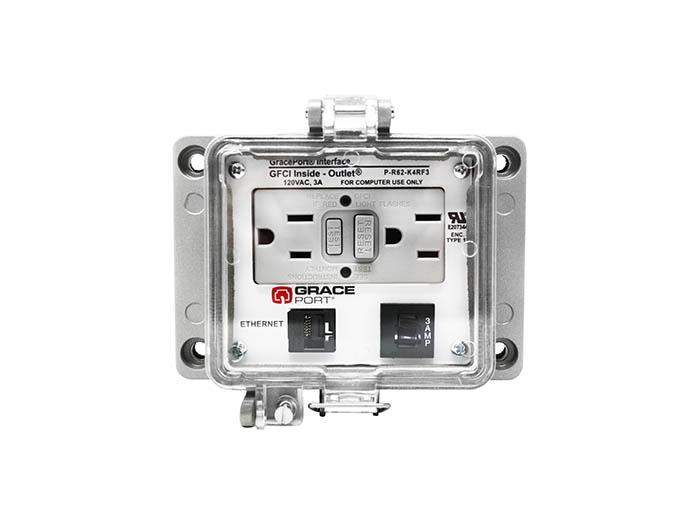

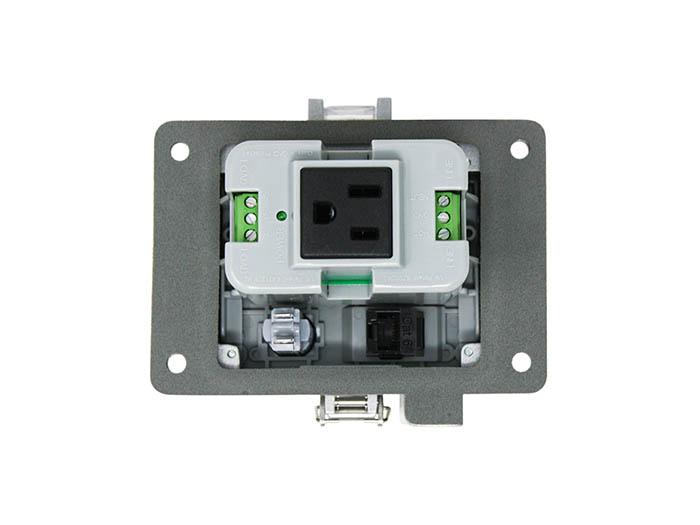

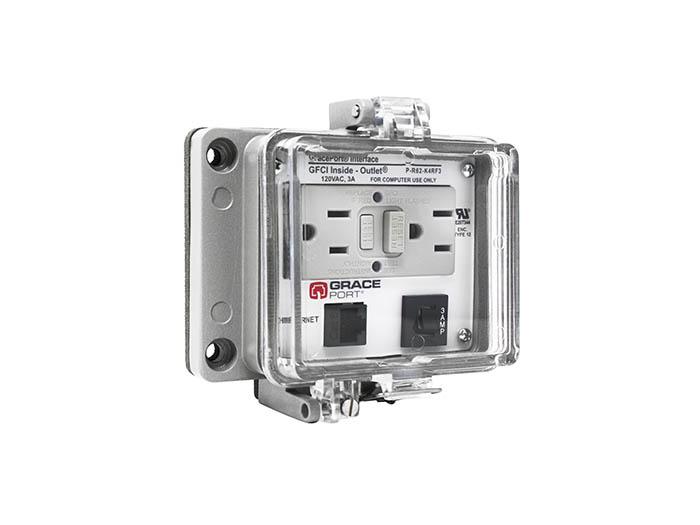

GracePorts® P-R62-K4RF3 Bulkhead Connector, Aluminum Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

GracePorts®, P-R62-K4RF3, Connector, Bulkhead, Panel Mounting, 125 VAC, Cat 6 Ethernet RJ45 F/F Connector, Aluminum Housing Material, 3.54 in H x 5.08 in W x 1.60 in D Dimensions

Specifications

 Application For Indoor application
 Brand Name GracePorts
 Connector Type Cat 6 Ethernet RJ45 F/F
 Dimensions 3.54 in H x 5.08 in W x 1.60 in D
 Fitting Type Cat 6 Ethernet RJ45 F/F
 Housing Material Aluminum
 Manufacturer Part Number P-R62-K4RF3
 Mounting Type Panel
 Standards/Approvals NFPA 70E Compliant|UL Type 12|RoHS Compliant|UL E207344
 Type Bulkhead
 Voltage Rating 125 VAC

Features

▪ Panel Interface Connector that typically mounts to the outside of a control panel housing
▪ These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e
▪ R62 Component Code, RJ45 Female Front/Back
▪ Domestic GFCI Inside-Outside Rear Power Outlet, 15 Power AMPs, 3A Circuit Breaker
▪ K Size Housing, Type 304 Stainless Steel Latch
