Hubbell
P-60-2-AL T-B ALUMINUM COVER PLATE

Mouse over image to zoom, click to enlarge

  • P-60-2-AL T-B ALUMINUM COVER PLATE
  • P-60-2-AL T-B ALUMINUM COVER PLATE
  • P-60-2-AL T-B ALUMINUM COVER PLATE

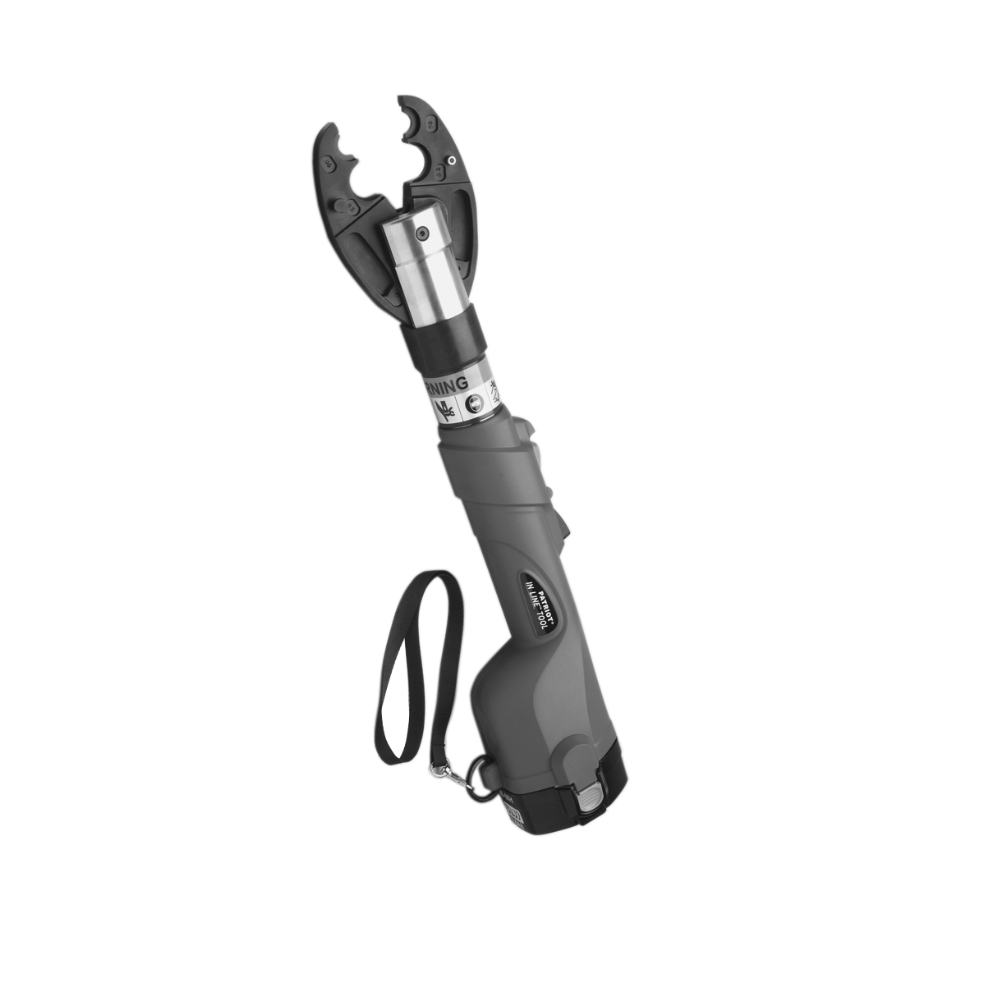

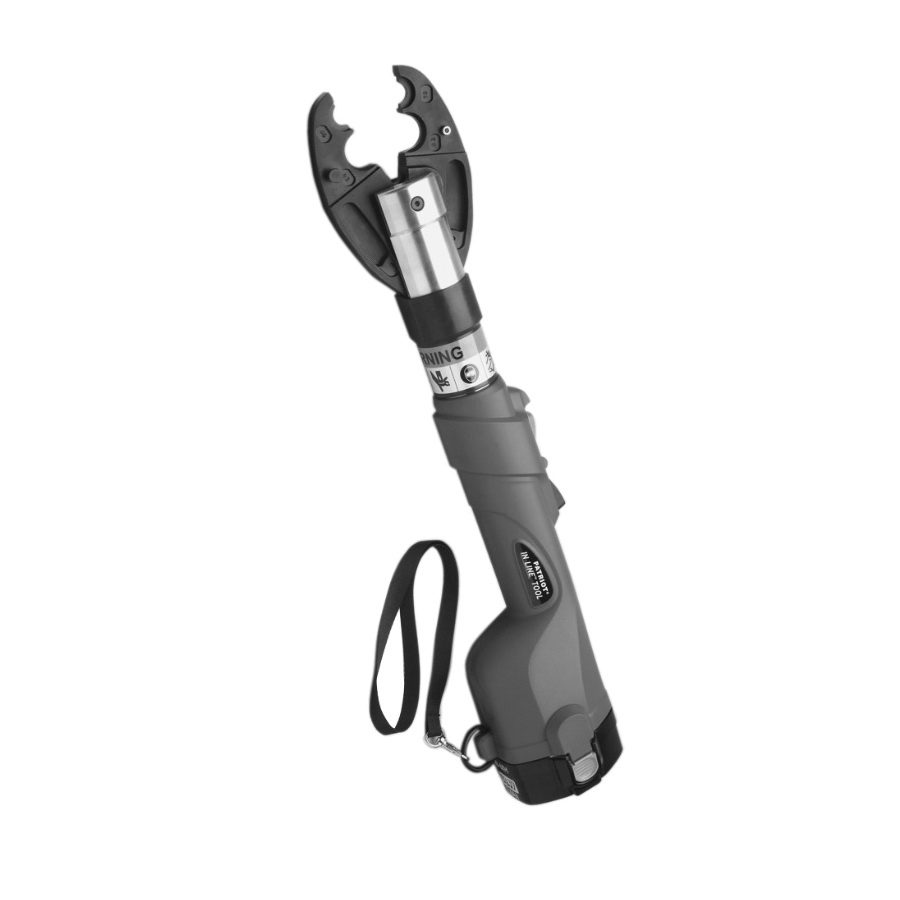

Description: BURNDY®, PATMD614V, Hydraulic Crimping Tool, Tool/Kit: Bare Tool, Battery Actuated Self-Contained, Crimping Capacity: 10 AWG to 500 kcmil Copper, 8 AWG to 350 kcmil Aluminum, 6 ton Crimping Force, 7800 psi Operating, Off-the Shelf Connection, 20.91 in Overall Length, 5.5 in H x 3.7 in W Dimensions

Manufacturer PN: P602AL

UPC:  78599163020

Kendall Electric Inc PN: 2771990

Invoice Description:

P-60-2-AL T-B ALUMINUM COVER PLATE


SPEC SHEET

▸ See All in Hydraulic Crimping Tools


How Can We Make This Page Better?

BURNDY® PATMD614V Battery Actuated Self-Contained Hydraulic Crimping Tool, 10 AWG to 500 kcmil Copper, 8 AWG to 350 kcmil Aluminum Crimping, 6 ton Crimping, 20.91 in OAL

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

BURNDY® a leading manufacturer and provider of connector and tooling solutions to the industrial, energy, construction, telecommunications, petrochemical, data center and transportation industries.
BURNDY®, PATMD614V, Hydraulic Crimping Tool, Tool/Kit: Bare Tool, Battery Actuated Self-Contained, Crimping Capacity: 10 AWG to 500 kcmil Copper, 8 AWG to 350 kcmil Aluminum, 6 ton Crimping Force, 7800 psi Operating, Off-the Shelf Connection, 20.91 in Overall Length, 5.5 in H x 3.7 in W Dimensions

Specifications

 Application For copper, aluminum, ACSR, steel, copperweld, alumoweld, 6201, 5005, compressed, compact conductors, 10 AWG solid to 2/0 AWG stranded copper taps, 14 AWG solid to 4/0 AWG aluminum and ACSR taps, 6 AWG to 4/0 AWG ACSR stirrups, overhead full tension deadends, full tension splices, 10 AWG stranded to 4/0 AWG ACSR terminals, 8 AWG to 500 kcmil copper stranded (YA, YA-L, YS, YS-L) installs splices, taps or terminations, 8 AWG to 350 kcmil copper flex, 8 AWG to 350 kcmil aluminum (YA-A and YS-A)
 Brand Name Steel City
 Connection Type Off-the Shelf
 Crimping Capacity 10 AWG to 500 kcmil Copper, 8 AWG to 350 kcmil Aluminum
 Crimping Force 6 ton
 Dimensions 5.5 in H x 3.7 in W
 Manufacturer Part Number PATMD614V
 Operating Pressure 7800 psi
 Overall Length 20.91 in
 PART NUMBER KEYWORDS PATMD614V ; 10722819 ; 781810449813 ; 78181044981 ; 00781810449813
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant
 Tool Kit Bare Tool
 Type Battery Actuated Self-Contained

Features

▪ 10 AWG to 500 kcmil copper, 8 AWG to 350 kcmil aluminum, 14 AWG to 4/0 ACSR crimping capacity
▪ True, one handed operation for advance, retract and hold
▪ Ram holds position when trigger is released to allow the operator to check alignment prior to crimping
▪ Ergonomically balanced tool design helps lessen operator fatigue
▪ Durable high impact formed carrying case
▪ High capacity 2.6 AH Ni-MH batteries provide more crimps per charge
▪ Advance design high speed pump completes a crimp in approximately 2 seconds
▪ Pressure pop-off valve indicated completion of crimp
▪ Interchangeable scissor action crimp jaws allow easier access to tight spaces
▪ Uses standard W and X Burndy® dies already in use
▪ Large hand grip area allows for easier operation with gloves
▪ Refined hydraulic system for ultra performance, speed and reliability
▪ Field proven electronics - ultimate reliability in the harshest environments
▪ Battery actuated crimping tool
▪ Hydraulic self-contained
