Eaton

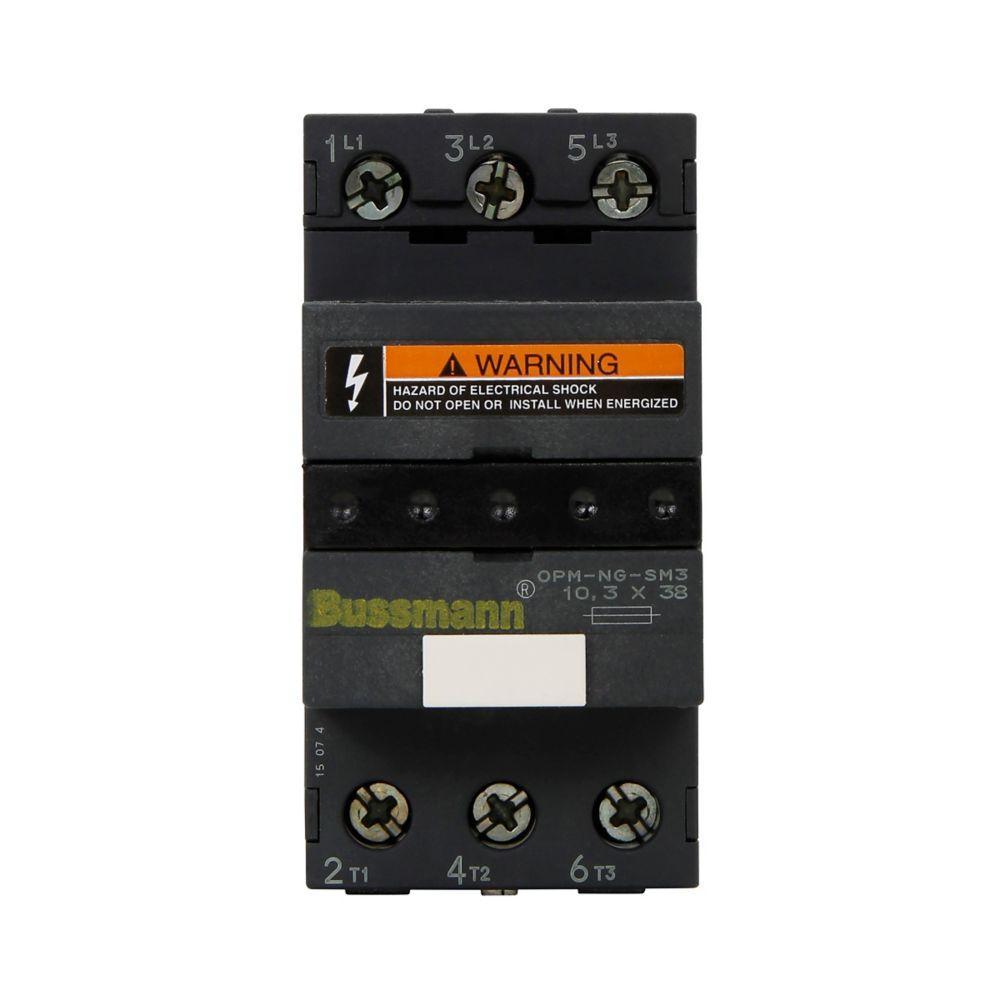

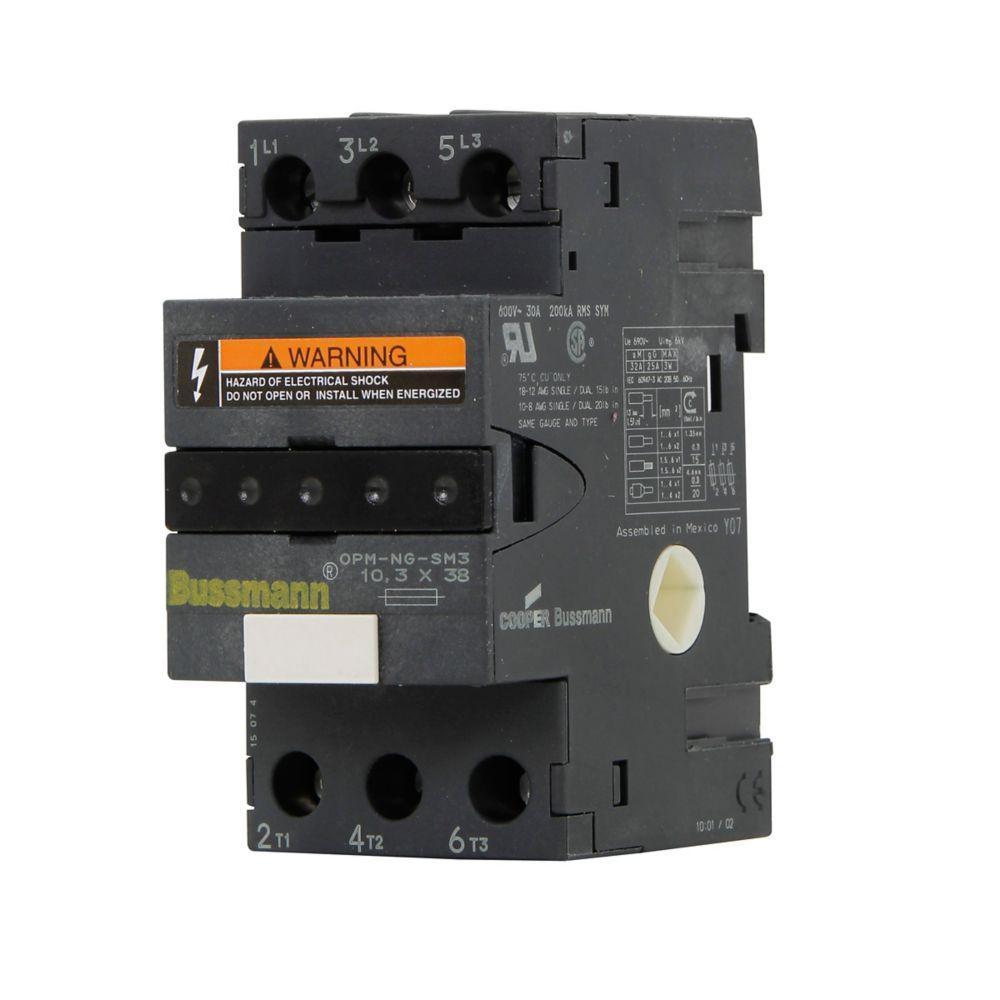

OPM-NG-SM3 BUSS 45MM 3 PHASE FUSE HOLDER (1)

Mouse over image to zoom, click to enlarge

  • OPM-NG-SM3 BUSS 45MM 3 PHASE FUSE HOLDER (1)
  • OPM-NG-SM3 BUSS 45MM 3 PHASE FUSE HOLDER (1)
  • OPM-NG-SM3 BUSS 45MM 3 PHASE FUSE HOLDER (1)

Description: Bussmann OPTIMA® Fuse Holder Module, Overcurrent Protection, Series: OPM, 600/690 V AC, 30/32 A, 3 Pole, Class CC Fuse, 14 to 6 AWG Wire, 13/32 x 1-1/2 in Fuse, DIN Rail/Threaded/Screw Mount, -10 to 65 deg C Operating, 1.8 in Width, 3-1/2 in Height, Thermoplastic

Manufacturer PN: OPM-NG-SM3

UPC:  05171267416

Kendall Electric Inc PN: 2145904

Invoice Description:

OPM-NG-SM3 BUSS 45MM 3 PHASE FUSE HOLDER (1)


SPEC SHEET

How Can We Make This Page Better?

Bussmann OPTIMA® OPM-NG-SM3 Overcurrent Protection Fuse Holder Module, 600/690 V AC, 30/32 A, 3 Poles, Class CC Fuse, 14 to 6 AWG Wire

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann OPTIMA® Fuse Holder Module, Overcurrent Protection, Series: OPM, 600/690 V AC, 30/32 A, 3 Pole, Class CC Fuse, 14 to 6 AWG Wire, 13/32 x 1-1/2 in Fuse, DIN Rail/Threaded/Screw Mount, -10 to 65 deg C Operating, 1.8 in Width, 3-1/2 in Height, Thermoplastic

Specifications

 Amperage Rating 30/32 A
 Application Mass Produced Control Systems, Process Control Systems, Automated Warehouse Systems, Individual Control Circuit, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Fuse Size 13/32 x 1-1/2 in
 Fuse Type Class CC
 Height 3-1/2 in
 Includes Philslot Screws, Pressure Plate, Tin Plated Copper Alloy Clip, Plated Steel Saddle Screw and Stainless Steel DIN Rail Spring
 Manufacturer Part Number OPM-NG-SM3
 Material Thermoplastic
 Mounting Type DIN Rail/Threaded/Screw
 Number of Poles 3
 Operating Temperature -10 to 65 deg C
 PART NUMBER KEYWORDS OPM-NG-SM3 ; OPMNGSM3 ; 7634045 ; 051712674164 ; 51712674164 ; 05171267416 ; 00051712674164
 Series OPM
 Standards/Approvals CE Certified|CSA C22.2 File No. 4248/47235|IEC 60529/60947-3 AC20B|RoHS Compliant|UL 512/4248 File No. E14853 Guide IZLT2
 Type Overcurrent Protection
 Video Links
 Voltage Rating 600/690 V AC
 Width 1.8 in

Features

▪ 45 mm W matches IEC starters
▪ Pressure plate terminations with dual wire rated terminals and optional auxiliary contacts
▪ Integrated collapsible handle and fuse carrier cannot be removed from holder base
▪ Padlockable and IP20 finger safe
▪ For use with KLM, KTK, FNQ, FWA, FWC, C10G, C10M series fuse
