Leviton

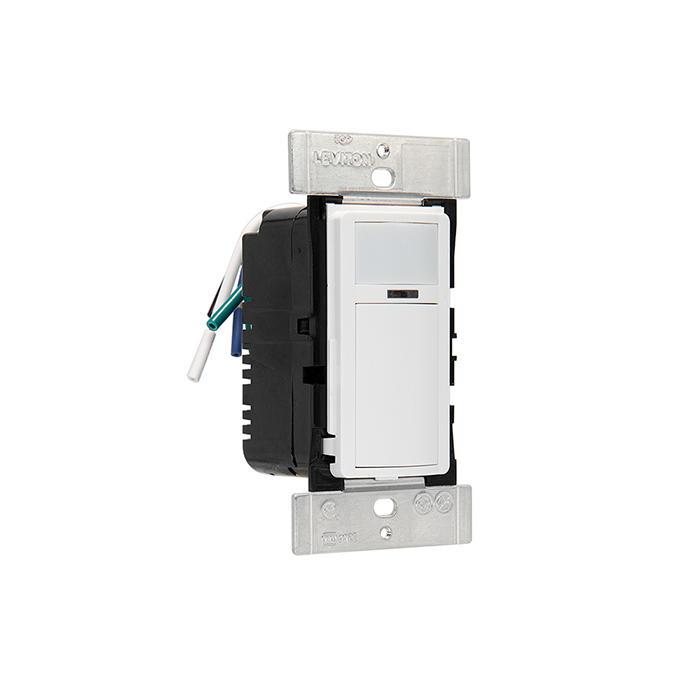

ODSMT-MDW LEVITON SMART WB MT, 120-277VAC, SWITCH, WHITE

Mouse over image to zoom, click to enlarge

  • ODSMT-MDW LEVITON SMART WB MT, 120-277VAC, SWITCH, WHITE
  • ODSMT-MDW LEVITON SMART WB MT, 120-277VAC, SWITCH, WHITE

Description: Leviton®, ODSMT-MDW, Smart Wallbox Sensor, Multi-Tech, 120 to 277 V AC, 20 A, 0.2, 0.3 W Power, Wall Box Occupancy/Vacancy Sensor, 1100 sq-ft Coverage, 180 deg Viewing, LED Lamp, 50/60 Hz Response, IP20 Enclosure, 0 to 40 deg C, White, 4.13 in H x 2.12 in W x 1.86 in D Dimensions

Manufacturer PN: ODSMT-MDW

UPC:  07847700954

Kendall Electric Inc PN: 4828733

Invoice Description:

ODSMT-MDW LEVITON SMART WB MT, 120-277VAC, SWITCH, WHITE


SPEC SHEET

How Can We Make This Page Better?

Leviton® ODSMT-MDW Multi-Tech Smart Wallbox Sensor, 120 to 277 V AC, Wall Box Occupancy/Vacancy Sensor, 1100 sq-ft Coverage, 180 deg Viewing

Log In for Pricing and Availability




Description

Leviton®, ODSMT-MDW, Smart Wallbox Sensor, Multi-Tech, 120 to 277 V AC, 20 A, 0.2, 0.3 W Power, Wall Box Occupancy/Vacancy Sensor, 1100 sq-ft Coverage, 180 deg Viewing, LED Lamp, 50/60 Hz Response, IP20 Enclosure, 0 to 40 deg C, White, 4.13 in H x 2.12 in W x 1.86 in D Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Leviton®
 Color White
 Coverage 1100 sq-ft
 Dimensions 4.13 in H x 2.12 in W x 1.86 in D
 Enclosure IP20
 Lamp Type LED
 Manufacturer Part Number ODSMT-MDW
 Mounting Type Wall
 PART NUMBER KEYWORDS ODSMT-MDW ; ODSMTMDW ; 20864560 ; 078477009543 ; 78477009543 ; 07847700954
 Power Rating 0.2, 0.3 W
 Response Frequency 50/60 Hz
 Sensor Type Wall Box Occupancy/Vacancy
 Standards/Approvals IECC|2022 Title 24, Part 6|ASHRAE 90.1
 Temperature Rating 0 to 40 deg C
 Type Multi-Tech
 Video Links
 Viewing Angle 180 deg
 Voltage Rating 120 to 277 V AC

Features

▪ Can be used to comply with Part 6 occupancy/vacancy sensing, dimming, and manual-ON/auto-OFF requirements
▪ Fits in a standard wallbox and gangable with other units
▪ 180 deg field-of-view provides approximately 1,100 square feet of coverage
▪ Maximum sensing distance in front of the sensor is 30-40 ft and 15-20 ft on either side
▪ Microphonics technology able to detect human activity and does not require direct line-of-sight
▪ Integrated photocell for daylighting hold-OFF
▪ Use the Leviton Push to Pair (P2P) process to create a multi-way system for up to 5 devices
▪ Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth-enabled Android or iOS device
