Hubbell
NV2FG26BSG HUBB FL26 120-277 WALL STD GLOB/GRD 78393605078

Mouse over image to zoom, click to enlarge

  • NV2FG26BSG HUBB FL26 120-277 WALL STD GLOB/GRD 78393605078
  • NV2FG26BSG HUBB FL26 120-277 WALL STD GLOB/GRD 78393605078
  • NV2FG26BSG HUBB FL26 120-277 WALL STD GLOB/GRD 78393605078

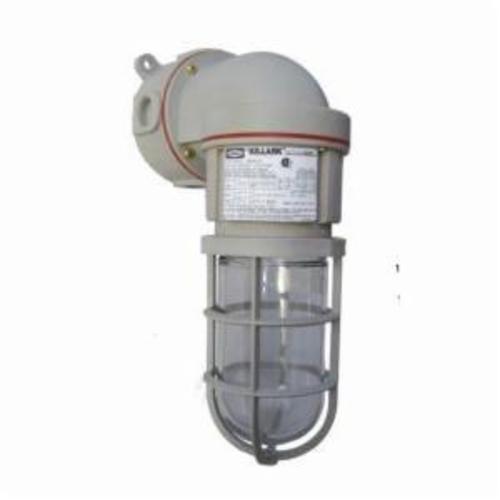

Description: Killark® Wall Mount Fixture, Non-Metallic, Series: NV2, 120 to 277 VAC, 35.7/35.5 W Fixture, 0.302/0.15 A, Fluorescent Lamp, 26 W Lamp, 1 Lamp, 60000 hr Average Life, 3000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Driver Ballast, Frosted Convexed Glass Lens, 2800 Lumens, NEMA 3/4X/IP66 Enclosure, Wall Mounting, Polycarbonate Housing Material, Black Baked Powder Coated Housing Finish, 13.37 in L x 4.53 in W Dimensions

Manufacturer PN: NV2FG26BSG

UPC:  78393605078

Kendall Electric Inc PN: 2899238

Invoice Description:

NV2FG26BSG HUBB FL26 120-277 WALL STD GLOB/GRD 78393605078


SPEC SHEET

▸ See All in Explosion Proof Outdoor Lighting


How Can We Make This Page Better?

Killark® NV2FG26BSG Non-Metallic Wall Mount Fixture With Clear Globe and Guard, (1) Fluorescent Lamp, 35.7/35.5 W Fixture, 120 to 277 VAC, Black Baked Powder Coated Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Indy 8 in L-Series LED cylinders are part of the latest generation of Indy L-Series luminaires, offering a fully coordinated family of commercial grade quality luminaires, from LED color rendering to aperture sizes and trim finishes. These cylinders can be surface, cable, pendant or wall mounted. They are the energy efficient choice for a wide range of commercial applications.
Killark® Wall Mount Fixture, Non-Metallic, Series: NV2, 120 to 277 VAC, 35.7/35.5 W Fixture, 0.302/0.15 A, Fluorescent Lamp, 26 W Lamp, 1 Lamp, 60000 hr Average Life, 3000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Driver Ballast, Frosted Convexed Glass Lens, 2800 Lumens, NEMA 3/4X/IP66 Enclosure, Wall Mounting, Polycarbonate Housing Material, Black Baked Powder Coated Housing Finish, 13.37 in L x 4.53 in W Dimensions

Specifications

 Amperage Rating 0.302/0.15 A
 Application Manufacturing Plants, Chemical, Petrochemical Processing Facilities, Sewage Treatment Plants, Off-shore and Dockside Installations, Agricultural, Commercial, Industrial, Mining, Marine Facilities Applications
 Average Life 60000 hr
 Ballast Type 0 to 10 V Dimmable Driver
 Brand Name Killark®
 Color Rendering Index CRI 80
 Color Temperature 3000 K

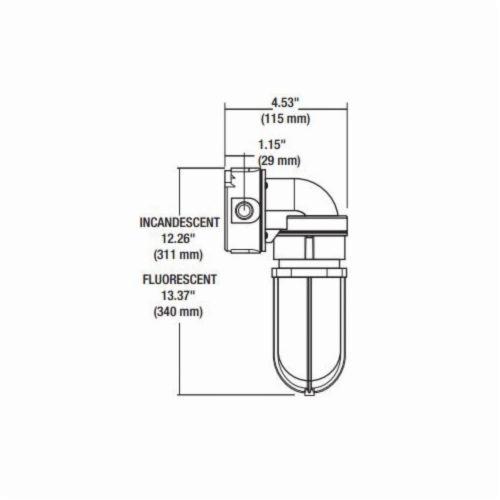

 Dimensions 13.37 in L x 4.53 in W
 Enclosure NEMA 3/4X/IP66
 Fixture Wattage 35.7/35.5 W
 Housing Finish Black Baked Powder Coated
 Housing Material Polycarbonate
 Lamp Wattage 26 W
 Lumens 2800 Lumens
 Manufacturer Part Number NV2FG26BSG
 Mounting Type Wall
 Number of Lamps 1
 Series NV2
 Standards/Approvals CSA C22.2|137-M1981|UL 11598|844
 Type Non-Metallic
 Voltage Rating 120 to 277 V AC

Features

▪ NV2 series non-metallic light fixtures combine an out-standing balance of strength, stiffness, toughness and electrical properties
▪ Energy and labor saving fluorescent or incandescent models
▪ Molded from 30% glass-filled thermoset polyester for high strength
