Schneider Electric
NSYCU1K52P4RDG SQD CU DG R 1.5KW 2P400/460V

Mouse over image to zoom, click to enlarge

  • NSYCU1K52P4RDG SQD CU DG R 1.5KW 2P400/460V
  • NSYCU1K52P4RDG SQD CU DG R 1.5KW 2P400/460V
  • NSYCU1K52P4RDG SQD CU DG R 1.5KW 2P400/460V
  • NSYCU1K52P4RDG SQD CU DG R 1.5KW 2P400/460V
  • NSYCU1K52P4RDG SQD CU DG R 1.5KW 2P400/460V

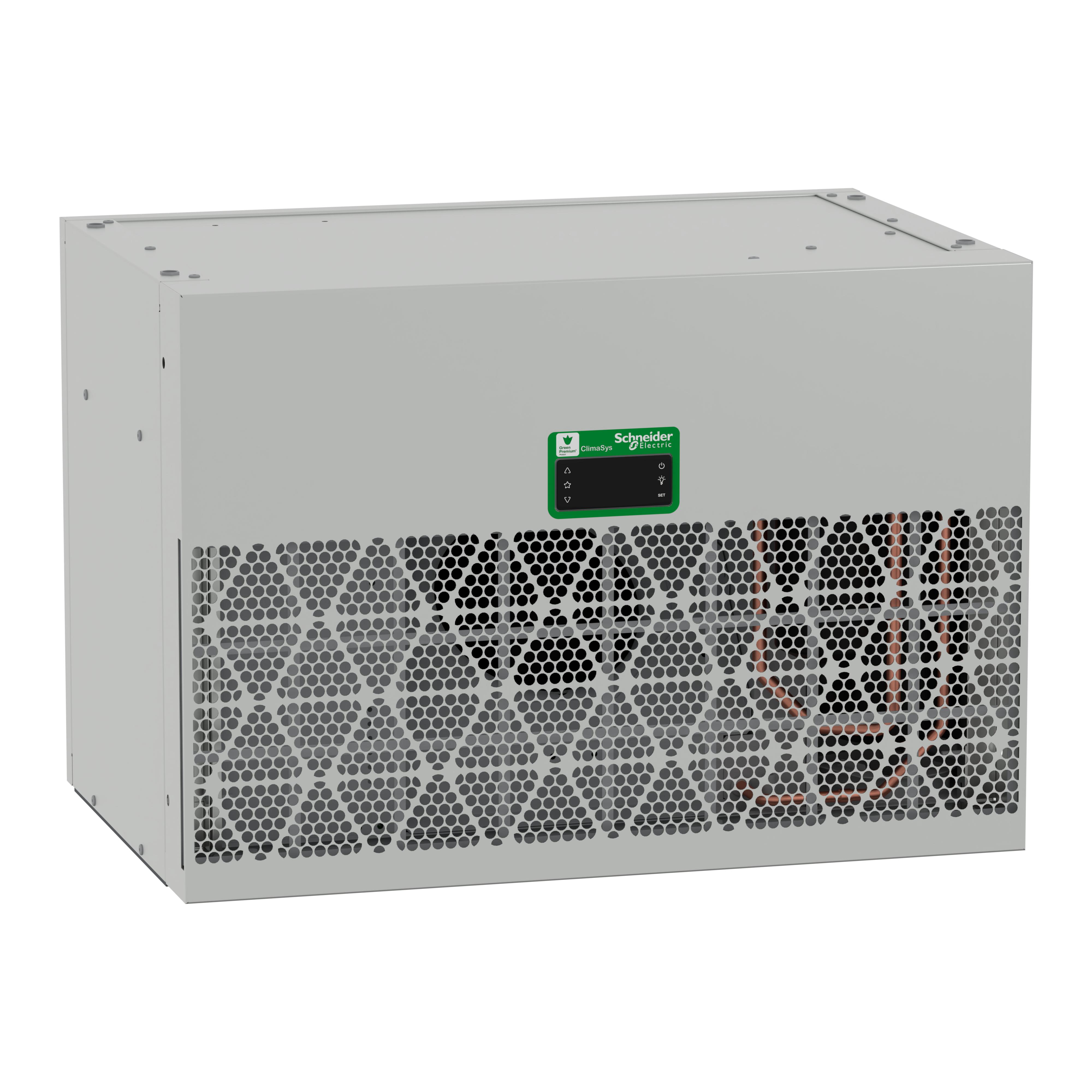

Description: Schneider Electric, NSYCU1K52P4RDG, Cooling Unit, 400, 460 V, 3 A, 1550 W Power, 50, 60 Hz Frequency, IP54 Enclosure, 850 cu-m/hr Internal circuit, 850 cu-m/hr External circuit Flow Rate, Electronic Control, 20 to 50 deg C, Roof Mounting, Steel, Gray, 16.2 in H x 23.4 in W x 15.6 in D Dimensions

Manufacturer PN: NSYCU1K52P4RDG

UPC:  60648605545

Kendall Electric Inc PN: 4898730

Invoice Description:

NSYCU1K52P4RDG SQD CU DG R 1.5KW 2P400/460V


SPEC SHEET

▸ See All in Enclosure Coolers


How Can We Make This Page Better?

Schneider Electric NSYCU1K52P4RDG Cooling Unit, 400, 460 V, 3 A, 850 cu-m/hr Internal circuit, 850 cu-m/hr External circuit Flow Rate, IP54 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This new Roof Connected Cooling Unit, designed by Schneider Electric, is perfectly adapted for Automation & Control and Electrical distribution panels, installed in office and industrial indoor environments. It’s smart, compact, and reliable. For international business purpose, it’s compliant to IEC14511 and UL60335-1 & UL60335-2-40. This cooling device is made by Steel, offering an internal IP54. Its cooling capacity L35-35 is 1550W according to EN 14511. Its power voltage is 400/460V, 50/60Hz, 2 phases. Its native Modbus connectivity is 100% compatible with any Scada system. Remote alarms and operation data makes manufacturing process more dependable with fewer downtimes, with quicker and easier problem fixing, and electrical components expended lifespan. The new Connected Cooling Units are also associated with Software’s and Services, like ProClima Web or IGE XAO suits. By using these tools, in only few minutes, it’s possible to select and optimize one Thermal management solution, and to design one panel (with its enclosures, devices and Thermal solution), with 3D and 2D drawings. Also, the Schneider Electric EcoStruxure Apps and analytics facilitates process supervision with real life data and action recommendations for more efficient operation and maintenance (preventive and predictive).
Schneider Electric, NSYCU1K52P4RDG, Cooling Unit, 400, 460 V, 3 A, 1550 W Power, 50, 60 Hz Frequency, IP54 Enclosure, 850 cu-m/hr Internal circuit, 850 cu-m/hr External circuit Flow Rate, Electronic Control, 20 to 50 deg C, Roof Mounting, Steel, Gray, 16.2 in H x 23.4 in W x 15.6 in D Dimensions

Specifications

 Amperage Rating 3 A
 Brand Name Square D
 Color Gray
 Control Type Electronic

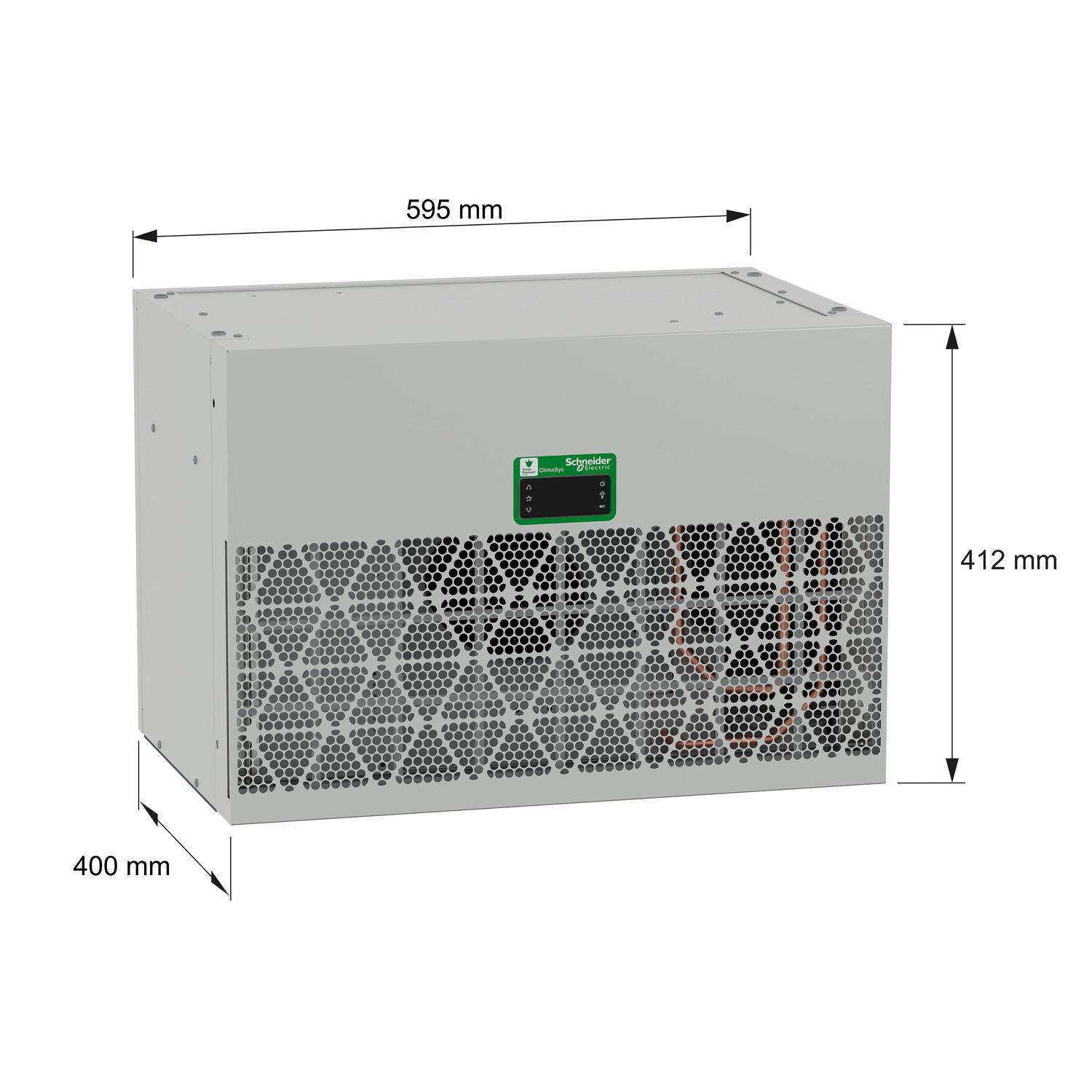

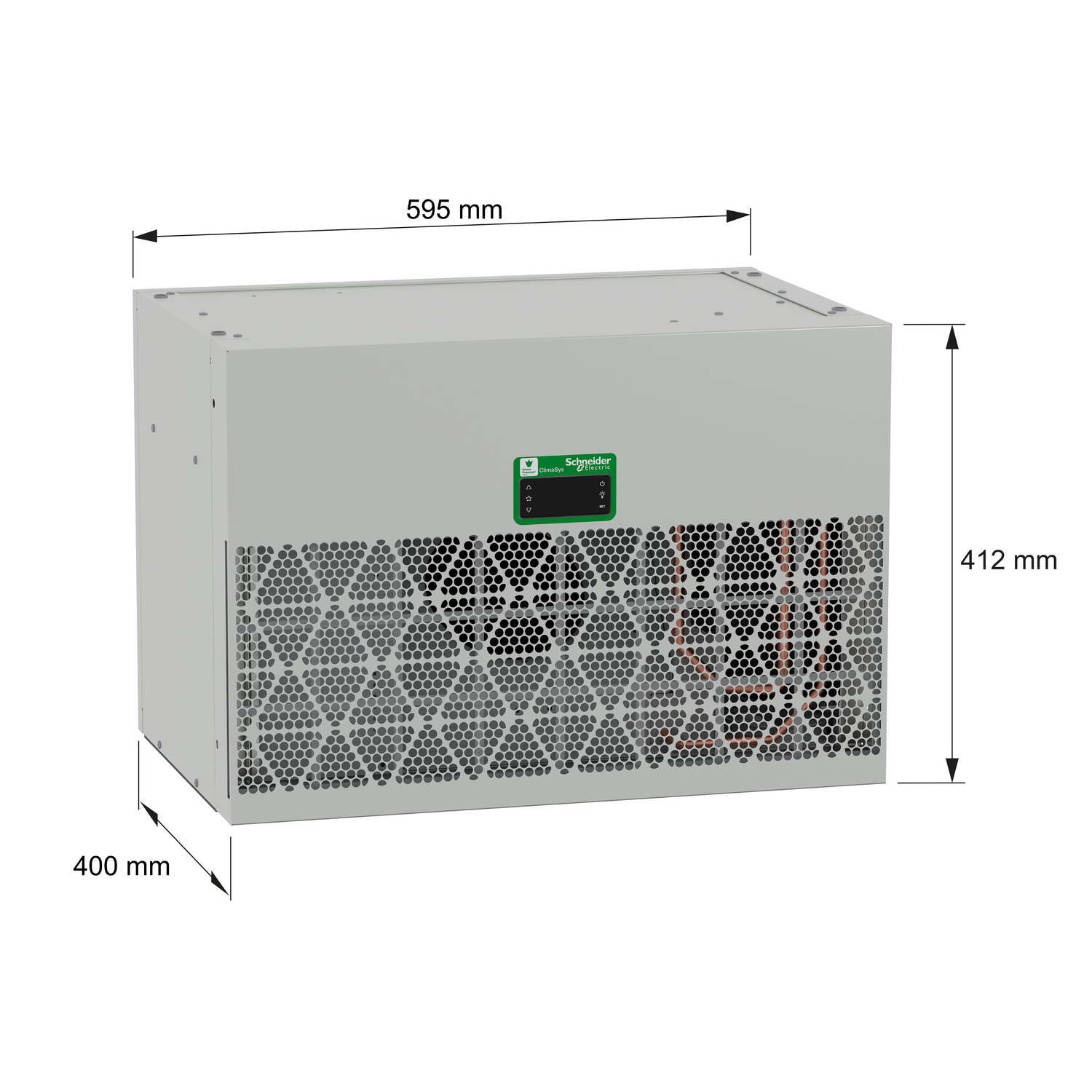

 Dimensions 16.2 in H x 23.4 in W x 15.6 in D
 Enclosure IP54
 Flow Rate 850 cu-m/hr Internal circuit, 850 cu-m/hr External circuit
 Frequency Rating 50, 60 Hz
 Manufacturer Part Number NSYCU1K52P4RDG
 Material Steel
 Mounting Type Roof
 PART NUMBER KEYWORDS NSYCU1K52P4RDG ; 21097820 ; 3606486055458
 Power Rating 1550 W
 Standards/Approvals IP54/24|RoHS Compliant|EN/ISO 12100|EN 60335-1|EN 60335-2-40|EN 61000-3-2|EN 61000-3-3|EN 61000-6-2|EN 61000-6-3|EN/IEC 63000:2018|EN 14511|UL Listed
 Temperature Rating 20 to 50 deg C
 Voltage Rating 400, 460 V

Features

▪ Alarm, operation and setting info available remotely and locally
▪ Simple, open and easy, native connectivity with Modbus RTU communication
▪ Electronic thermostat with touch screen display
▪ Unique combination of optimized Energy Efficiency Ratio and reduced sizes and weight
▪ Easy product selection with ProClima Web associated with SEE Electrical
