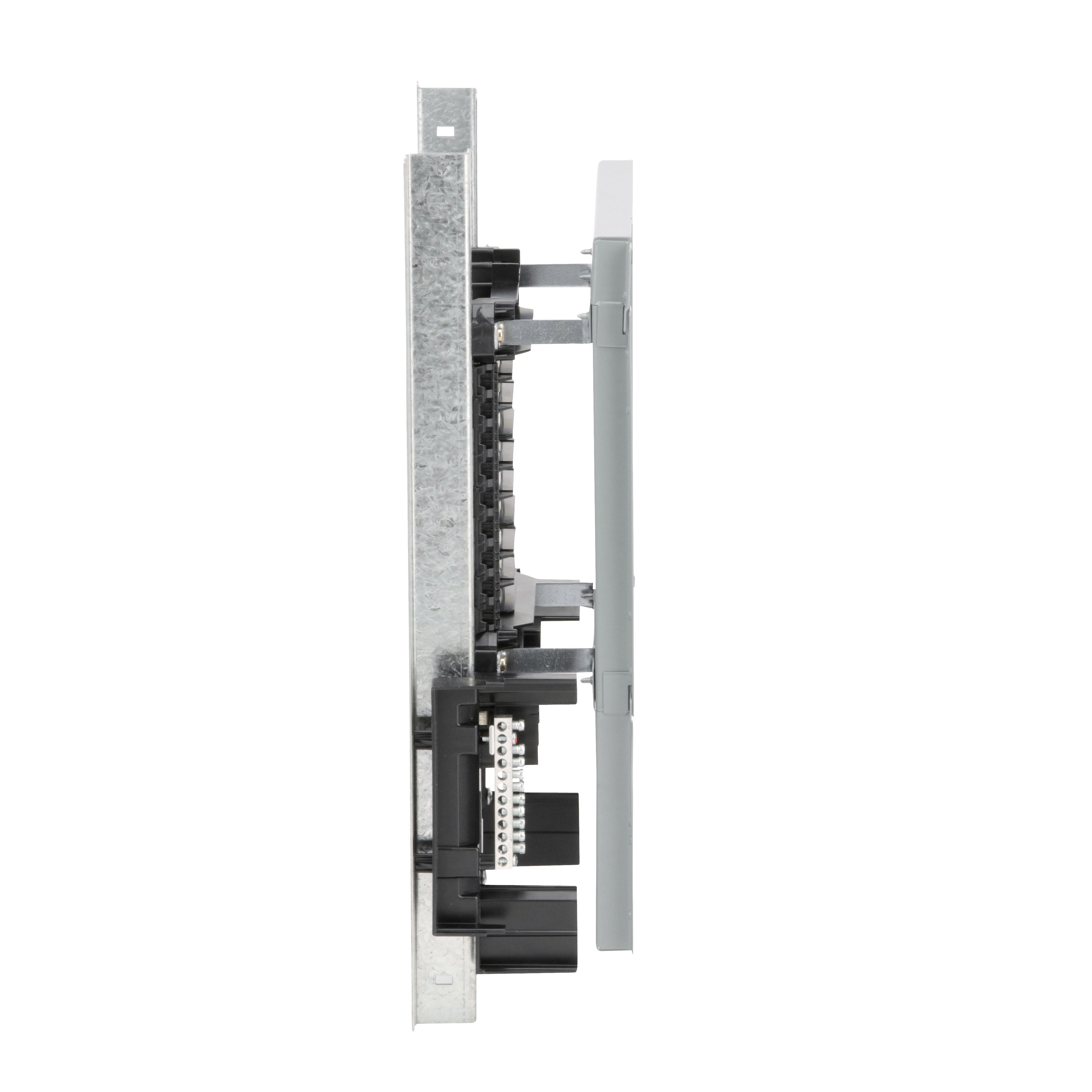

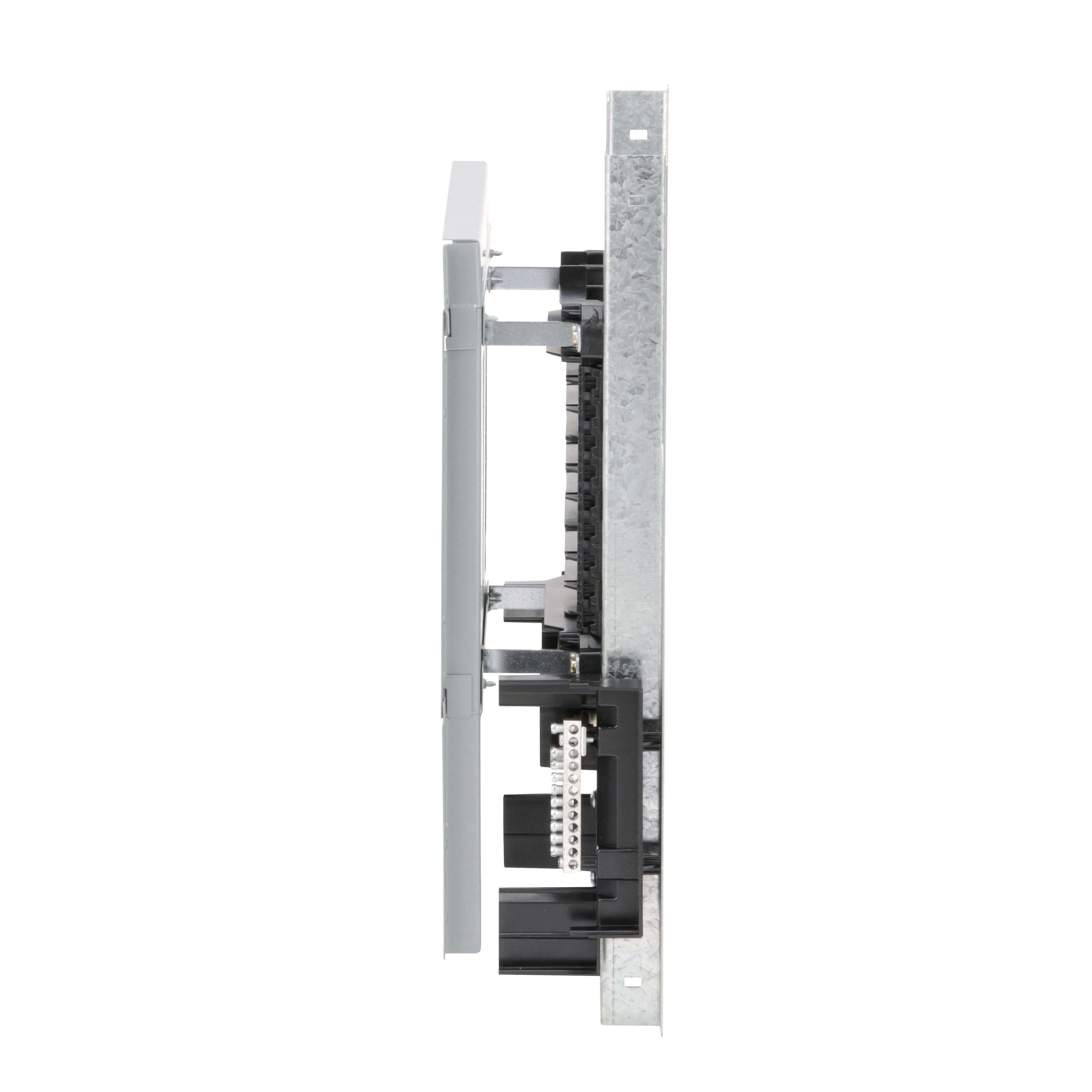

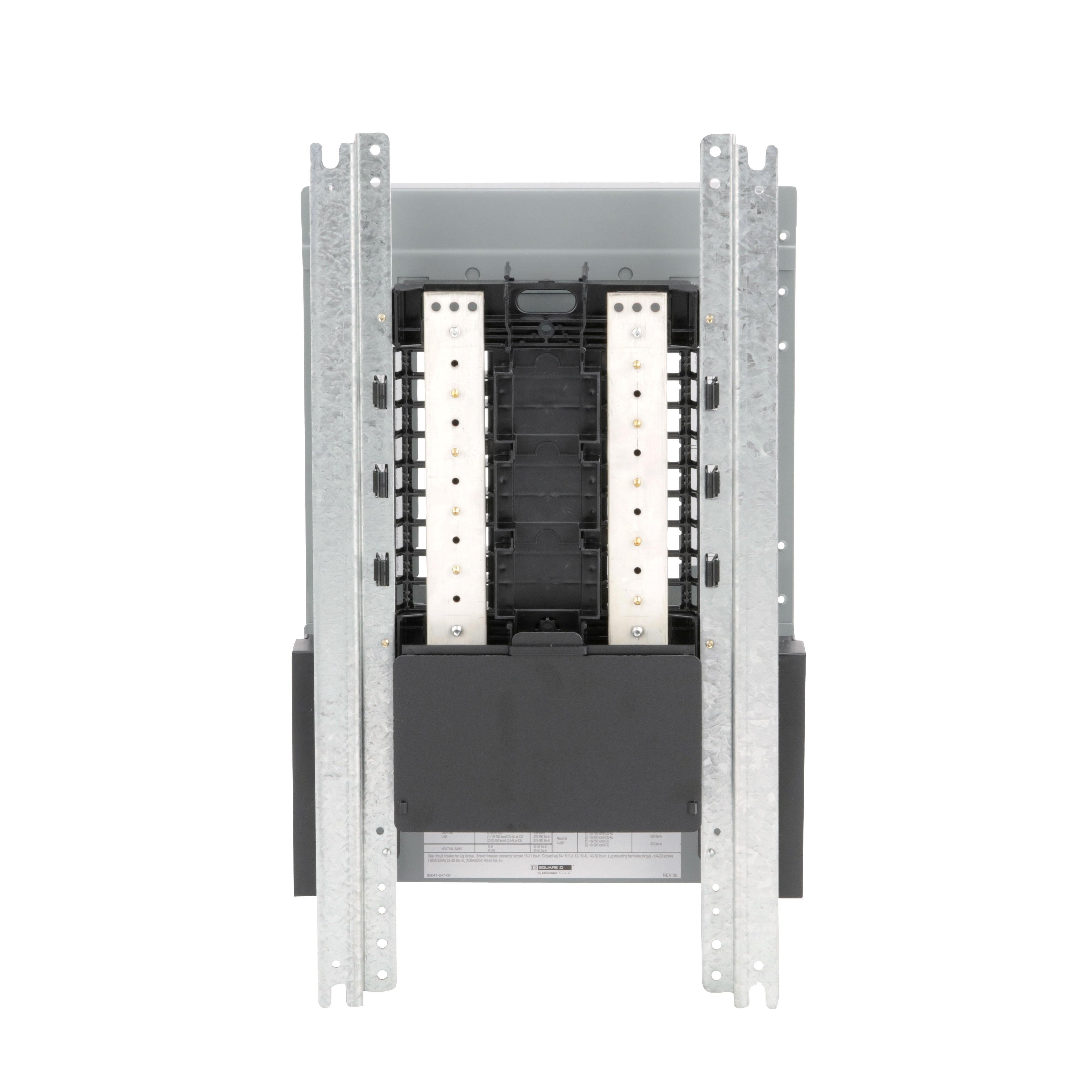

Description: Square D™ Panelboard Interior, 1-Phase, Series: NQ Series, 240 V AC/48 V DC, 100 A, 18 Spaces, Short Circuit Current Rating: 100000 A, QHB/QOB-VH/QOB Breaker, 3-Wire Wiring Configuration, Silver Plated Copper Bus, Panel Mount, NEMA 1, Copper Housing, 20 in W x 5-3/4 in D x 26 in H

Manufacturer PN: NQ18L1C

UPC:  78590150199

Kendall Electric Inc PN: 4000204

Invoice Description:

NQ18L1C SQD PNLBD INT NQ 100A MLO


SPEC SHEET

How Can We Make This Page Better?

Square D™ NQ18L1C NQ Series 1-Phase Panelboard Interior, 240 V AC/48 V DC, 100 A, 18 Spaces, 100000 A SCCR

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 100A for 240VAC and 48VDC, has a plated copper bus, and 18 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.
Square D™ Panelboard Interior, 1-Phase, Series: NQ Series, 240 V AC/48 V DC, 100 A, 18 Spaces, Short Circuit Current Rating: 100000 A, QHB/QOB-VH/QOB Breaker, 3-Wire Wiring Configuration, Silver Plated Copper Bus, Panel Mount, NEMA 1, Copper Housing, 20 in W x 5-3/4 in D x 26 in H

Specifications

 Amperage Rating 100 A
 Application Lighting and Distribution Applications
 Brand Name Square D
 Breaker Type QHB/QOB-VH/QOB
 Bus Material Silver Plated Copper
 Dimensions 20 in W x 5-3/4 in D x 26 in H
 Enclosure NEMA 1
 Housing Material Copper
 Manufacturer Part Number NQ18L1C
 Mounting Type Panel
 Number of Spaces 18
 PART NUMBER KEYWORDS NQ18L1C ; 9889465 ; 785901501992 ; 78590150199 ; 00785901501992 ; 0785901501992
 Series NQ Series
 Short Circuit Current Rating 100000 A
 Standards/Approvals RoHS Compliant|UL 67|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
 Type 1-Phase
 Video Links
 Voltage Rating 240 V AC/48 V DC
 Wiring Configuration 3-Wire

Features

▪ Ready to install interior assembly
▪ Available as main lug or main breaker
▪ Interiors accept QO(VH) plug in and QOB(VH) bolt on circuit breakers
▪ Interiors are field convertible to top or bottom feed
▪ Modular construction accepts field installable accessories
