Eaton
NON450 BUSS 250V CLASS H FUSE

Mouse over image to zoom, click to enlarge

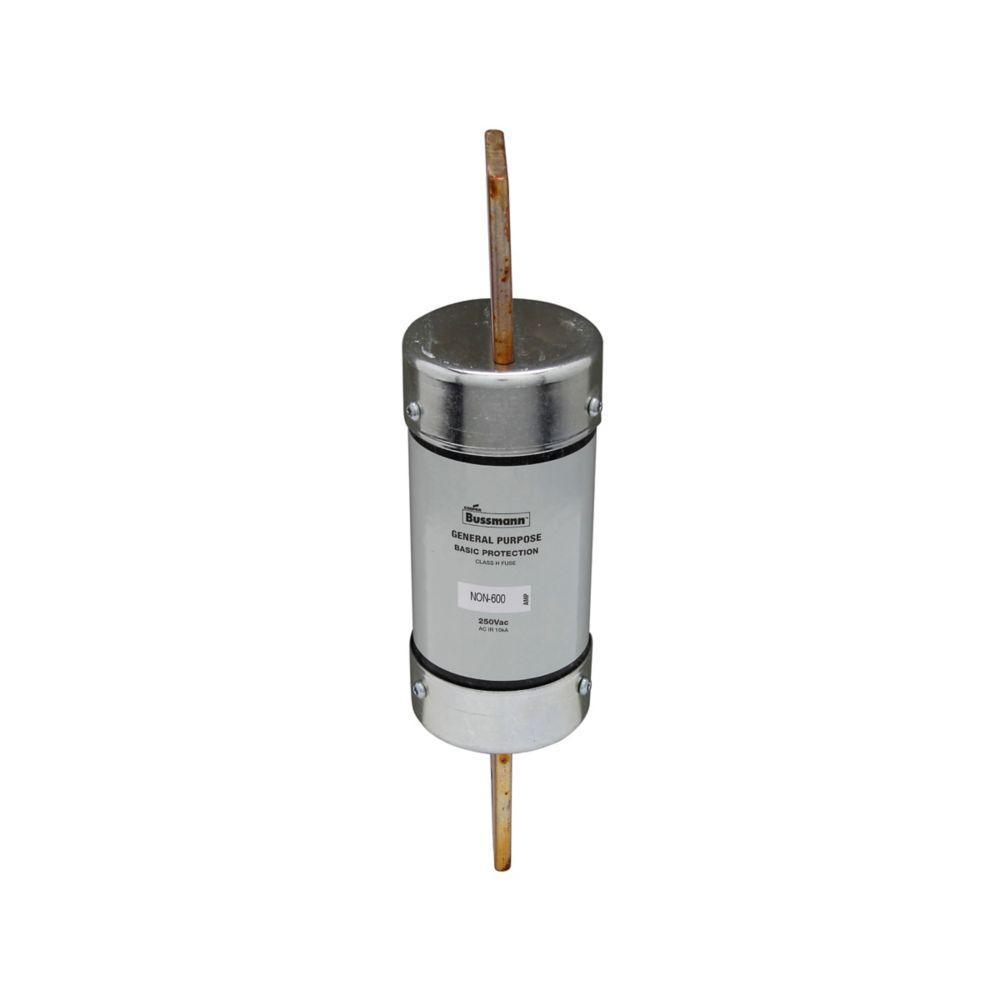

  • NON450 BUSS 250V CLASS H FUSE
  • NON450 BUSS 250V CLASS H FUSE

Description: Bussmann Fuse, One-Time Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 450 A, 250 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, 2.59 in Dia x 10.38 in L Body Size

Manufacturer PN: NON-450

UPC:  05171230450

Kendall Electric Inc PN: 23047

Invoice Description:

NON450 BUSS 250V CLASS H FUSE


SPEC SHEET

▸ See All in One-Time Fuses


How Can We Make This Page Better?

Bussmann NON-450 One-Time Non-Current Limiting Fuse, 450 A, 250 VAC, 10 kAIC Interrupt, Class: H, Cartridge Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann Fuse, One-Time Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 450 A, 250 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, 2.59 in Dia x 10.38 in L Body Size

Specifications

 Amperage Rating 450 A
 Application Industrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations Applications
 Body Size 2.59 in Dia x 10.38 in L
 Body Type Cartridge
 Brand Name Bussmann
 Class H
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number NON-450
 Mounting Type Holder
 Rejection Non Rejection Rejection
 Series NON
 Standards/Approvals CE Certified|CSA Class 1421-01 File No. 53787|UL 248-6 Guide No. JDDZ File No. E4273
 Terminal Type Blade End
 Type One-Time Non-Current Limiting
 Video Links
 Voltage Rating 250 VAC

Features

▪ Original fuse providing circuit protection
▪ Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
▪ Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
▪ Use Bussmann advanced protection Fusetron™ FRN-R or ultimate protection Low-Peak™ LPN-RK dual element, time delay fuses
▪ For general purpose circuits, size at amp rating of circuit
▪ For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
▪ One-time fuse
