Schneider Electric
  • NF454L2C SQD PANELBOARD INTERIOR NF
  • NF454L2C SQD PANELBOARD INTERIOR NF
  • NF454L2C SQD PANELBOARD INTERIOR NF
  • NF454L2C SQD PANELBOARD INTERIOR NF

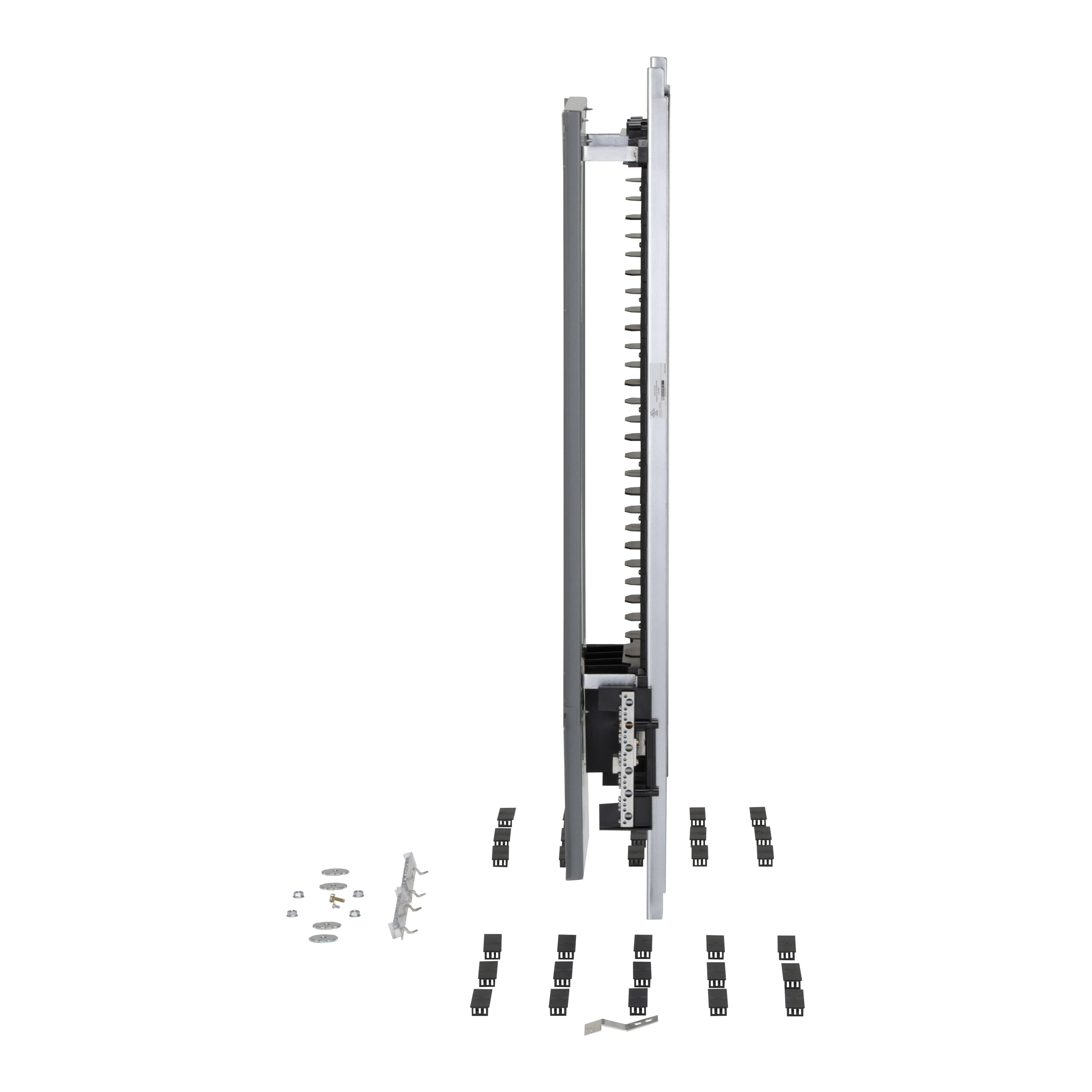

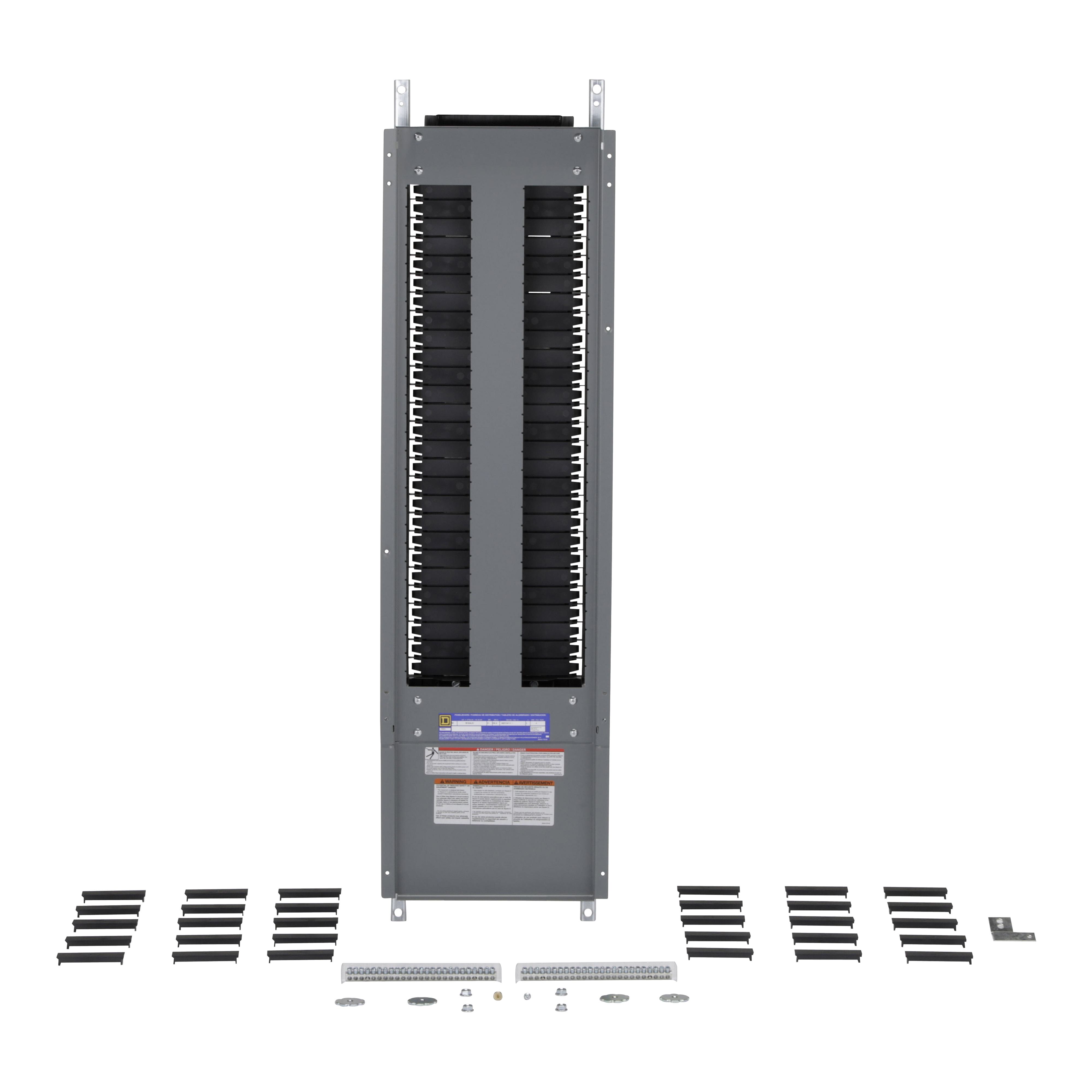

Description: Square D™ Panelboard Interior, Series: NF Series, 480Y/277 VAC, 600Y/347 VAC, 250 A, 54 Spaces, EDB/EDG/EDJ Breaker, Bolt-On Breaker Mounting, 3-Phase, 4-Wire Wiring Configuration, Copper Bus, Panel Mounting, NEMA 1/3R/5/12 Enclosure, 56 in H x 20 in W Dimensions

Manufacturer PN: NF454L2C

UPC:  78590140120

Kendall Electric Inc PN: 3961146

Invoice Description:

NF454L2C SQD PANELBOARD INTERIOR NF


SPEC SHEET

How Can We Make This Page Better?

Square D™ NF454L2C Panelboard Interior, 480Y/277 VAC, 600Y/347 VAC, 250 A, 54 Spaces

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch circuit breakers, integral main circuit breakers, bus mounted SPDs, and a wide variety of ready to install accessory kits. NF Panelboard interiors are field convertible to support top or bottom feed. This main lugs interior is rated 250A for 600Y/347VAC, has a plated copper bus, and 54 pole spaces. NF Panelboards are convertible from main lugs to main circuit breaker. NF Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NF Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NF panelboard interior is UL listed for applications in the USA and Canada. Interior accepts ECB, EDB, EGB, and EJB bolt-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. Kits available to replace standard main mechanical lugs with compression lugs, sub-feed lugs, or a vertically mounted main circuit breaker. NF Panelboard interiors are available with plated aluminum or copper bus. Standard 100% rated neutrals accept aluminum and copper wire; field installable kits support 200% rated or copper neutral assembly requirements. NF Panelboards may be used in voltage systems up to 600Y/347VAC.
Square D™ Panelboard Interior, Series: NF Series, 480Y/277 VAC, 600Y/347 VAC, 250 A, 54 Spaces, EDB/EDG/EDJ Breaker, Bolt-On Breaker Mounting, 3-Phase, 4-Wire Wiring Configuration, Copper Bus, Panel Mounting, NEMA 1/3R/5/12 Enclosure, 56 in H x 20 in W Dimensions

Specifications

 Amperage Rating 250 A
 Application For main lug load center
 Brand Name Square D
 Breaker Mounting Bolt-On
 Breaker Type EDB/EDG/EDJ
 Bus Material Copper
 Dimensions 56 in H x 20 in W
 Enclosure NEMA 1/3R/5/12
 Manufacturer Part Number NF454L2C
 Mounting Type Panel
 Number of Spaces 54
 PART NUMBER KEYWORDS NF454L2C ; 8028361 ; 785901401209 ; 78590140120 ; 00785901401209 ; 0785901401209
 Series NF Series
 Standards/Approvals RoHS Compliant|UL 67|CSA C22.2|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
 Voltage Rating 480Y to 277/600Y to 347 V AC
 Wiring Configuration 3-Phase, 4-Wire

Features

▪ Ready to install interior assembly
▪ Field convertible to top or bottom feed
▪ Accepts bolt-on EDB, EGB, and EJB miniature circuit breakers
▪ 100% rated neutrals standard (accept Al and Cu wire), field installable kits for 200% rated or Cu neutral
▪ Kits for compression and subfeed lugs or vertically mounted main circuit breaker
