Schneider Electric
  • NF430L4C SQD PANELBOARD INTERIOR
  • NF430L4C SQD PANELBOARD INTERIOR
  • NF430L4C SQD PANELBOARD INTERIOR
  • NF430L4C SQD PANELBOARD INTERIOR

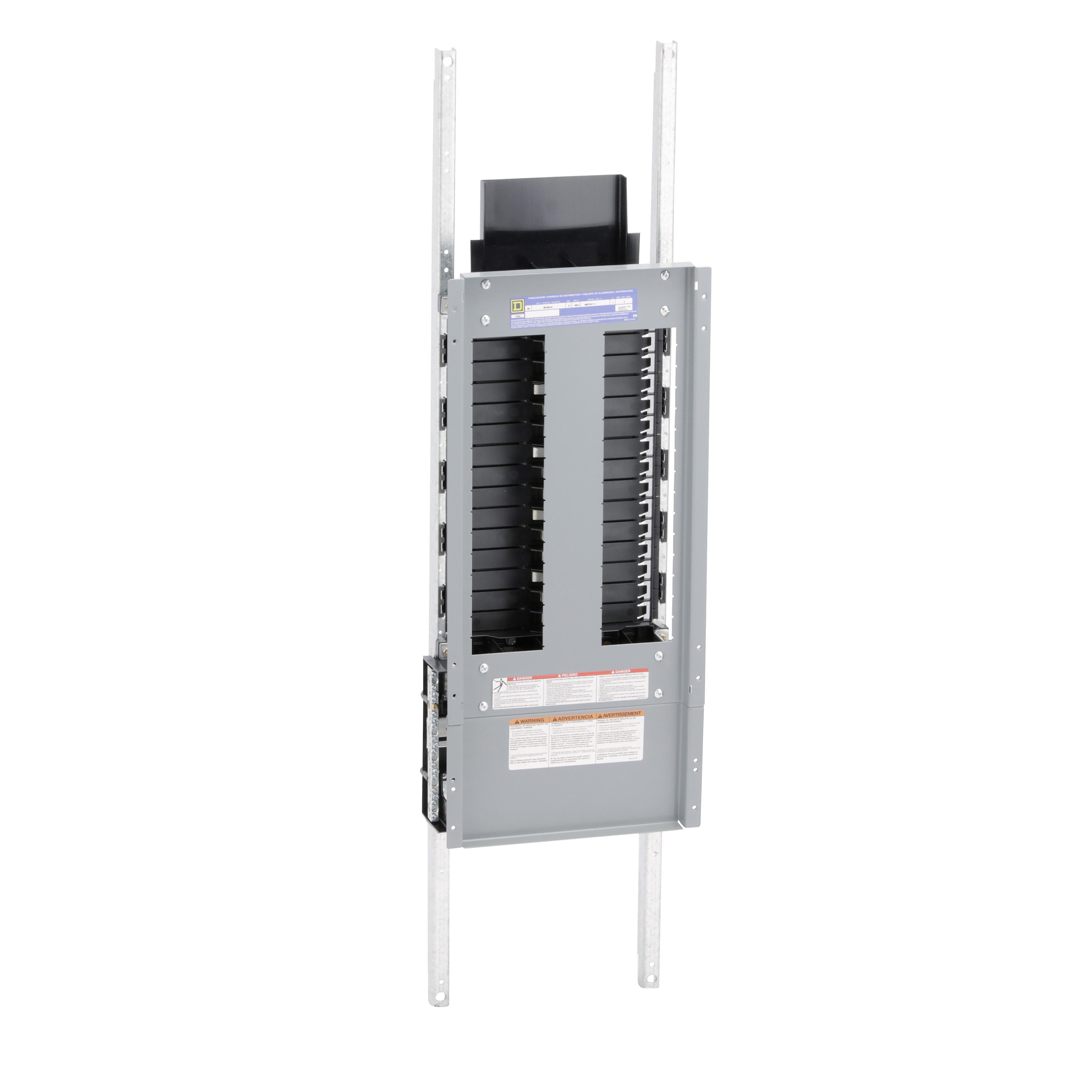

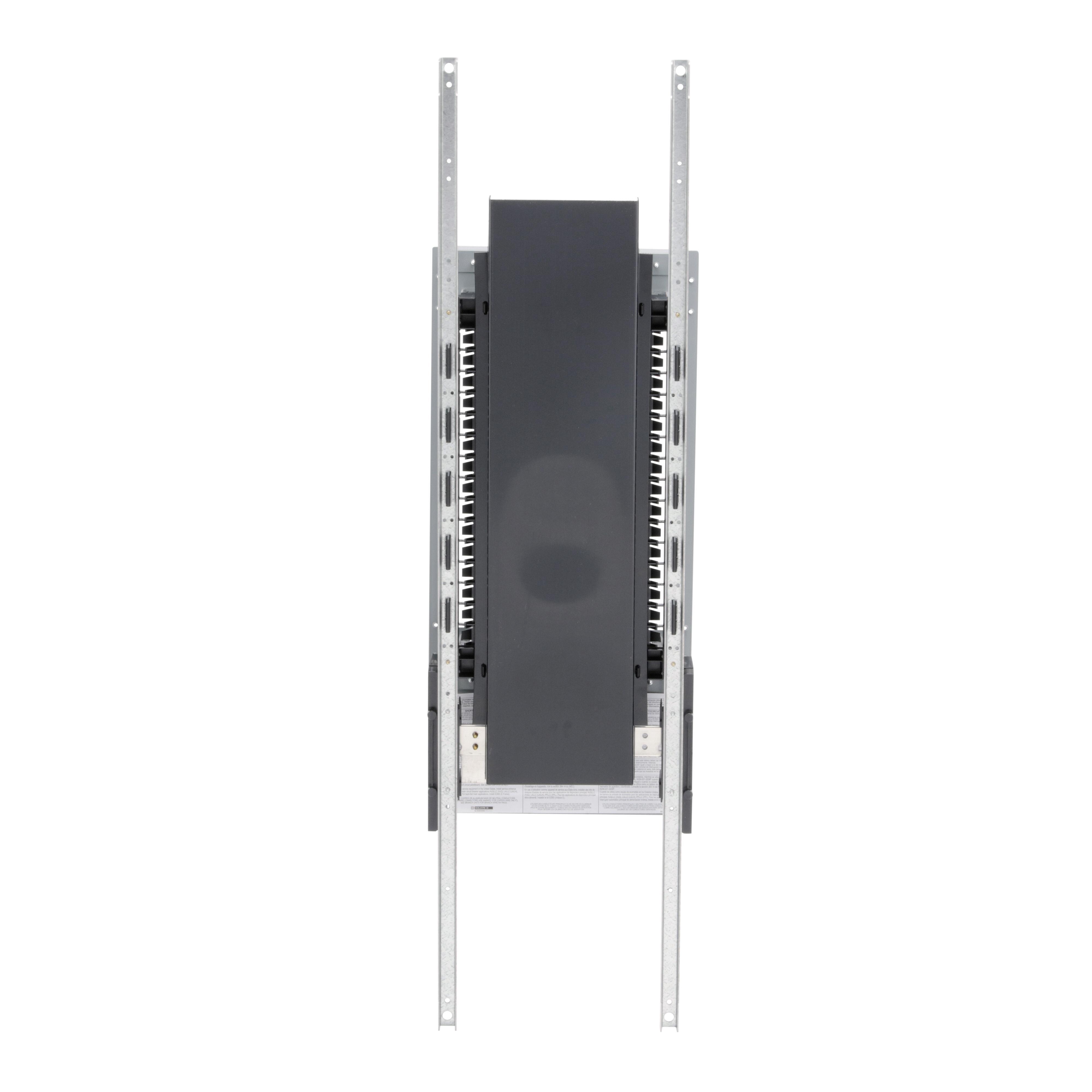

Description: Square D™ Panelboard Interior, 3-Phase Bottom, Series: NF Series, 480Y/277 VAC, 600Y/347 VAC, 400 A, 30 Spaces, Short Circuit Current Rating: 100 kA, EDB/LAL/LHL Breaker, 4-Wire Wiring Configuration, Copper Bus, Panel Mount, NEMA 1/3R/5/12, Copper Housing, 10-1/2 in W x 5-3/4 in D x 50 in H

Manufacturer PN: NF430L4C

UPC:  78590187150

Kendall Electric Inc PN: 3961629

Invoice Description:

NF430L4C SQD PANELBOARD INTERIOR


SPEC SHEET

▸ See All in Panelboard Interiors


How Can We Make This Page Better?

Square D™ NF430L4C NF Series 3-Phase Bottom Panelboard Interior, 480Y/277 VAC, 600Y/347 VAC, 400 A, 30 Spaces, 100 kA SCCR

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch circuit breakers, integral main circuit breakers, bus mounted SPDs, and a wide variety of ready to install accessory kits. NF Panelboard interiors are field convertible to support top or bottom feed. This main lugs interior is rated 400A for 600Y/347VAC, has a plated copper bus, and 30 pole spaces. NF Panelboards are convertible from main lugs to main circuit breaker. NF Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NF Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NF panelboard interior is UL listed for applications in the USA and Canada. Interior accepts ECB, EDB, EGB, and EJB bolt-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. Kits available to replace standard main mechanical lugs with compression lugs, sub-feed lugs, or a vertically mounted main circuit breaker. NF Panelboard interiors are available with plated aluminum or copper bus. Standard 100% rated neutrals accept aluminum and copper wire; field installable kits support 200% rated or copper neutral assembly requirements. NF Panelboards may be used in voltage systems up to 600Y/347VAC.
Square D™ Panelboard Interior, 3-Phase Bottom, Series: NF Series, 480Y/277 VAC, 600Y/347 VAC, 400 A, 30 Spaces, Short Circuit Current Rating: 100 kA, EDB/LAL/LHL Breaker, 4-Wire Wiring Configuration, Copper Bus, Panel Mount, NEMA 1/3R/5/12, Copper Housing, 10-1/2 in W x 5-3/4 in D x 50 in H

Specifications

 Amperage Rating 400 A
 Brand Name Square D
 Breaker Type EDB/LAL/LHL
 Bus Material Copper
 Dimensions 10-1/2 in W x 5-3/4 in D x 50 in H
 Enclosure NEMA 1/3R/5/12
 Housing Material Copper
 Manufacturer Part Number NF430L4C
 Mounting Type Panel
 Number of Spaces 30
 PART NUMBER KEYWORDS NF430L4C ; 8071033 ; 785901871507 ; 78590187150 ; 00785901871507 ; 0785901871507
 Series NF Series
 Short Circuit Current Rating 100 kA
 Standards/Approvals RoHS Compliant|UL 67|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
 Type 3-Phase Bottom
 Voltage Rating 480Y to 277/600Y to 347 V AC
 Wiring Configuration 4-Wire

Features

▪ Ready to install interior assembly
▪ Field convertible to top or bottom feed
▪ Accepts bolt-on EDB, EGB, and EJB miniature circuit breakers
▪ 100% rated neutrals standard (accept Al and Cu wire), field installable kits for 200% rated or Cu neutral
▪ Kits for compression and subfeed lugs or vertically mounted main circuit breaker
