ABB

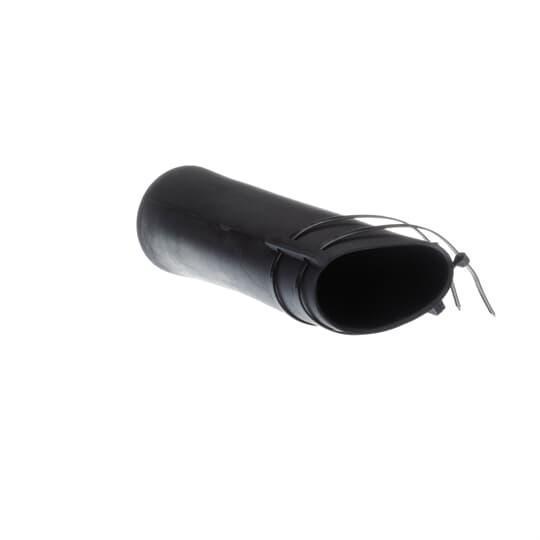

MSC500 T&B INSULATOR SPLICE

Mouse over image to zoom, click to enlarge

  • MSC500 T&B INSULATOR SPLICE
  • MSC500 T&B INSULATOR SPLICE
  • MSC500 T&B INSULATOR SPLICE
  • MSC500 T&B INSULATOR SPLICE

Description: Shrink-Kon® Motor Stub Splice Insulator, 600 VAC, 350 to 500 kcmil Wire, 1-3/4 in Bolt Length, Neoprene Elastomer, Black, 2.562 in Dia x 8.875 in L Dimensions

Manufacturer PN: MSC500

UPC:  78621081774

Kendall Electric Inc PN: 2106385

Invoice Description:

MSC500 T&B INSULATOR SPLICE


SPEC SHEET

▸ See All in Motor Stub Insulators


How Can We Make This Page Better?

Shrink-Kon® MSC500 Motor Stub Splice Insulator With Insulating Cover, 600 VAC, 350 to 500 kcmil Wire, 1-3/4 in L Bolt, Neoprene Elastomer

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

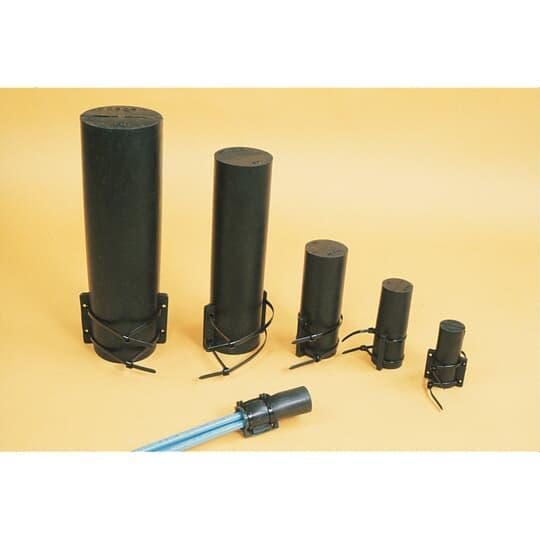

This innovative product has been designed to insulate motor stub splices quickly, easily, and dependably. It consists of a boot-type insulator with integral Ty-Rap® cable ties. To install, simply position the insulator over the bolted splice and tighten the cable ties. That all there is to it. It produces uniform, high-quality installations every time in about 30 seconds. The completed installation is immediately ready for inspection and use. If required, the insulator can be easily removed. Simply snip the cable ties and slide the insulator off the splice. It leaves no sticky residue.
Shrink-Kon® Motor Stub Splice Insulator, 600 VAC, 350 to 500 kcmil Wire, 1-3/4 in Bolt Length, Neoprene Elastomer, Black, 2.562 in Dia x 8.875 in L Dimensions

Specifications

 Application For insulate motor stub splices quickly and dependably
 Bolt Length 1/3/2004 in
 Brand Name Shrink-Kon®
 Color Black
 Dimensions 2.562 in Dia x 8.875 in L
 Manufacturer Part Number MSC500
 Material Neoprene Elastomer
 Standards/Approvals UL File No. E9809|CSA Certified
 Voltage Rating 600 VAC

Features

▪ Re-enterable motor stub insulator
▪ Easy installation
▪ No special tools required
▪ UL 94 V-1 flammability rated
▪ 90 deg C temperature, nylon strap material
▪ Modified neoprene elastomer
