Lutron Electronics

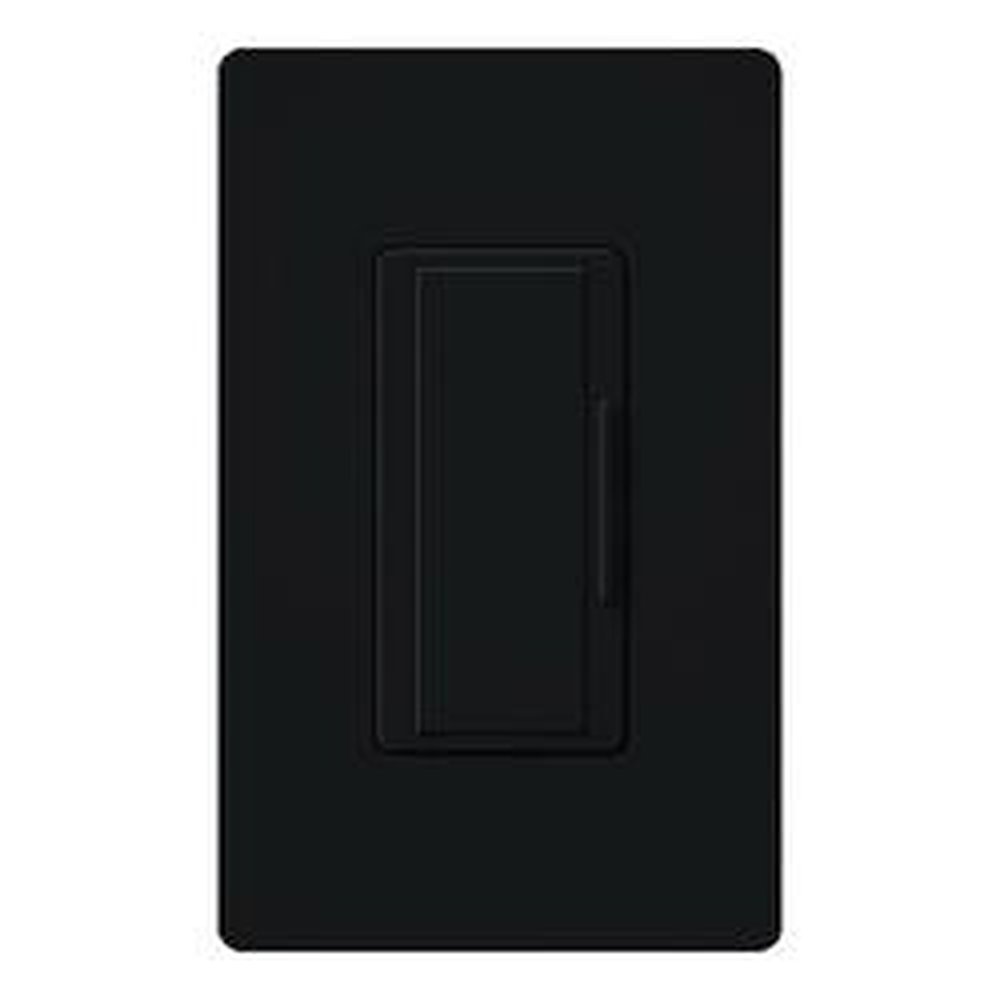

  • MSC-AD-MN LUTRON MAESTRO STAIN COLOR REMOTE MN 02755780291
  • MSC-AD-MN LUTRON MAESTRO STAIN COLOR REMOTE MN 02755780291

Description: Lutron®, MSC-AD-MN, Companion Dimmer, 1-Pole Multi-Location, Series: Maestro® Wireless®, 120 V AC, 8.3 A, 600 W Power, 50/60 Hz Frequency, 1 Pole, Fluorescent/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: 3-Way Tap On/Off, Tap Switch Control, Wall Mounting, Screw Terminal, 32 to 104 deg F, Metal/Plastic, Midnight, 2-15/16 in W x 5/16 in D x 4-11/16 in H Dimensions

Manufacturer PN: MSC-AD-MN

UPC:  02755780291

Kendall Electric Inc PN: 2382359

Invoice Description:

MSC-AD-MN LUTRON MAESTRO STAIN COLOR REMOTE MN 02755780291


SPEC SHEET

▸ See All in Digital Dimmers


How Can We Make This Page Better?

Lutron® MSC-AD-MN Maestro® Wireless® 1-Pole Multi-Location Companion Dimmer, 120 V AC, 8.3 A, 1 Poles, 3-Way Tap On/Off Operation, Midnight

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

For use with Lutron Maestro Multi-Location dimmer switches only. The Maestro Accessory dimmers are a companion device to Lutron Maestro dimmer switches, allowing you to control a single light from up to 10 locations; not for stand-alone use. The Maestro Companion dimmer switches sync with the programming of the main Maestro dimmer switch. Press the large tap switch once to turn lights ON/OFF to the programmed preset light level or tap twice for full on. Press, hold and release the tap switch for a delayed fade-to-off. Use the raise/lower buttons next to the tap switch to dim/brighten the lights from any location. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Lutron®, MSC-AD-MN, Companion Dimmer, 1-Pole Multi-Location, Series: Maestro® Wireless®, 120 V AC, 8.3 A, 600 W Power, 50/60 Hz Frequency, 1 Pole, Fluorescent/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: 3-Way Tap On/Off, Tap Switch Control, Wall Mounting, Screw Terminal, 32 to 104 deg F, Metal/Plastic, Midnight, 2-15/16 in W x 5/16 in D x 4-11/16 in H Dimensions

Specifications

 Amperage Rating 8.3 A
 Application Indoor Applications
 Brand Name Lutron®
 Color Midnight
 Control Tap Switch
 Dimensions 2-15/16 in W x 5/16 in D x 4-11/16 in H
 Frequency Rating 50/60 Hz
 Lamp Type Fluorescent/Halogen/Incandescent/LED
 Manufacturer Part Number MSC-AD-MN
 Material Metal/Plastic
 Mounting Type Wall
 Number of Poles 1
 Operation Mode 3-Way Tap On/Off
 PART NUMBER KEYWORDS MSC-AD-MN ; MSCADMN ; 027557802918 ; 02755780291 ; 27557802918
 Power Rating 600 W
 Series Maestro® Wireless®
 Standards/Approvals UL 1685|ICEA S-73-532|S-95-658|S-61-402|RoHS Compliant|UL Listed|CSA Certified|Industry Canada Certified|FCC Approved|NOM Certified
 Start Type Preset
 Temperature Rating 32 to 104 deg F
 Terminal Type Screw
 Type 1-Pole Multi-Location
 Video Links
 Voltage Rating 120 V AC

Features

▪ Use up to 9 companion dimmers with one Maestro dimmer switch to dim from up to 10 locations
▪ Press the large tap switch once to turn lights ON/OFF to a programmed preset light level or tap twice for full on
