Leviton

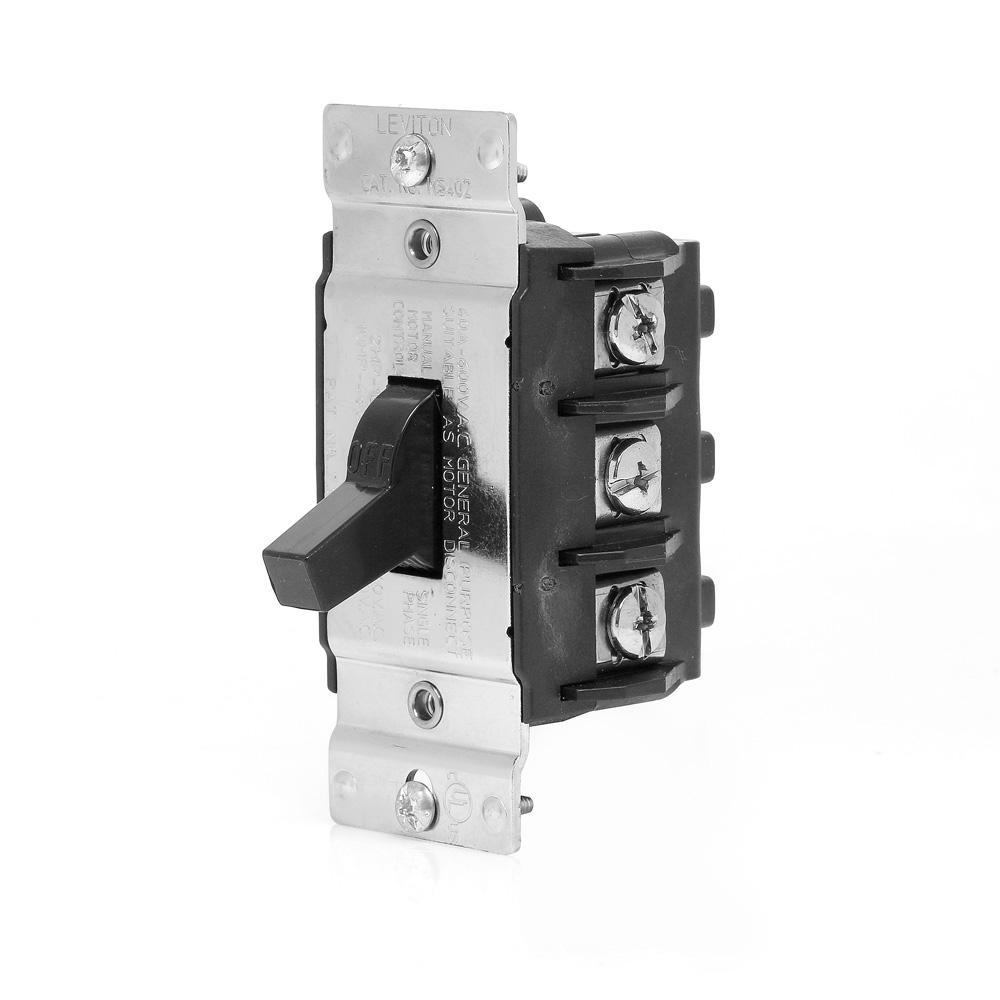

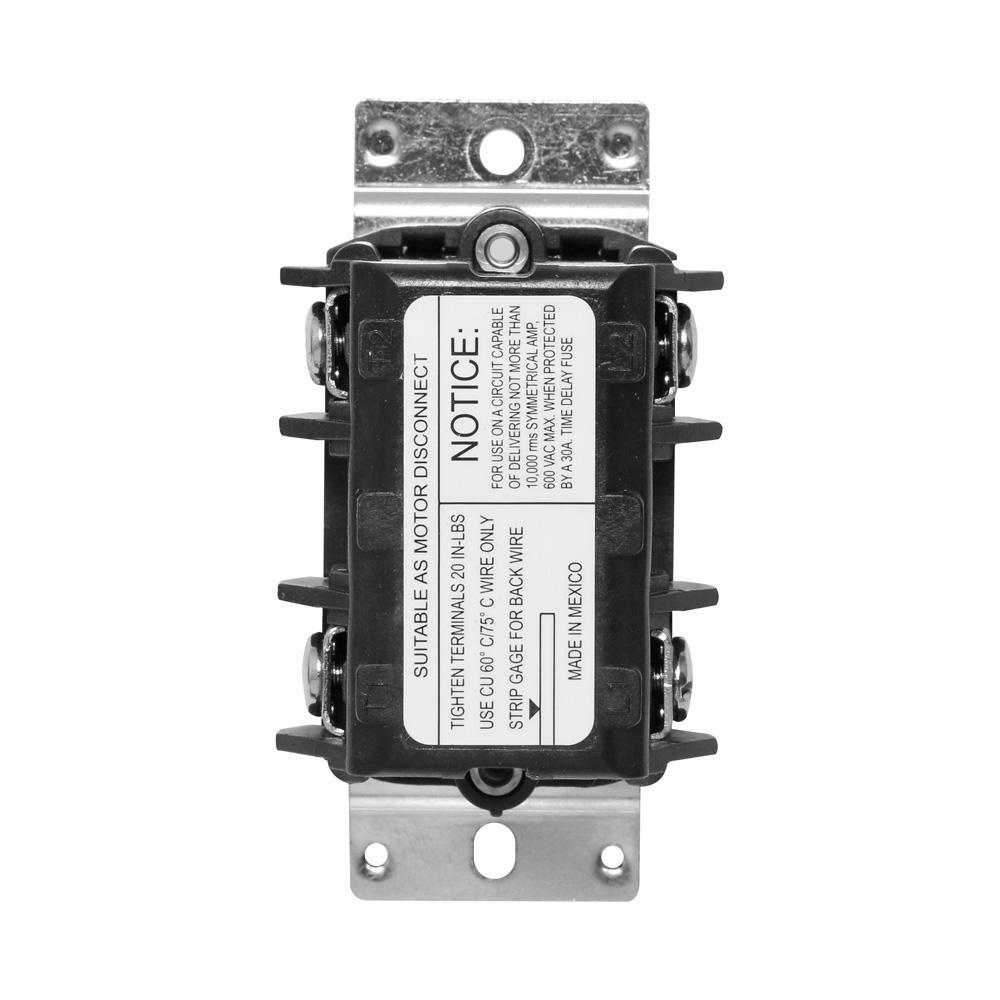

MS403-DS LEVITON 40A 3P MOTOR SW 07847737420

Mouse over image to zoom, click to enlarge

  • MS403-DS LEVITON 40A 3P MOTOR SW 07847737420
  • MS403-DS LEVITON 40A 3P MOTOR SW 07847737420
  • MS403-DS LEVITON 40A 3P MOTOR SW 07847737420

Description: Leviton® AC Motor Starter Switch, Industrial Grade Manual Non-Grounding, 600 V AC, 40 A, 20 hp Power, 3PST Contact Configuration, 40 A at 600 V AC Contact, 3 Pole, Standard Toggle Actuator, Back/Side Wire/Screw Connection, NEMA WD-1/WD-6 Enclosure, 6000 Cycles Operating Cycles, Polyester, Black, Environmental Conditions: -40 to 60 deg C Operating Temperature, 2.03 in W x 2.46 in D x 3.75 in H Dimensions

Manufacturer PN: MS403-DS

UPC:  07847737420

Kendall Electric Inc PN: 2854913

Invoice Description:

MS403-DS LEVITON 40A 3P MOTOR SW 07847737420


SPEC SHEET

How Can We Make This Page Better?

Leviton® MS403-DS Industrial Grade Manual Non-Grounding AC Motor Starter Switch, 600 V AC, 40 A, 20 hp Power Rating, 3PST Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The power switch® line of industrial grade AC manual motor controllers provide safe, reliable control of a variety of motor loads. Suitable for use as motor disconnect, these switches are available for both 1 and 3-phase applications, with a continuous current rating at voltages up to 600 VAC and maximum horsepower ratings of 30 hp.
Leviton® AC Motor Starter Switch, Industrial Grade Manual Non-Grounding, 600 V AC, 40 A, 20 hp Power, 3PST Contact Configuration, 40 A at 600 V AC Contact, 3 Pole, Standard Toggle Actuator, Back/Side Wire/Screw Connection, NEMA WD-1/WD-6 Enclosure, 6000 Cycles Operating Cycles, Polyester, Black, Environmental Conditions: -40 to 60 deg C Operating Temperature, 2.03 in W x 2.46 in D x 3.75 in H Dimensions

Specifications

 Actuator Standard Toggle
 Amperage Rating 40 A
 Application Commercial Applications
 Brand Name Leviton®
 Color Black
 Connection Back/Side Wire/Screw
 Contact Configuration 3PST
 Contact Rating 40 A at 600 V AC
 Dimensions 2.03 in W x 2.46 in D x 3.75 in H
 Enclosure NEMA WD-1/WD-6
 Environmental Conditions -40 to 60 deg C Operating Temperature
 Manufacturer Part Number MS403-DS
 Material Polyester
 Number of Poles 3
 Operating Cycles 6000 Cycles
 PART NUMBER KEYWORDS MS403-DS ; MS403DS
 Power Rating 20 hp
 Standards/Approvals ANSI C73|cUL per CSA C22.2 No. 111 (File E63969) Certified|NOM-ANCE Certified|UL 60947-4-1 Supersedes UL 508|UL94 V-0 Flammability Rating
 Type Industrial Grade Manual Non-Grounding
 Voltage Rating 600 V AC

Features

▪ All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
▪ Cam driven mechanism enhances fast make/slow break
▪ Silver alloy contacts for maximum conductivity and service life
▪ Insulating barrier between terminals provide isolation between phases
▪ Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
▪ Oversized toggle provides positive actuation, even with gloved hand
