Leviton

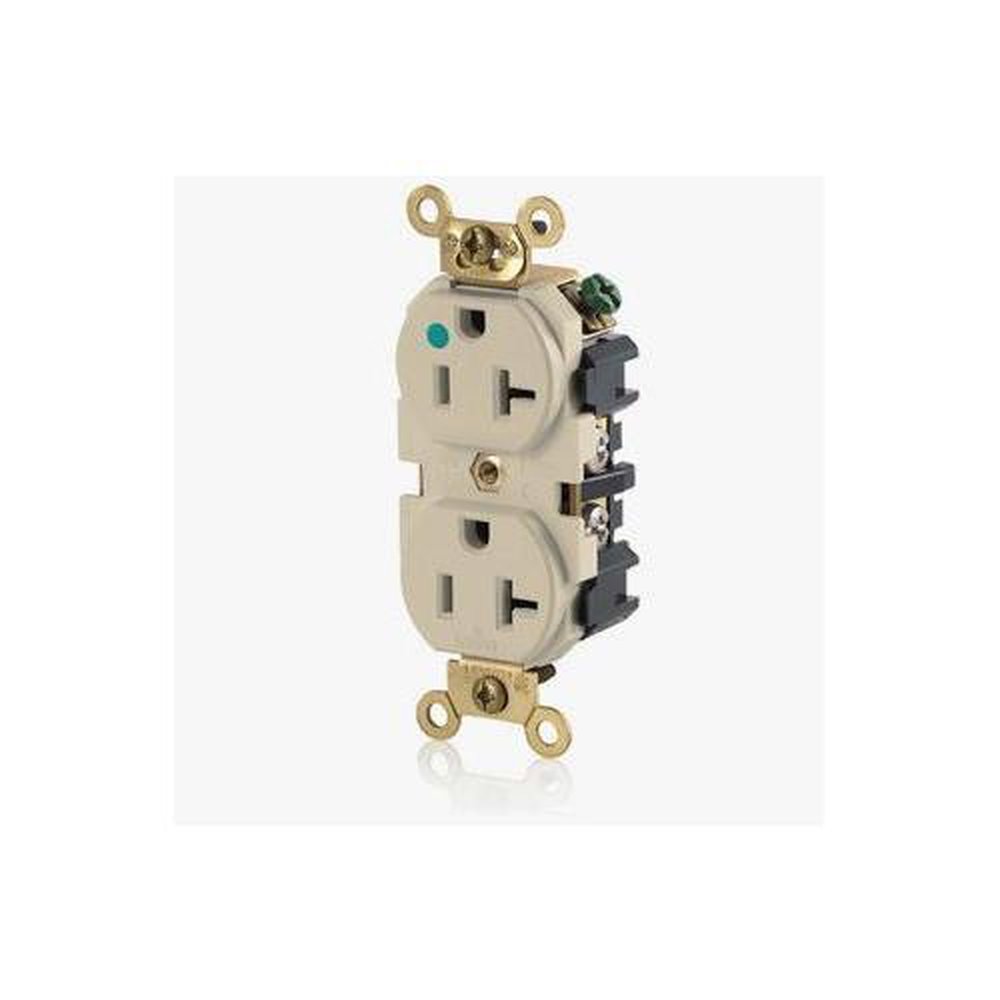

MRI83-I LEVITON 20A HG MRI DUP RECEPT 07847739312

Mouse over image to zoom, click to enlarge

Description: Leviton® MRI Receptacle, Duplex Extra Heavy Duty Wide Body, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Ivory, 46 in H x 1.53 in W x 1.11 in D Dimensions

Manufacturer PN: MRI83-I

UPC:  07847739312

Kendall Electric Inc PN: 2701605

Invoice Description:

MRI83-I LEVITON 20A HG MRI DUP RECEPT 07847739312


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Leviton® MRI83-I Duplex Extra Heavy Duty Wide Body MRI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Ivory

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® line of extra heavy duty industrial grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Leviton® MRI Receptacle, Duplex Extra Heavy Duty Wide Body, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Ivory, 46 in H x 1.53 in W x 1.11 in D Dimensions

Specifications

 Amperage Rating 20 A
 Application High Magnetic Field Applications
 Brand Name Leviton®
 Color Ivory
 Dimensions 46 in H x 1.53 in W x 1.11 in D
 Grade Commercial
 Horsepower 1 hp
 Manufacturer Part Number MRI83-I
 Material Nylon
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS MRI83-I ; MRI83I ; 9952366 ; 078477393123 ; 78477393123 ; 07847739312 ; 00078477393123
 Standards/Approvals NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498HG File No. E13399|UL94 V-2 Flammability Rating
 Temperature Rating -40 to 60 deg C
 Terminal Type Back/Side Wire
 Type Duplex Extra Heavy Duty Wide Body
 Voltage Rating 125 V AC

Features

▪ Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
▪ Impact resistant thermoplastic nylon cover and body
▪ Four corner latches securely fasten face
▪ Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
▪ High performance brass #10-32 terminal screws to reduce conductor oxidation
▪ Back and side wire ground termination brass strap version
▪ Back and side wiring options
▪ Break-OFF tabs allow easy 2-circuit conversion
▪ Apron barrier to prevent accidental contact between terminal screw heads and metal box
▪ Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
