Schneider Electric
  • MPR55125 SQD MTR MP DEVICE RINGLESS
  • MPR55125 SQD MTR MP DEVICE RINGLESS
  • MPR55125 SQD MTR MP DEVICE RINGLESS
  • MPR55125 SQD MTR MP DEVICE RINGLESS

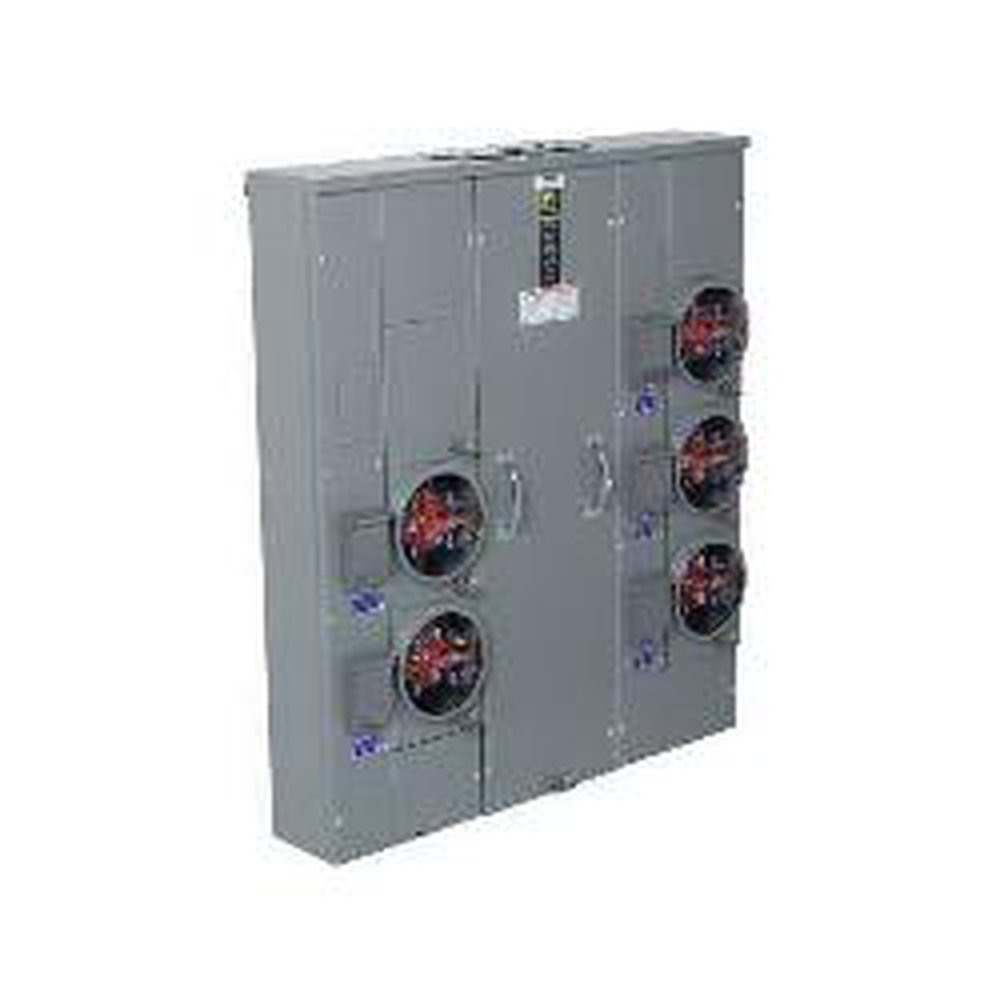

Description: Square D™ Meter-Pak™ Meter Center, 5-Position 3-Wire, Series: MP Series, 240 V AC, 125 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 1/0 AWG to 600 kcmil Wire, (2) A-L Hub, Ringless Cover, Bus Bar/Main Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 39.46 in W x 7.28 in D x 42.37 in H Dimensions

Manufacturer PN: MPR55125

UPC:  78590120808

Kendall Electric Inc PN: 3959879

Invoice Description:

MPR55125 SQD MTR MP DEVICE RINGLESS


SPEC SHEET

How Can We Make This Page Better?

Square D™ Meter-Pak™ MPR55125 MP Series 5-Position 3-Wire Meter Center, 240 V AC, 125 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 125 A with 5 positions. It has no bypass and a 500 A main bus. This system is a ringless type.
Square D™ Meter-Pak™ Meter Center, 5-Position 3-Wire, Series: MP Series, 240 V AC, 125 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 1/0 AWG to 600 kcmil Wire, (2) A-L Hub, Ringless Cover, Bus Bar/Main Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 39.46 in W x 7.28 in D x 42.37 in H Dimensions

Specifications

 Amperage Rating 125 A
 Application For service equipment applications
 Brand Name Square D
 Cover Type Ringless

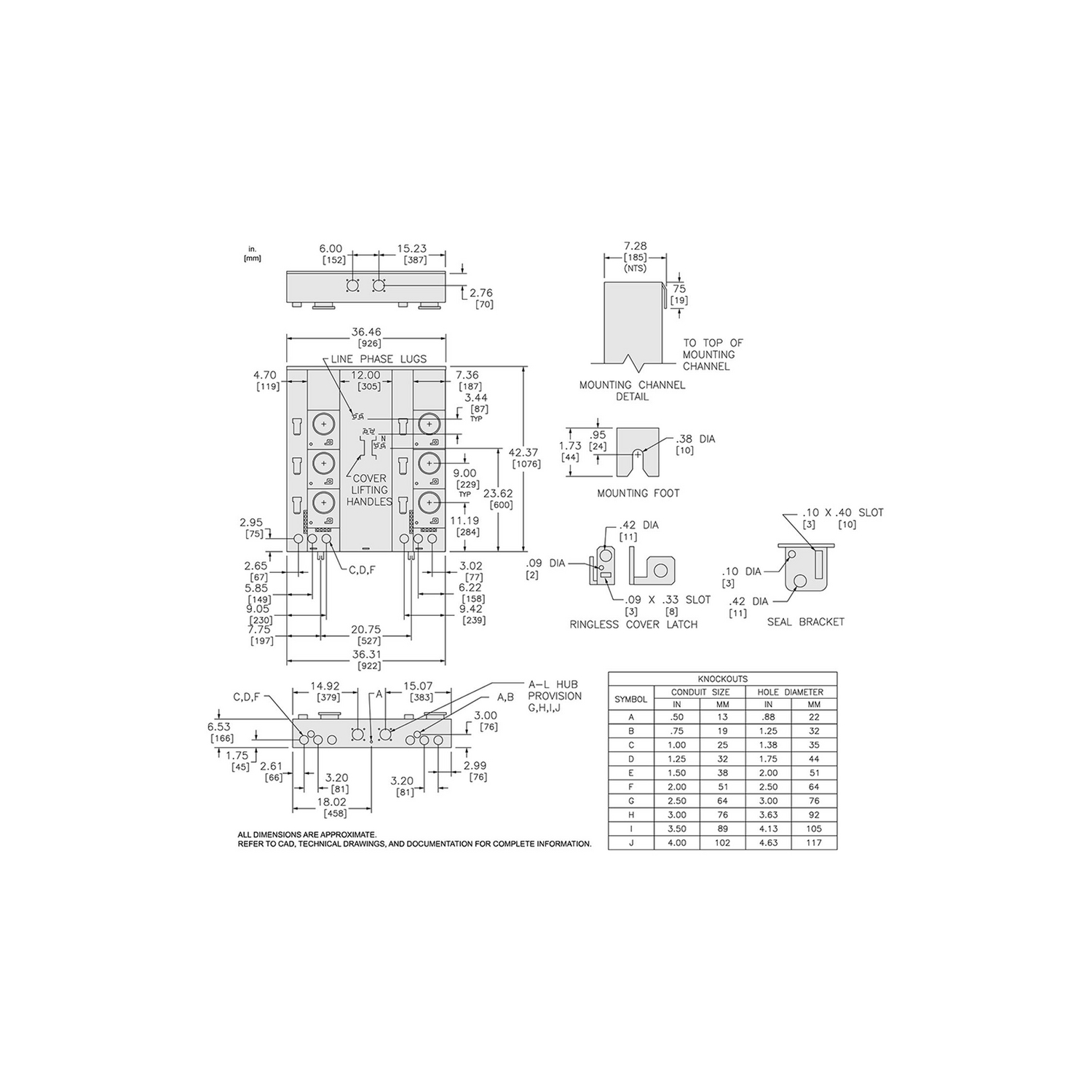

 Dimensions 39.46 in W x 7.28 in D x 42.37 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Size (2) A-L
 Manufacturer Part Number MPR55125
 Mounting Type Surface
 Number of Jaws 5
 PART NUMBER KEYWORDS MPR55125 ; 8085089 ; 785901208082 ; 78590120808 ; 00785901208082 ; 0785901208082
 Phase 1
 Series MP Series
 Standards/Approvals UL Listed
 Terminal Type Bus Bar/Main Lug
 Type 5-Position 3-Wire
 Voltage Rating 240 V AC

Features

▪ Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection
▪ 125A, 200A, and 225A units available, ringless or ring type with varied bypass options
▪ Surface mount, convertible to semi flush with field installed flange kit
▪ For outdoor and indoor installation
