Schneider Electric
  • MPH66125 SQD MTR MP DEVICE RINGLESS
  • MPH66125 SQD MTR MP DEVICE RINGLESS
  • MPH66125 SQD MTR MP DEVICE RINGLESS
  • MPH66125 SQD MTR MP DEVICE RINGLESS

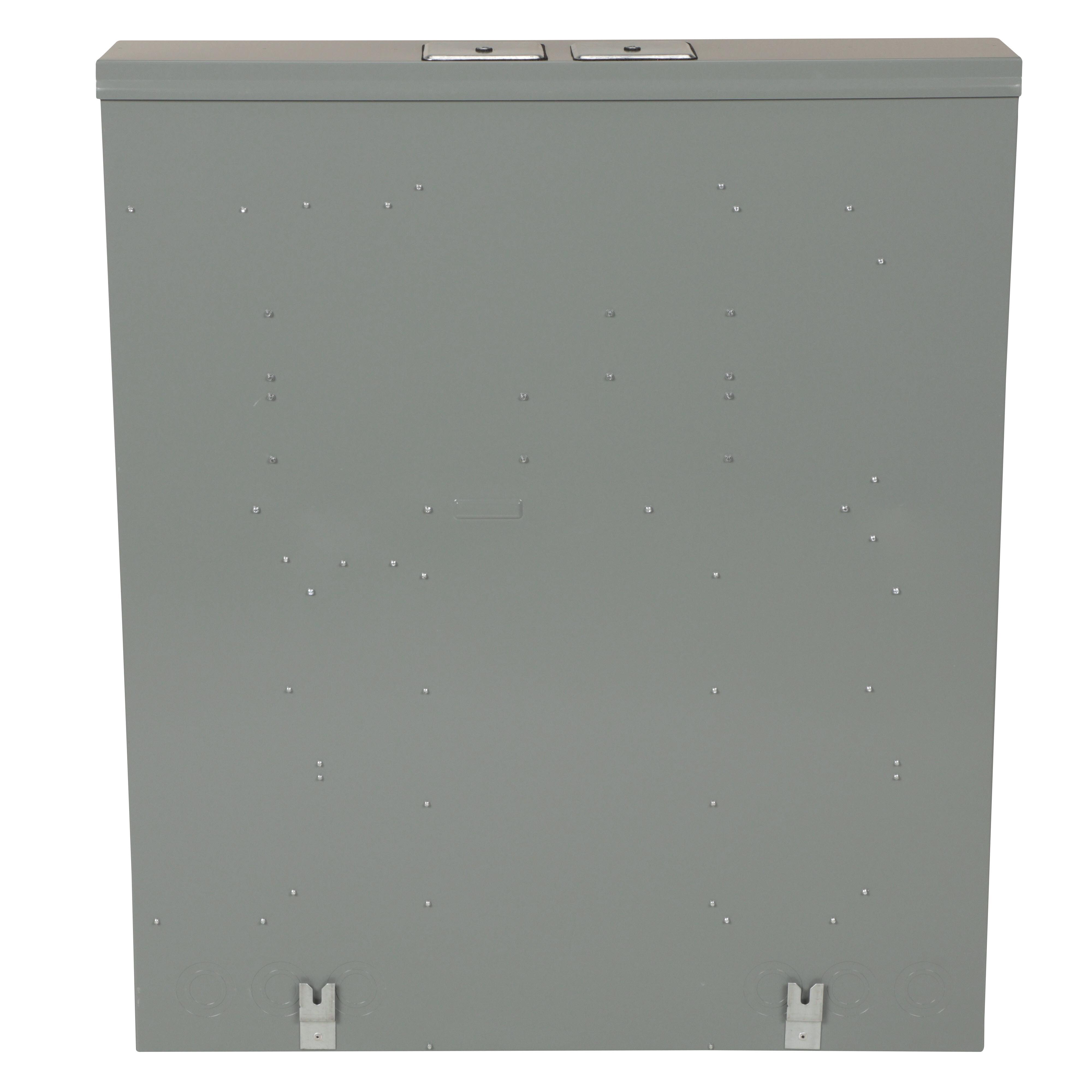

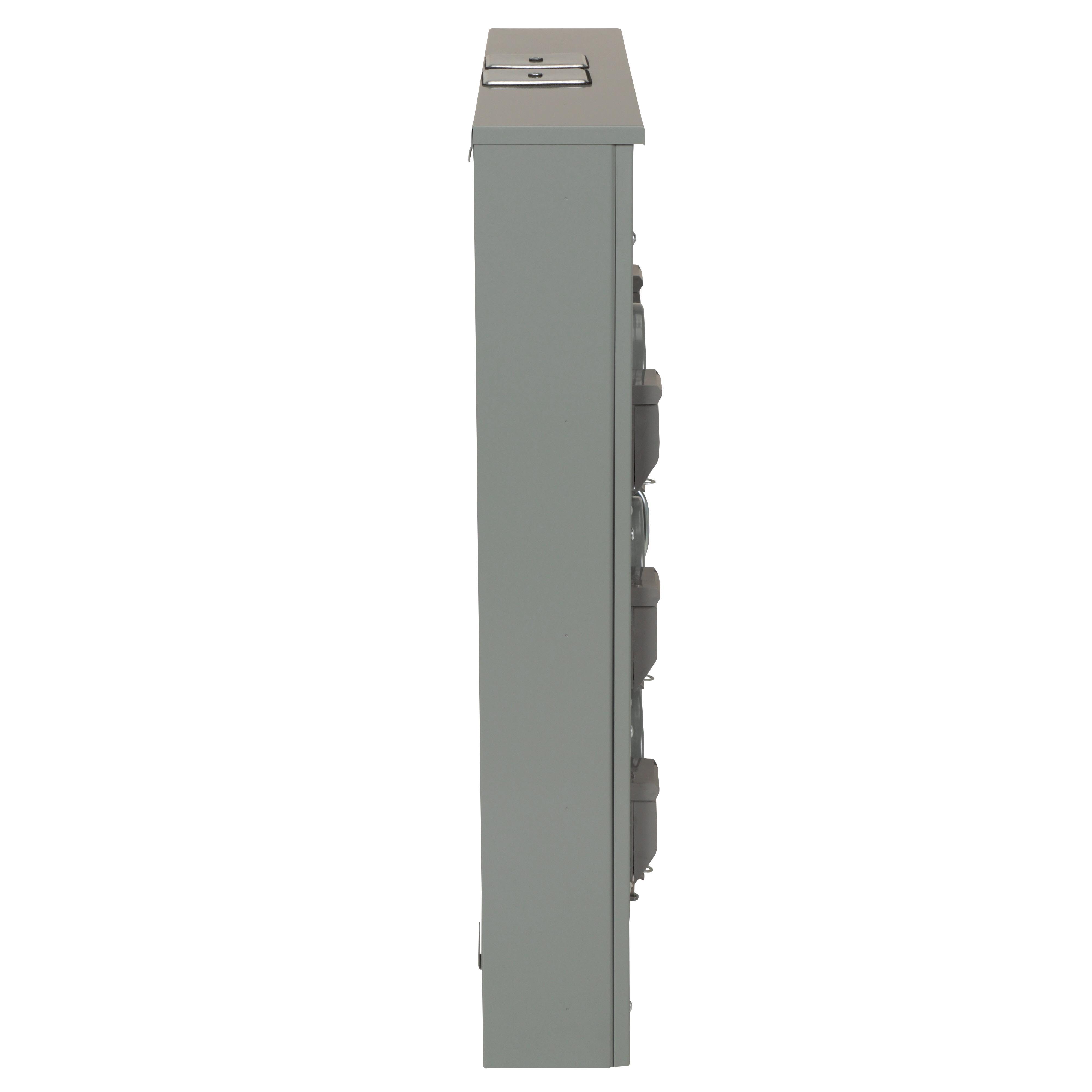

Description: Square D™ Meter-Pak™ Meter Center, 6-Position 3-Wire Main Lug, Series: MP Series, 240 V AC, 125/500 to 400/600 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 1/0 AWG to 600 kcmil Wire, (2) A-L Hub, Ringless Cover, Surface Mounting, NEMA 3R Enclosure

Manufacturer PN: MPH66125

UPC:  78590120814

Kendall Electric Inc PN: 3959795

Invoice Description:

MPH66125 SQD MTR MP DEVICE RINGLESS


SPEC SHEET

▸ See All in Meter Packs


How Can We Make This Page Better?

Square D™ Meter-Pak™ MPH66125 6-Position 3-Wire Main Lug Meter Center With Horn Bypass, 240 V AC, 125/500 to 400/600 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 600 A. This MPH meter pak meter center has 6 meter sockets. The maximum tenant main lugs amperage is 125 A with a 240 VAC single phase maximum. This MPH meter center with accept 1/0 AWG to 600 kcmil copper or aluminum wire. Meter center is UL listed.
Square D™ Meter-Pak™ Meter Center, 6-Position 3-Wire Main Lug, Series: MP Series, 240 V AC, 125/500 to 400/600 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 1/0 AWG to 600 kcmil Wire, (2) A-L Hub, Ringless Cover, Surface Mounting, NEMA 3R Enclosure

Specifications

 Amperage Rating 125/500 to 400/600 A
 Application For service equipment
 Brand Name Square D
 Cover Type Ringless
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Type (2) A-L
 Manufacturer Part Number MPH66125
 Mounting Type Surface
 Number of Jaws 5
 Phase 1
 Series MP Series
 Standards/Approvals UL Listed
 Type 6-Position 3-Wire Main Lug
 Voltage Rating 240 V AC

Features

▪ Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection
▪ 125A, 200A, and 225A units available, ringless or ring type with varied bypass options
▪ Surface mount, convertible to semi flush with field installed flange kit
▪ NEMA Type 3R for outdoor and indoor installation
