Schneider Electric

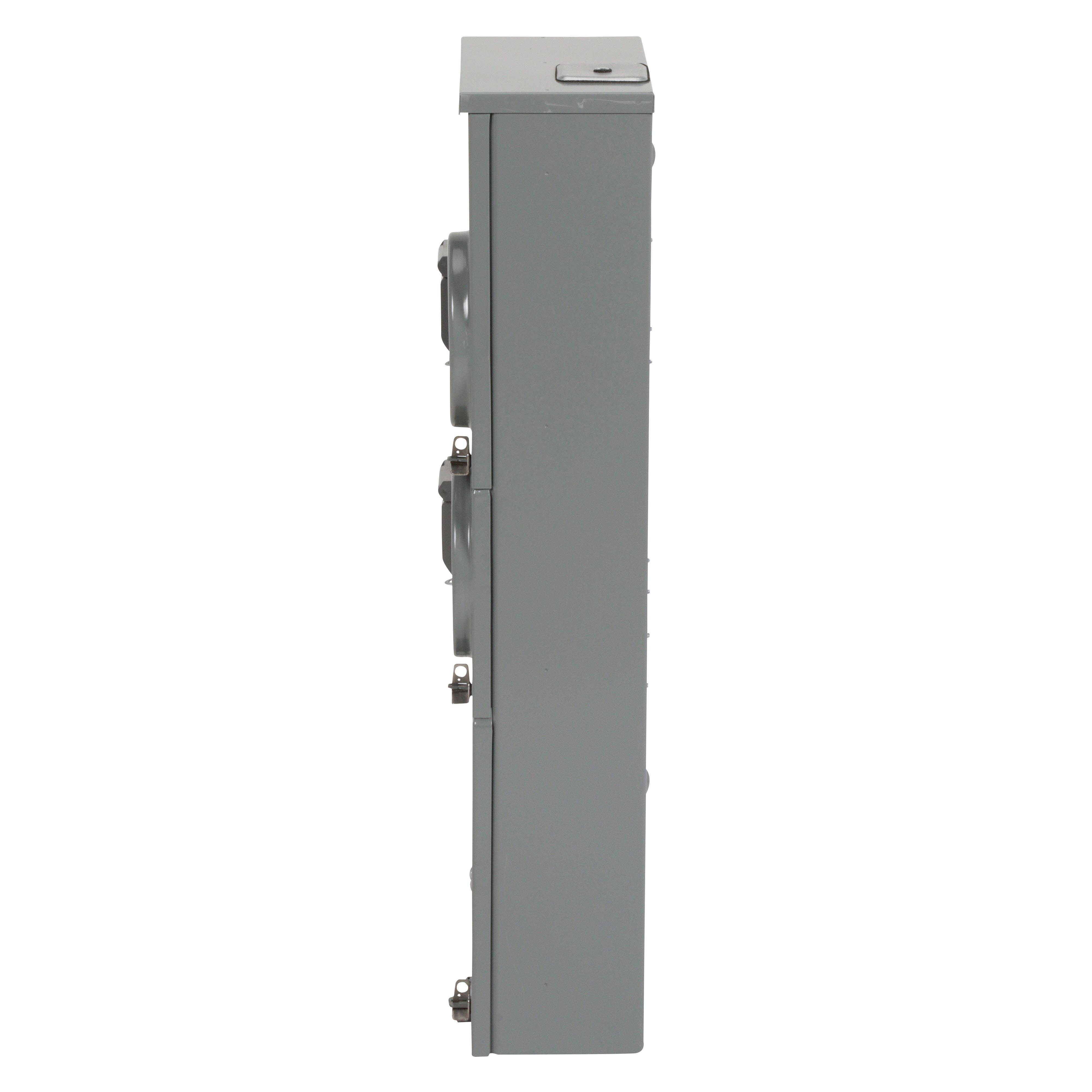

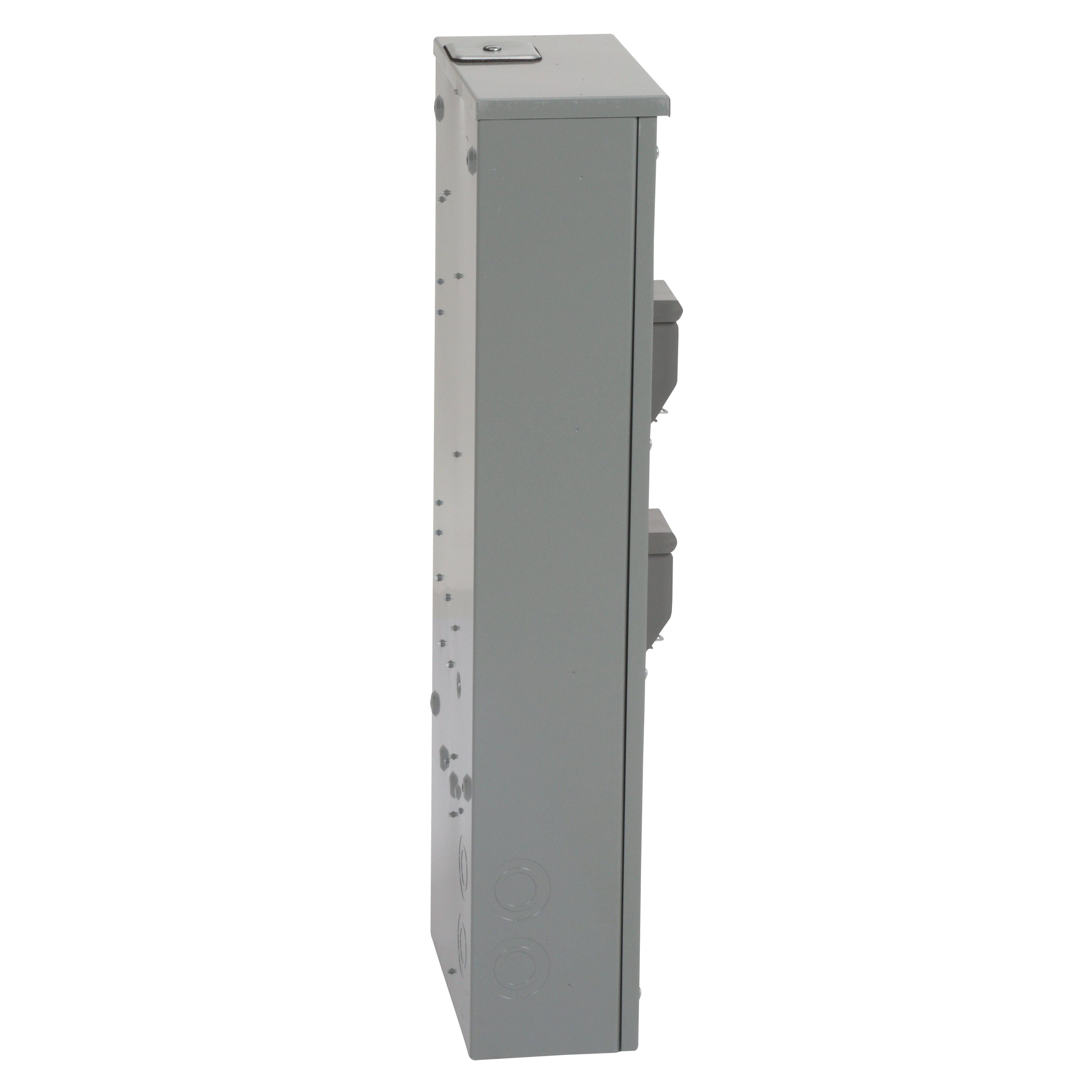

  • MPH22125 SQD MTR MP DEVICE RINGLESS
  • MPH22125 SQD MTR MP DEVICE RINGLESS
  • MPH22125 SQD MTR MP DEVICE RINGLESS
  • MPH22125 SQD MTR MP DEVICE RINGLESS

Description: Square D™ Meter-Pak™ Meter Center, 2-Position 3-Wire, Series: MP Series, 240 V AC, 125 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 4 AWG to 250 kcmil Wire, A/B300 Hub, Ringless Cover, Bus Bar/Main Lug Terminal, Surface Mounting, NEMA 3R Enclosure

Manufacturer PN: MPH22125

UPC:  78590120810

Kendall Electric Inc PN: 3961735

Invoice Description:

MPH22125 SQD MTR MP DEVICE RINGLESS


SPEC SHEET

▸ See All in Meter Packs


How Can We Make This Page Better?

Square D™ Meter-Pak™ MPH22125 MP Series 2-Position 3-Wire Meter Center With Horn Bypass, 240 V AC, 125 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. This MP meter pak is rated at 125 A with 2 positions. It has a horn bypass and a 200 A main bus. This system is a ringless type.
Square D™ Meter-Pak™ Meter Center, 2-Position 3-Wire, Series: MP Series, 240 V AC, 125 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 4 AWG to 250 kcmil Wire, A/B300 Hub, Ringless Cover, Bus Bar/Main Lug Terminal, Surface Mounting, NEMA 3R Enclosure

Specifications

 Amperage Rating 125 A
 Application For service equipment applications
 Brand Name Square D
 Cover Type Ringless
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Size A/B300
 Manufacturer Part Number MPH22125
 Mounting Type Surface
 Number of Jaws 5
 Phase 1
 Series MP Series
 Standards/Approvals UL Listed
 Terminal Type Bus Bar/Main Lug
 Type 2-Position 3-Wire
 Voltage Rating 240 V AC

Features

▪ Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection
▪ 125A, 200A, and 225A units available, ringless or ring type with varied bypass options
▪ Surface mount, convertible to semi flush with field installed flange kit
▪ NEMA Type 3R for outdoor and indoor installation
