Emerson Electric

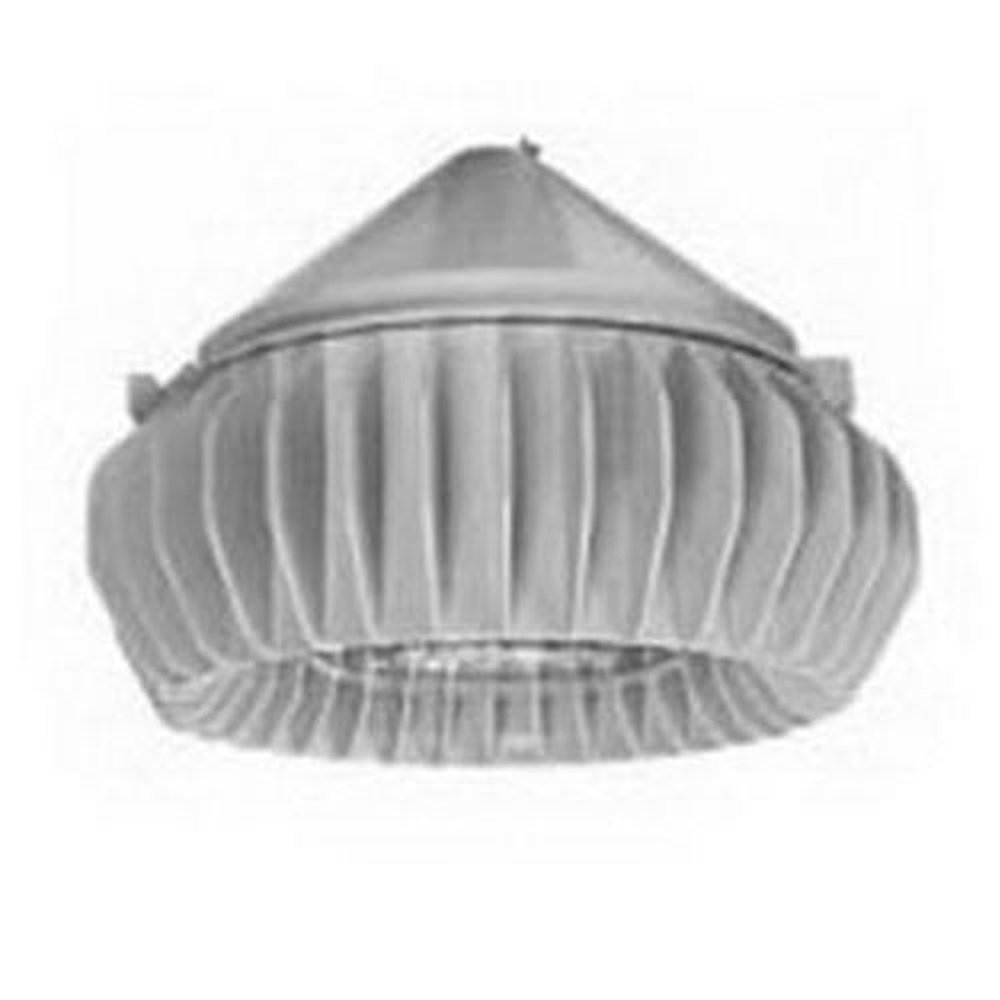

MLEDND172P5BH APPLETON FIXTURE

Mouse over image to zoom, click to enlarge

Description: Appleton® Mercmaster™ LED Luminaire, Type V Symmetrical Enclosed Gasketed, Series: MLEDN, 347 to 480 V AC, 72/74 W Fixture, 0.28/0.63 A, 72 W Lamp, 82 Lumens/W Light Output, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Globe Lens, 6076 Lumens, NEMA 3R/4X/IP66/IP67 Enclosure, Cone-Top Pendant Mounting, Cast Copper-Free Aluminum Housing Material, Baked Gray Epoxy Clad Housing Finish, 15.4 in L x 15.4 in W x 10.92 in H Dimensions

Manufacturer PN: MLEDND172P5BH

UPC:  78138196147

Kendall Electric Inc PN: 4070010

Invoice Description:

MLEDND172P5BH APPLETON FIXTURE


SPEC SHEET

▸ See All in Explosion Proof Indoor Lighting


How Can We Make This Page Better?

Appleton® Mercmaster™ MLEDND172P5BH Type V Symmetrical Enclosed Gasketed LED Luminaire, 72/74 W Fixture, 347 to 480 V AC, Baked Gray Epoxy Clad Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Mercmaster™ LED luminaires deliver exceptional efficiency, performance and advanced engineering. Designed to utilize as little as 32 W of power, it lowers energy consumption while providing 60000+ hr of running lamp life. It sets the bar even higher for the lighting industry in terms of shock resistance, cold start capabilities, minimal heat production which improves service life and overall safety. This fixture offers a flexible, modular design that allows for retrofits and plant expansions to meet unique installation requirements. Certified for Class I, Division 2 and Zone 2 locations, it provides global lighting solutions for a wide range of industrial and hazardous applications.
Appleton® Mercmaster™ LED Luminaire, Type V Symmetrical Enclosed Gasketed, Series: MLEDN, 347 to 480 V AC, 72/74 W Fixture, 0.28/0.63 A, 72 W Lamp, 82 Lumens/W Light Output, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Globe Lens, 6076 Lumens, NEMA 3R/4X/IP66/IP67 Enclosure, Cone-Top Pendant Mounting, Cast Copper-Free Aluminum Housing Material, Baked Gray Epoxy Clad Housing Finish, 15.4 in L x 15.4 in W x 10.92 in H Dimensions

Specifications

 Amperage Rating 0.28/0.63 A
 Application For marine and wet locations, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment, parking garages and other areas where dust, water, dirt and rough usage are a problem
 Average Life 60000 hr
 Brand Name Appleton
 Color Rendering Index CRI 70
 Color Temperature 5650 K
 Dimensions 15.4 in L x 15.4 in W x 10.92 in H
 Enclosure NEMA 3R/4X/IP66/IP67
 Fixture Wattage 72/74 W
 Housing Finish Baked Gray Epoxy Clad
 Housing Material Cast Copper-Free Aluminum
 Lamp Wattage 72 W
 Light Output 82 Lumens/W
 Lumens 6076 Lumens
 Manufacturer Part Number MLEDND172P5BH
 Mounting Type Cone-Top Pendant
 PART NUMBER KEYWORDS MLEDND172P5BH ; 11936082 ; 781381961479 ; 78138196147 ; 00781381961479
 Series MLEDN
 Standards/Approvals UL 1598/1598A/8750/844|CSA C22.2 No. 250.0/C22.2 No. 137|cCSAus 065182|NEC/CEC: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 1, Group E, F, G, Class II, Division 2, Group F, G, Class III|ATEX/IECEx: Zone 2 and 22 II 2 GD
 Type Type V Symmetrical Enclosed Gasketed
 Voltage Rating 347 to 480 V AC

Features

▪ Compact light weight low profile design is suited for low mounting heights
▪ Modular design allows scores of fixture component combinations to meet installation needs, uses the same mounting hoods as the Mercmaster™ III HIDs
▪ Accommodates a wide range of voltages
▪ Hinge has high lip for added safety during installation and servicing
▪ Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
▪ Swing away design of captive bolt and nut simplifies servicing
▪ All Mercmaster™ mounting hoods have provision for easy field installation of fuses in fixtures
▪ NPT and metric threads standard
▪ 0.63 A at 120 VAC, 0.28 A at 277 VAC
