Puls

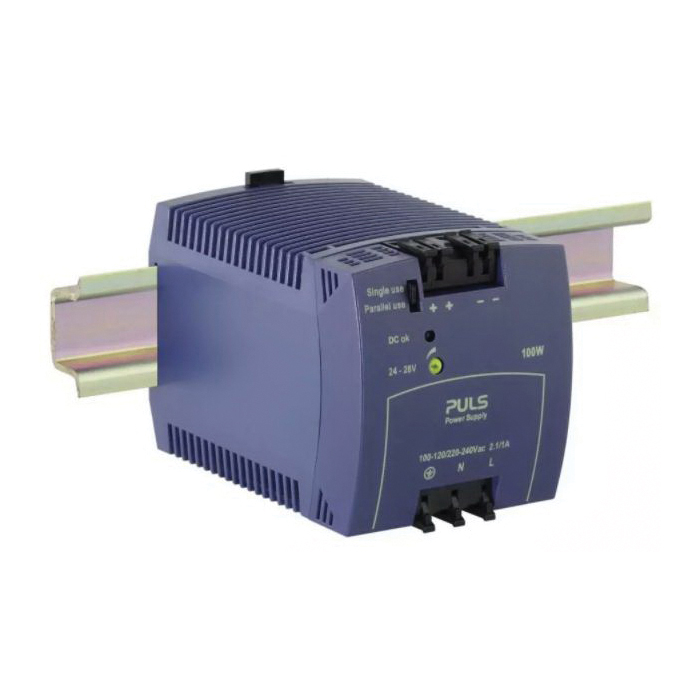

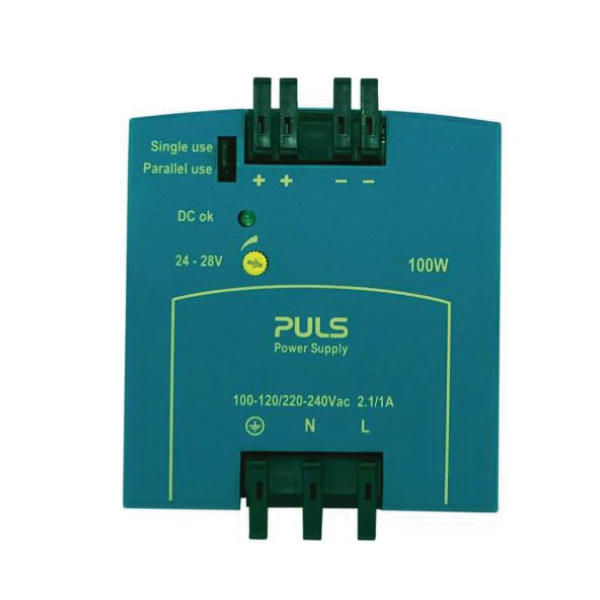

ML100.100 PULS MINILINE POWER SUPPLY INPUT 1PHASE 115/230V OUTPUT 24-28VDC 3.6-4.2AMP 100WATT W73XH75XD103MM SPRING CLAMP MINILINE

Mouse over image to zoom, click to enlarge

  • ML100.100 PULS MINILINE POWER SUPPLY INPUT 1PHASE 115/230V OUTPUT 24-28VDC 3.6-4.2AMP 100WATT W73XH75XD103MM SPRING CLAMP MINILINE
  • ML100.100 PULS MINILINE POWER SUPPLY INPUT 1PHASE 115/230V OUTPUT 24-28VDC 3.6-4.2AMP 100WATT W73XH75XD103MM SPRING CLAMP MINILINE
  • ML100.100 PULS MINILINE POWER SUPPLY INPUT 1PHASE 115/230V OUTPUT 24-28VDC 3.6-4.2AMP 100WATT W73XH75XD103MM SPRING CLAMP MINILINE

Manufacturer PN: ML100.100

Kendall Electric Inc PN: 2126188

Invoice Description:

ML100.100 PULS MINILINE POWER SUPPLY INPUT 1PHASE 115/230V OUTPUT 24-28VDC 3.6-4.2AMP 100WATT W73XH75XD103MM SPRING CLAMP MINILINE


SPEC SHEET

▸ See All in DC Power Supplies


How Can We Make This Page Better?

Puls ML100.100 DIN Rail Power Supply for 1-Phase system, 24 V, 4.2 A

Log In for Pricing and Availability




Specifications

 AC Input Voltage AC 100 - 120 / 220 - 240 V (-15 %/+10 %)
 Adjustment Range 24 - 28 V
 Brand Name Puls
 Connection Method Spring clamps
 DC Input Voltage DC 290 V (-25 %/+20 %)
 Derating 2.5 W/°C for >+60 °C
 Efficiency Typ 90 %
 External Input Fuse Recommendation B-10 A / C-6 A
 Input Inrush Current 22 A / 37 A
 Input Inrush Current Limitation NTC
 MTBF SN 29500 40 C H 500000 h
 Output Current 3.6 A at 28 V
 Output Current Range 4.2 - 3.6 A
 Output Power 100 W
 Power Factor 0.55
 Power Losses Typ 11.4 W
 Ripple And Noise Voltage Max 50 mVpp
 Weight Per Unit Excl Packaging 360 g

Features

▪ 115 / 230 V Auto-select input
▪ Efficiency up to 90 %
▪ Adjustable to parallel mode for load sharing
▪ Full output power between -10 and +60 °C
▪ Quick-connect spring-clamp terminals
