Milbank Manufacturing

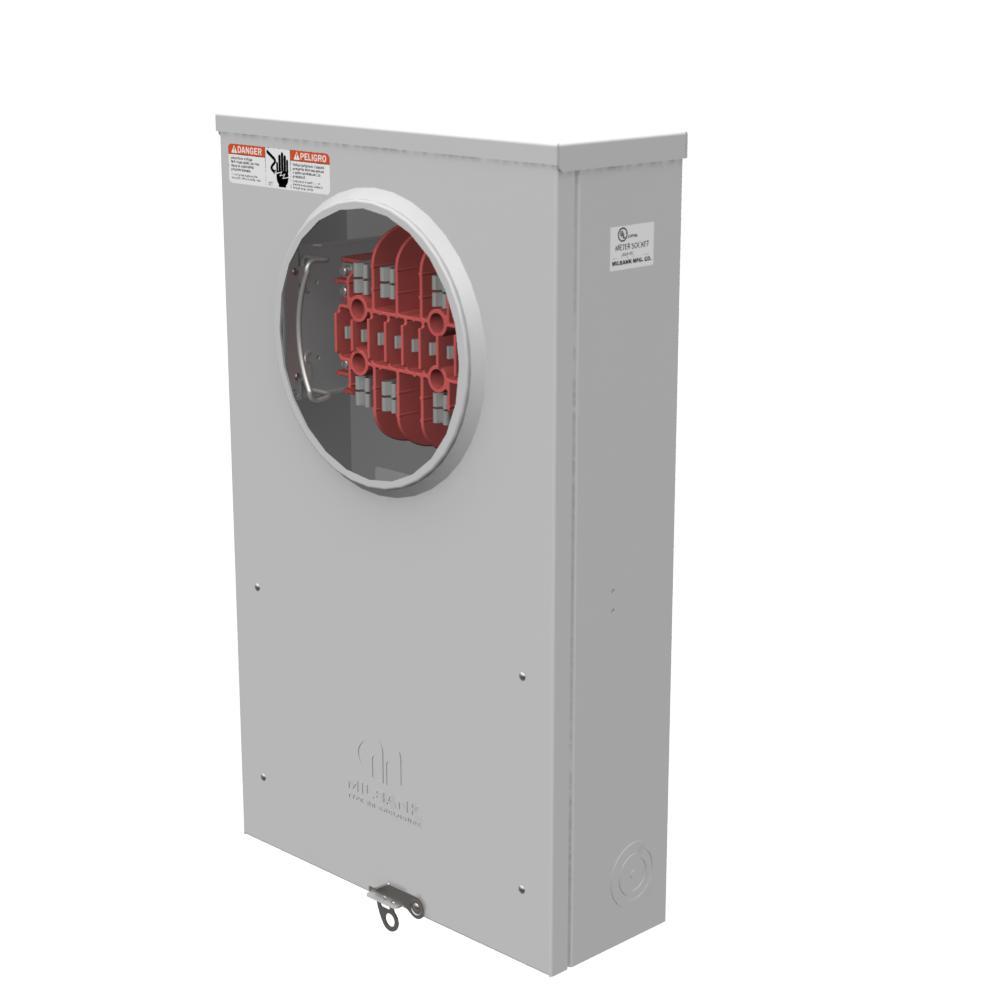

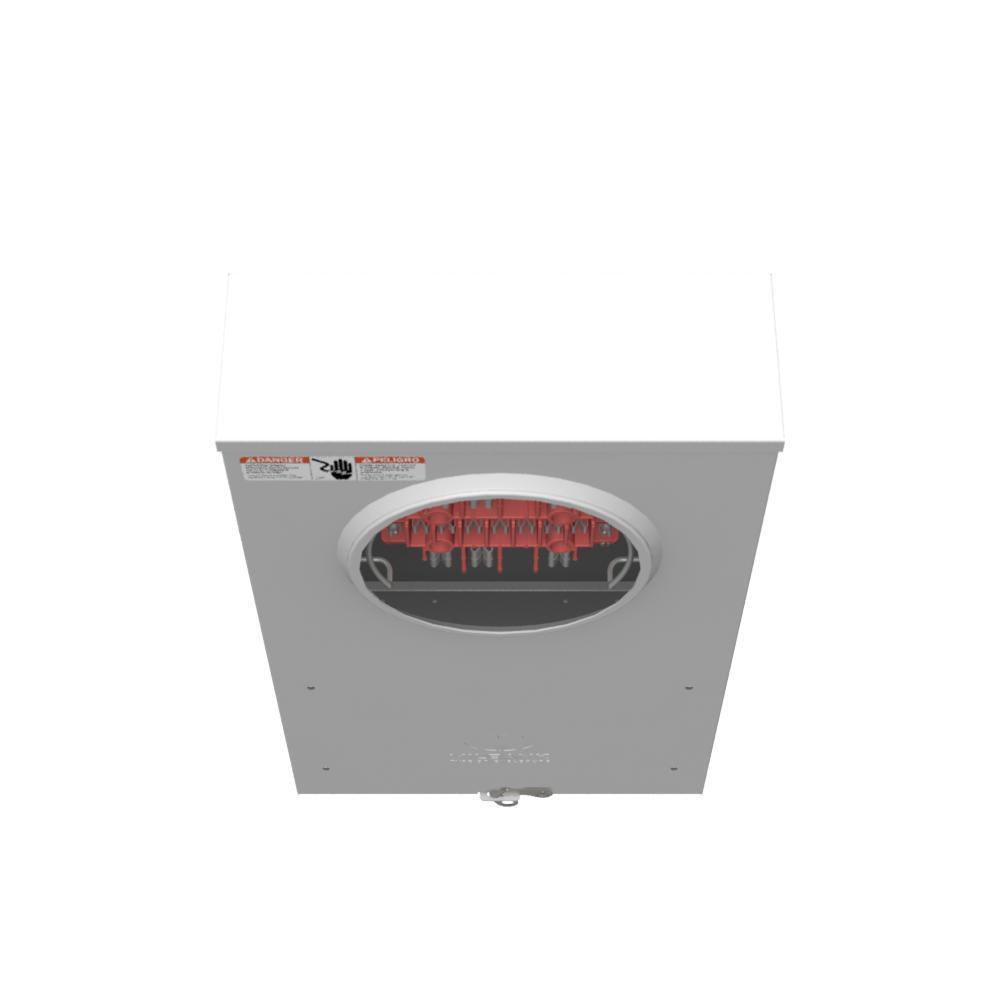

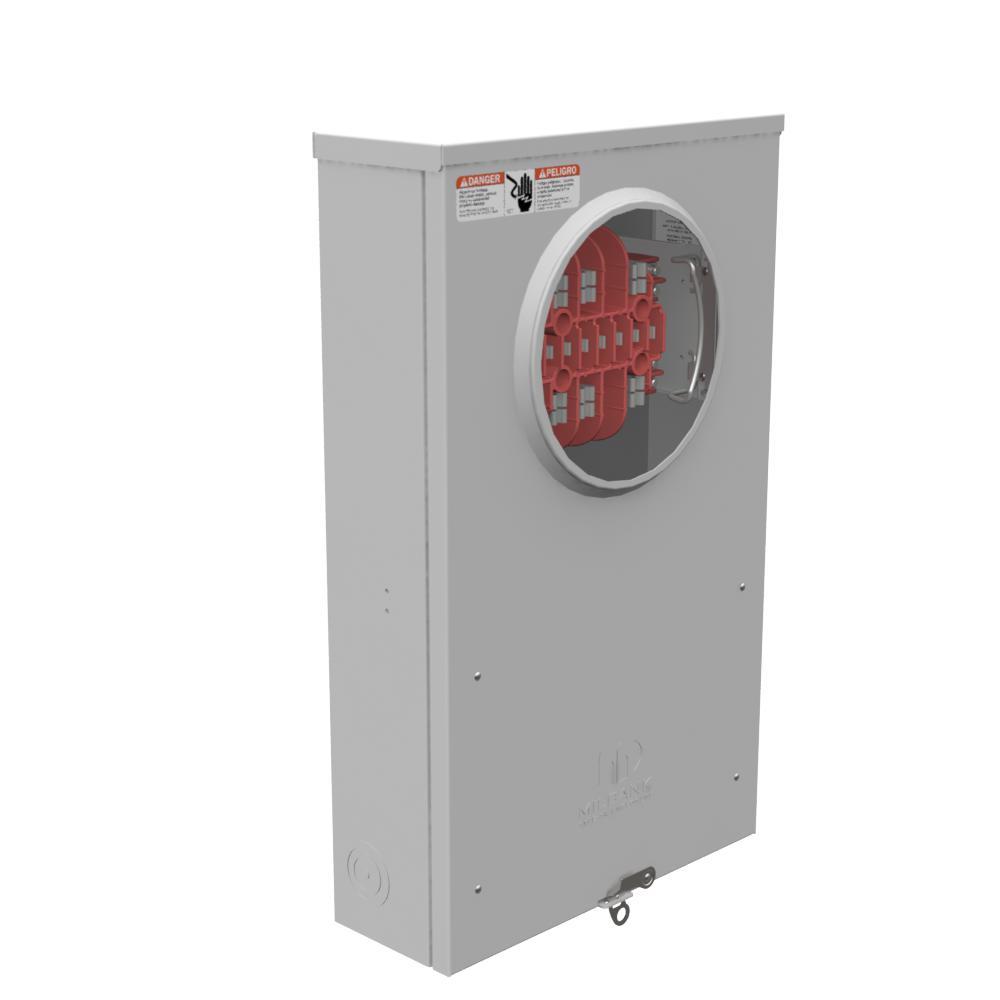

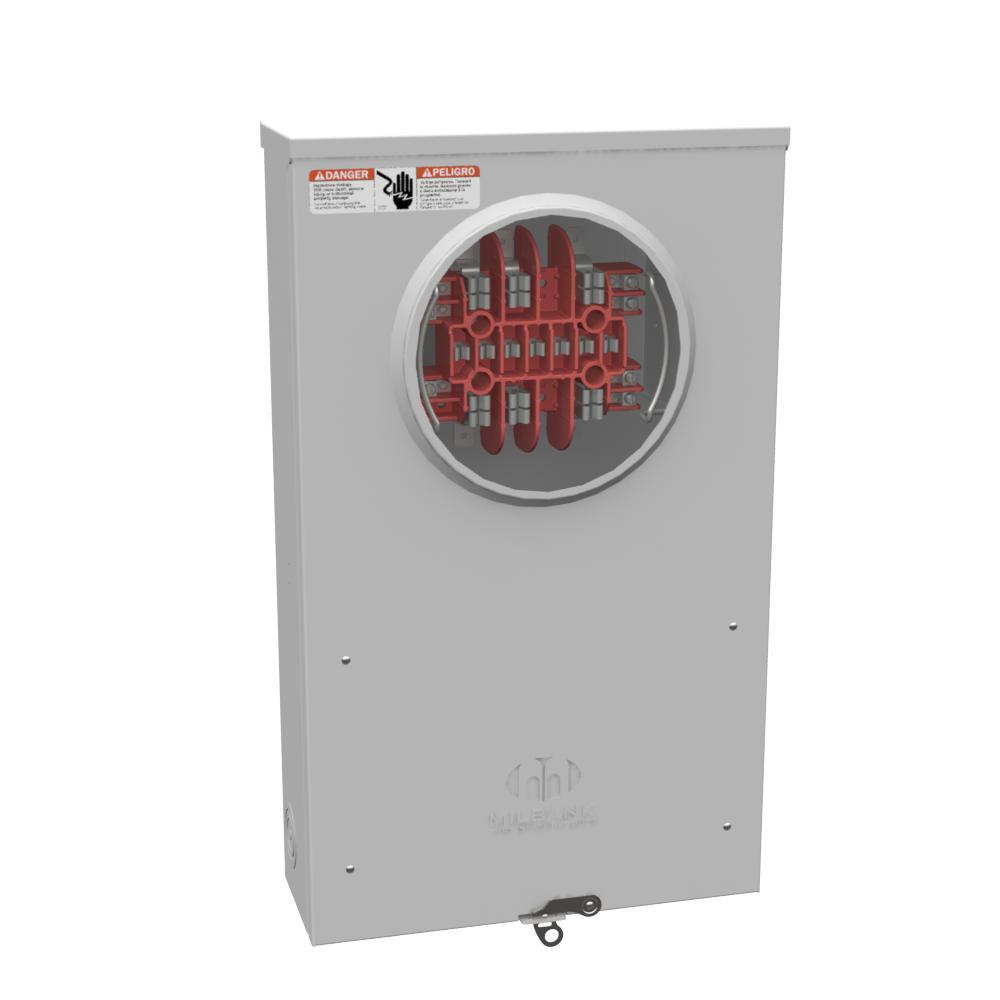

MILBANK CE-136-CECHA CT RATED METER SOCKET 6T PREWIRED WITH 6 POLE TEST SWITCH TS06-0205 EXELON APP

Mouse over image to zoom, click to enlarge

  • MILBANK CE-136-CECHA CT RATED METER SOCKET 6T PREWIRED WITH 6 POLE TEST SWITCH TS06-0205 EXELON APP
  • MILBANK CE-136-CECHA CT RATED METER SOCKET 6T PREWIRED WITH 6 POLE TEST SWITCH TS06-0205 EXELON APP
  • MILBANK CE-136-CECHA CT RATED METER SOCKET 6T PREWIRED WITH 6 POLE TEST SWITCH TS06-0205 EXELON APP
  • MILBANK CE-136-CECHA CT RATED METER SOCKET 6T PREWIRED WITH 6 POLE TEST SWITCH TS06-0205 EXELON APP
  • MILBANK CE-136-CECHA CT RATED METER SOCKET 6T PREWIRED WITH 6 POLE TEST SWITCH TS06-0205 EXELON APP

Description: Milbank® Meter Socket, 1-Position, 600 V AC, 20 A, 3 Phase, 60 Hz Frequency, Overhead/Underground Feed, 13 Jaws, 10 AWG Wire, Plain Top Hub, Ringless Cover, Single Mechanical Terminal, Surface Mounting, NEMA 3R Enclosure, 20 in H x 12 in W x 4-1/8 in D Dimensions

Manufacturer PN: CE136-CECHA

UPC:  78457211206

Kendall Electric Inc PN: 4366337

Invoice Description:

MILBANK CE-136-CECHA CT RATED METER SOCKET 6T PREWIRED WITH 6 POLE TEST SWITCH TS06-0205 EXELON APP


SPEC SHEET

▸ See All in Meter Sockets - Transformer Rated


How Can We Make This Page Better?

Milbank® CE1313-CECHA 1-Position Meter Socket, 600 V AC, 20 A, 3 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Milbank® Meter Socket, 1-Position, 600 V AC, 20 A, 3 Phase, 60 Hz Frequency, Overhead/Underground Feed, 13 Jaws, 10 AWG Wire, Plain Top Hub, Ringless Cover, Single Mechanical Terminal, Surface Mounting, NEMA 3R Enclosure, 20 in H x 12 in W x 4-1/8 in D Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Milbank
 Cover Type Ringless
 Dimensions 20 in H x 12 in W x 4-1/8 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Frequency Rating 60 Hz
 Hub Type Plain Top
 Manufacturer Part Number CE1313-CECHA
 Mounting Type Surface
 Number of Jaws 13
 Phase 3
 Standards/Approvals UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
 Terminal Type Single Mechanical
 Type 1-Position
 Voltage Rating 600 V AC

Features

▪ G90 galvanized steel with powder coat finish enclosure
