Schneider Electric

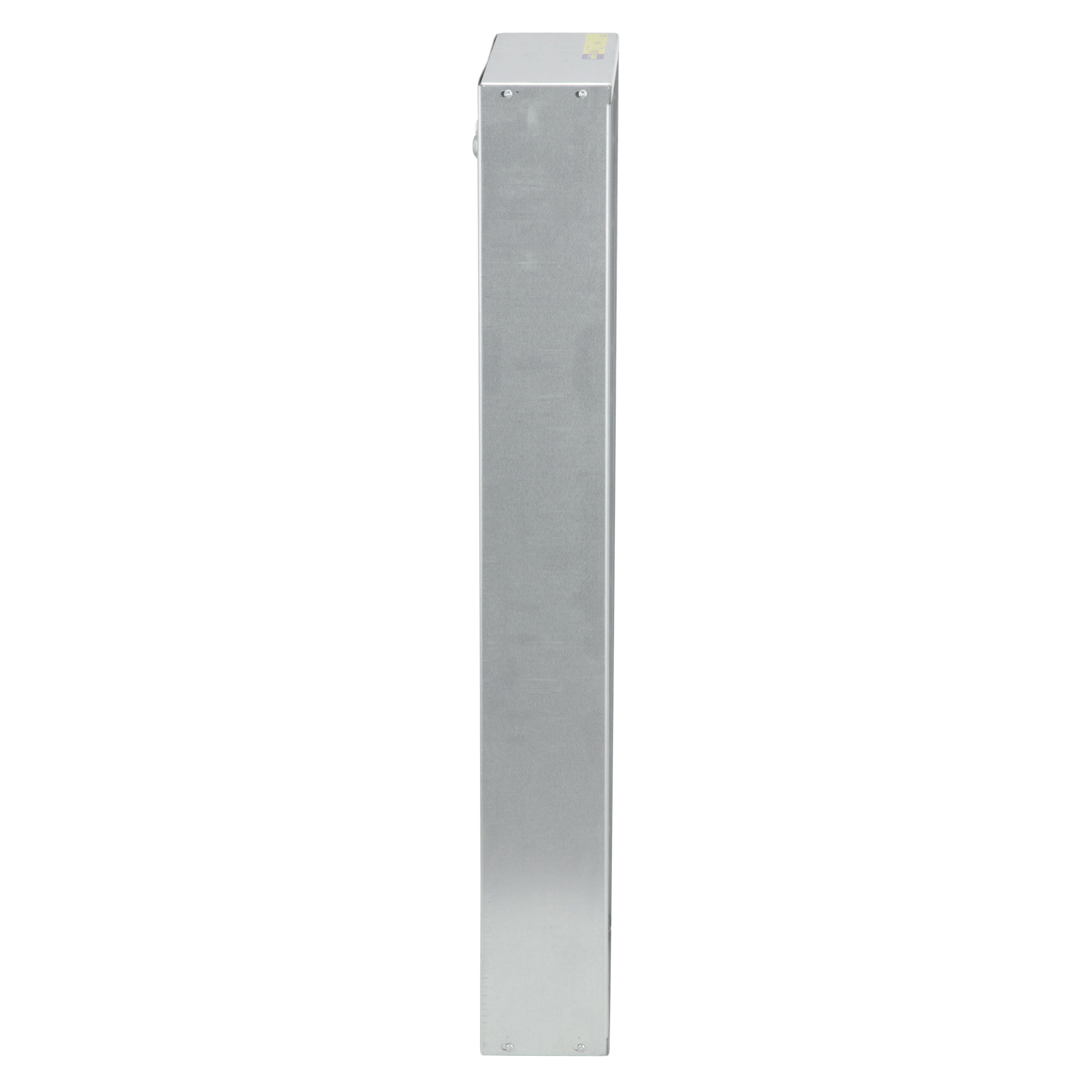

  • MH44BE SQD PANELBOARD ENCLOSURE/BOX
  • MH44BE SQD PANELBOARD ENCLOSURE/BOX
  • MH44BE SQD PANELBOARD ENCLOSURE/BOX

Description: Square D™ Panelboard Enclosure Box, 30-Feeder 4/3-Wire 1/3-ph NQ+NF Blank End Wall, Series: MH Series, 44 in Length, 20 in Width, 5-3/4 in D, Flush/Surface Mount, Steel, Hot Dipped Galvanized, NEMA 1

Manufacturer PN: MH44BE

UPC:  78590108269

Kendall Electric Inc PN: 3959899

Invoice Description:

MH44BE SQD PANELBOARD ENCLOSURE/BOX


SPEC SHEET

▸ See All in Panelboard Enclosures


How Can We Make This Page Better?

Square D™ MH44BE MH Series 30-Feeder 4/3-Wire 1/3-ph NQ+NF Blank End Wall Panelboard Enclosure Box, NEMA 1 NEMA Rating, 44 in L x 20 in W x 5-3/4 in D, Steel

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 1 with removable blank end walls at both ends. The enclosure dimensions are 20 inch width x 44 inch height x 5.75 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.
Square D™ Panelboard Enclosure Box, 30-Feeder 4/3-Wire 1/3-ph NQ+NF Blank End Wall, Series: MH Series, 44 in Length, 20 in Width, 5-3/4 in D, Flush/Surface Mount, Steel, Hot Dipped Galvanized, NEMA 1

Specifications

 Application For NQ and NF Panelboard applications
 Brand Name Square D
 Depth 5-3/4 in
 Finish Hot Dipped Galvanized
 Length 44 in
 Manufacturer Part Number MH44BE
 Material Steel
 Mounting Type Flush/Surface
 NEMA Rating NEMA 1
 PART NUMBER KEYWORDS MH44BE ; 8010323 ; 785901082699 ; 78590108269 ; 00785901082699 ; 0785901082699
 Series MH Series
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 67|REACH Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Type 30-Feeder 4/3-Wire 1/3-ph NQ+NF Blank End Wall
 Width 20 in

Features

▪ Modular construction allows for easy assembly or modification
▪ Accessories and replacement parts allow design flexibility and maximizes job productivity
▪ Type 1, 2, 3R/5/12 available ready to install from distributor inventory
▪ Modular construction accepts field installable accessories
