Schneider Electric
  • MH38 SQD PANELBOARD ENCLOSURE/BOX
  • MH38 SQD PANELBOARD ENCLOSURE/BOX
  • MH38 SQD PANELBOARD ENCLOSURE/BOX
  • MH38 SQD PANELBOARD ENCLOSURE/BOX

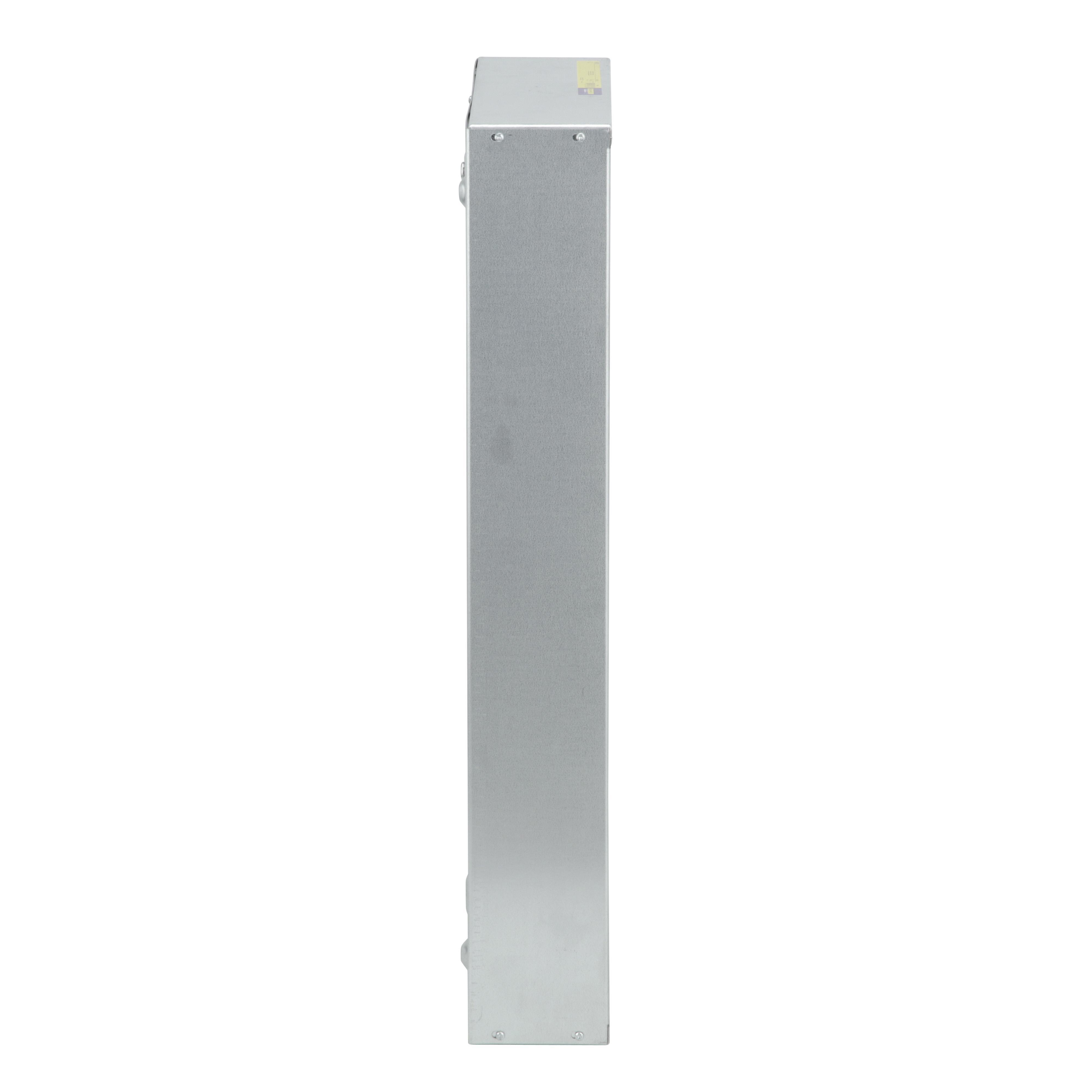

Description: Square D™, MH38, Enclosure Box, 1-ph 3-Wire NQ+NF, Series: MH Series, 38 in Length, 20 in Width, 5-3/4 in Depth, Flush/Surface Mounting, Steel, Hot Dipped Galvanized, NEMA 1 NEMA Rating

Manufacturer PN: MH38

UPC:  78590137888

Kendall Electric Inc PN: 4004440

Invoice Description:

MH38 SQD PANELBOARD ENCLOSURE/BOX


SPEC SHEET

How Can We Make This Page Better?

Square D™ MH38 MH Series 1-ph 3-Wire NQ+NF Enclosure Box, NEMA 1 NEMA Rating, 38 in L x 20 in W x 5-3/4 in D, Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 1 with one blank end wall and one end wall with knockouts for common conduit sizes. The enclosure dimensions are 20 inch width x 38 inch height x 5.75 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.
Square D™, MH38, Enclosure Box, 1-ph 3-Wire NQ+NF, Series: MH Series, 38 in Length, 20 in Width, 5-3/4 in Depth, Flush/Surface Mounting, Steel, Hot Dipped Galvanized, NEMA 1 NEMA Rating

Specifications

 Application For NQ and NF Panelboard applications
 Brand Name Square D
 Depth 5-3/4 in
 Finish Hot Dipped Galvanized
 Length 38 in
 Manufacturer Part Number MH38
 Material Steel
 Mounting Type Flush/Surface
 NEMA Rating NEMA 1
 PART NUMBER KEYWORDS MH38 ; 8017279 ; 785901378884 ; 78590137888 ; 00785901378884 ; 0785901378884
 Series MH Series
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 67|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Type 1-ph 3-Wire NQ+NF
 Video Links
 Width 20 in

Features

▪ Modular construction allows for easy assembly or modification
▪ Accessories and replacement parts allow design flexibility and maximizes job productivity
▪ Type 1, 2, 3R/5/12 available ready to install from distributor inventory
▪ Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
