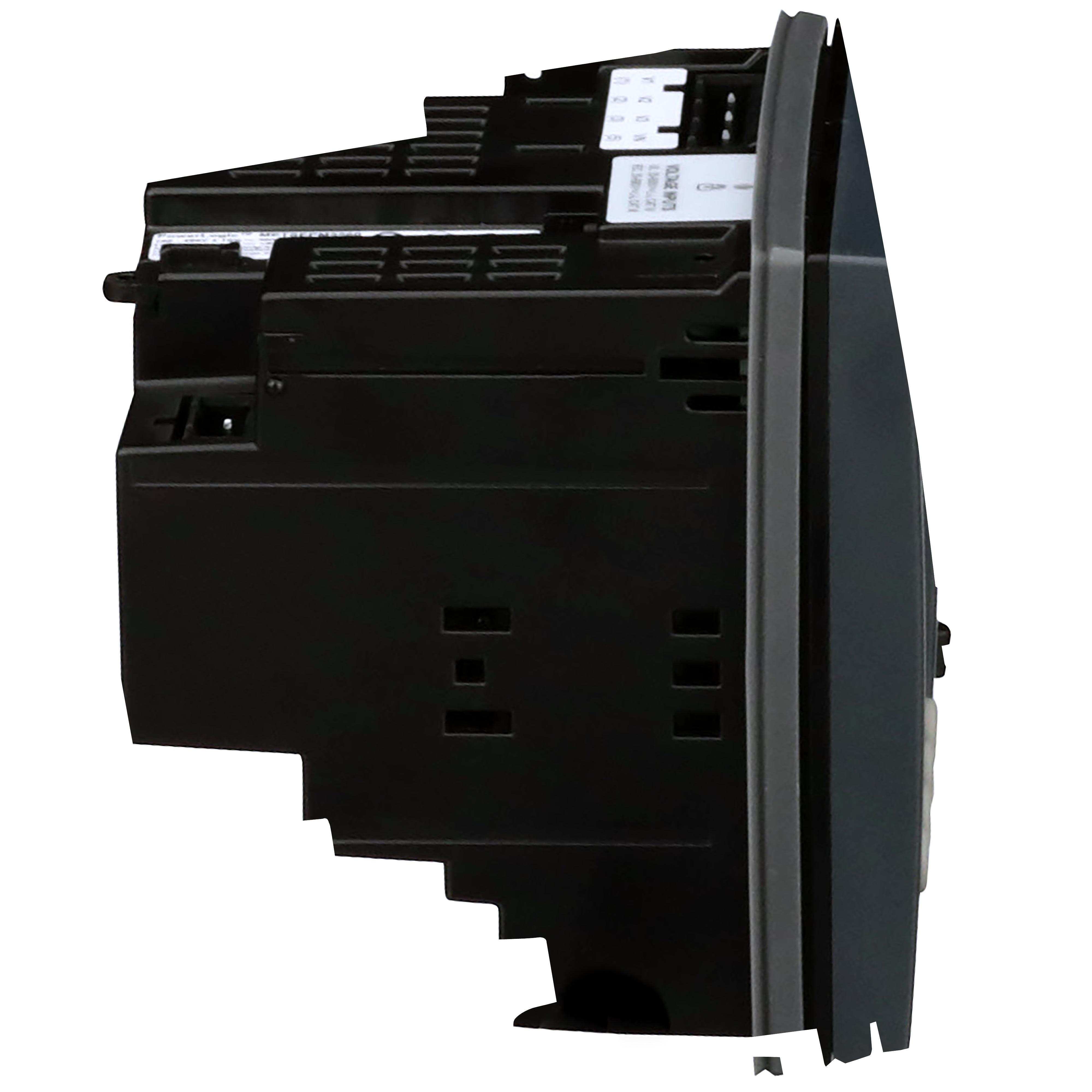

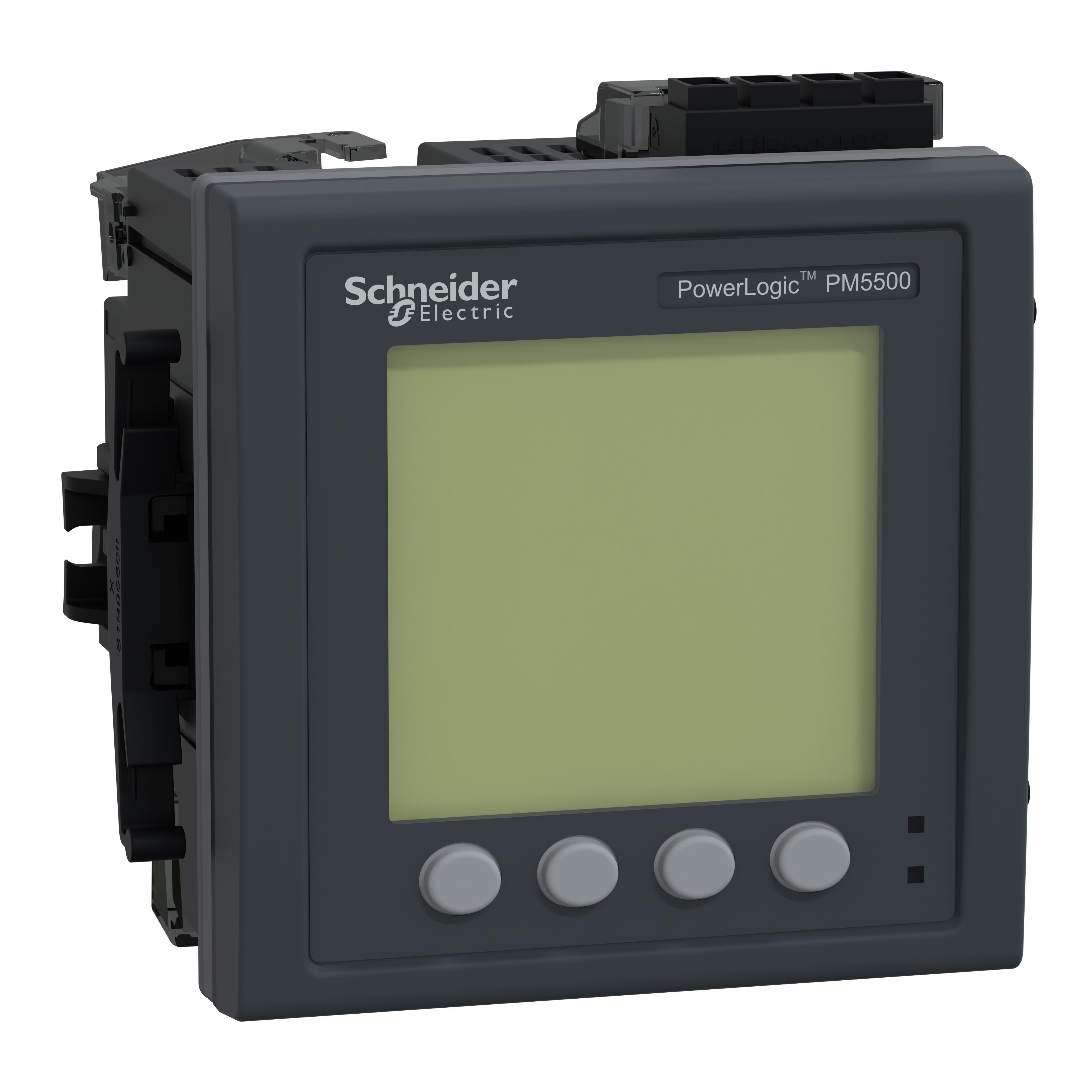

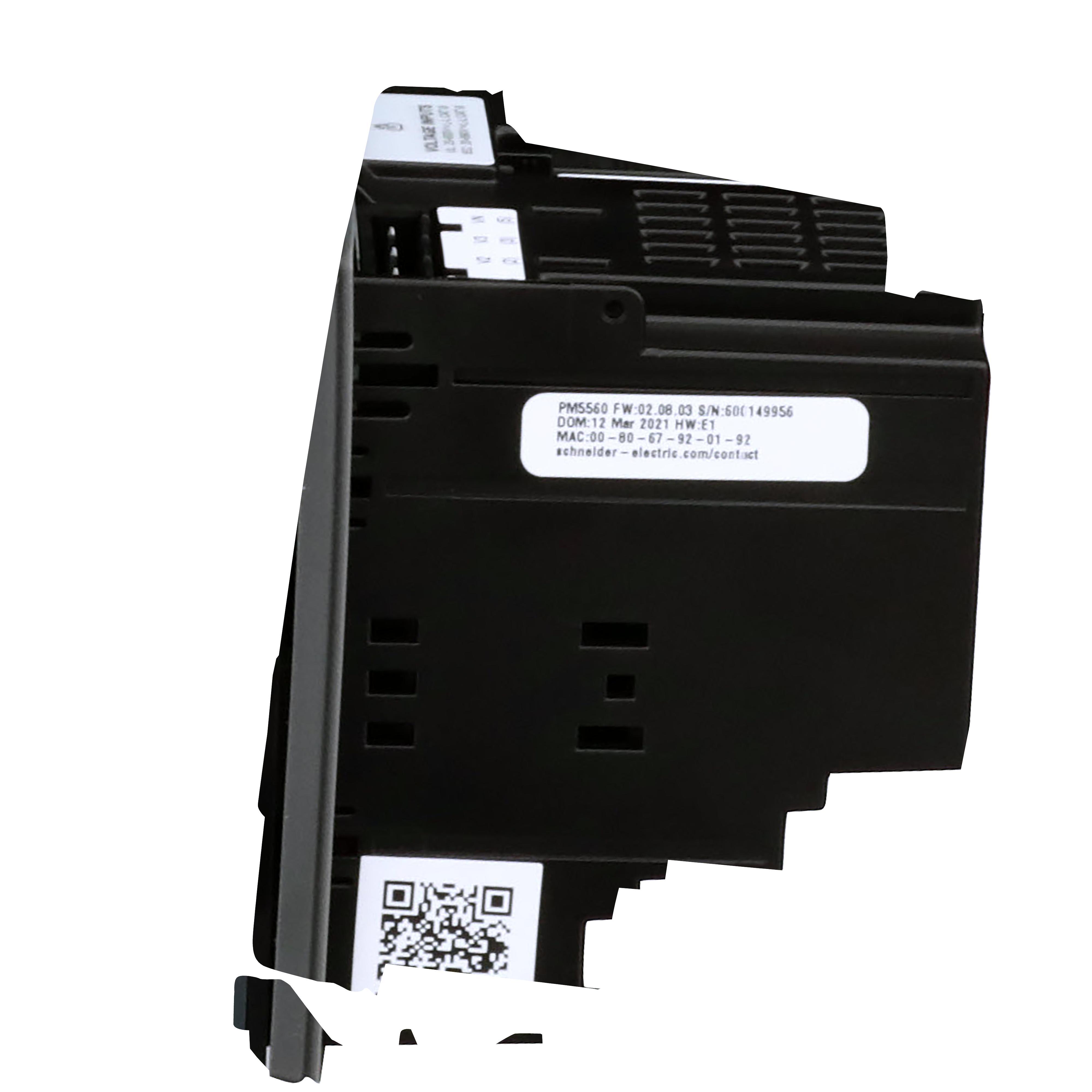

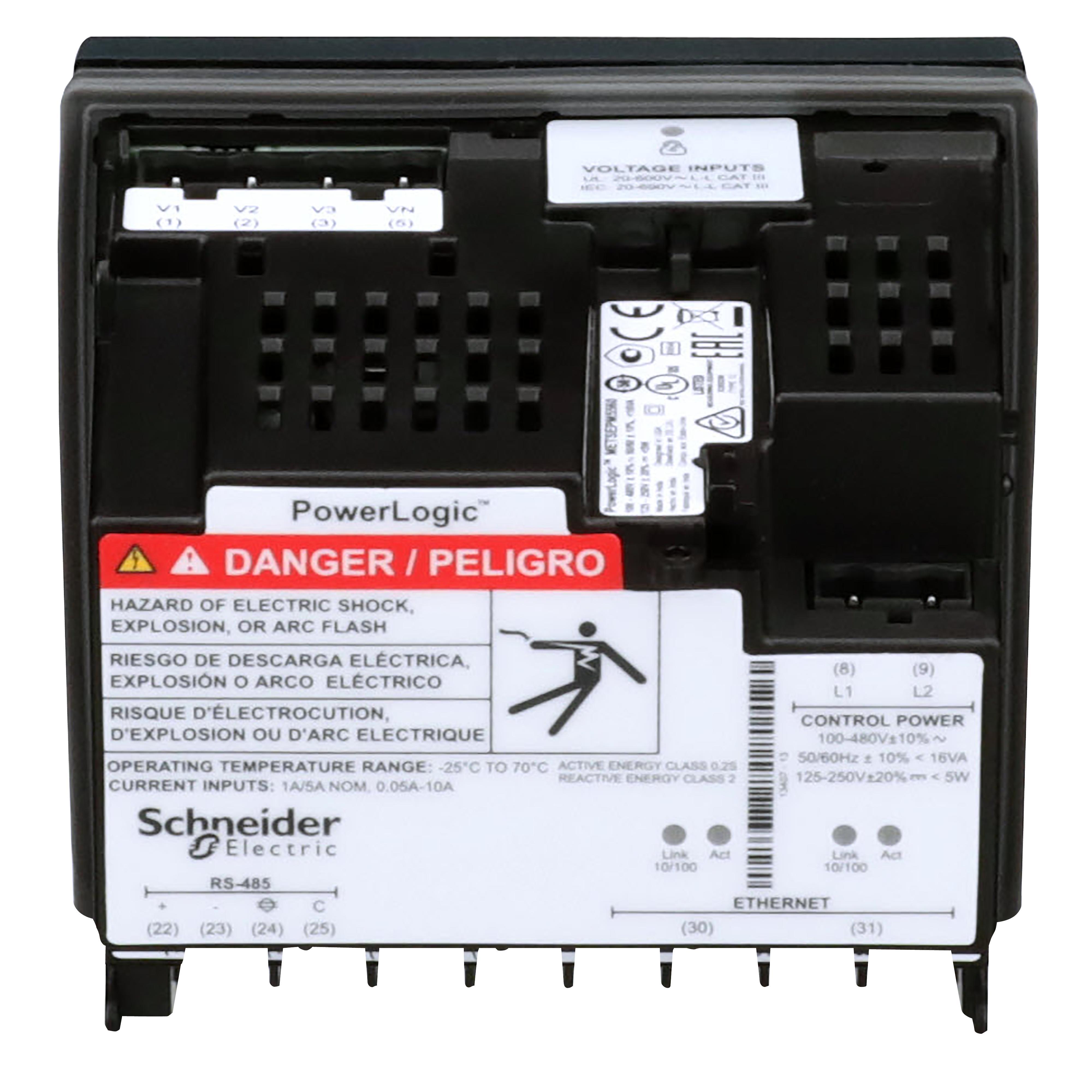

Description: Schneider Electric PowerLogic® Power Meter, Series: 5000, 100/480 V AC/125/250 V DC, 1 to 5 A, 50/60 Hz, +/-0.2 % Accuracy, LCD, 3 ph, IP30/IP52, 1.1 MB Logging Memory, 3.78 in W x 2.83 in D x 3.78 in H

Manufacturer PN: METSEPM5560

UPC:  60648061406

Kendall Electric Inc PN: 3963014

Invoice Description:

METSEPM5560 SQD INTERMEDIATE POWER


SPEC SHEET

▸ See All in Power Monitors


How Can We Make This Page Better?

Schneider Electric PowerLogic® METSEPM5560 5000 Power Meter, 100/480 V AC/125/250 V DC, 1 to 5 A, 50/60 Hz

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).
Schneider Electric PowerLogic® Power Meter, Series: 5000, 100/480 V AC/125/250 V DC, 1 to 5 A, 50/60 Hz, +/-0.2 % Accuracy, LCD, 3 ph, IP30/IP52, 1.1 MB Logging Memory, 3.78 in W x 2.83 in D x 3.78 in H

Specifications

 Accuracy +/-0.2 %
 Amperage Rating 1 to 5 A
 Application For high-end cost management, WAGES metering, gateway, multi-tariff and power monitoring
 Brand Name Square D
 Dimensions 3.78 in W x 2.83 in D x 3.78 in H
 Enclosure IP30/IP52
 Frequency Rating 50/60 Hz
 Logging Memory 1.1 MB
 Manufacturer Part Number METSEPM5560
 PART NUMBER KEYWORDS METSEPM5560 ; 13599242 ; 785901977247 ; 78590197724 ; 03606480614064 ; 3606480614064
 Phase 3
 Series 5000
 Standards/Approvals EN 50470-3;IEC 61557-12:2015;IEC 62053-22:2020;IEC 62053-24;IEC 60529;EN 50470-1;UL 61010-1;ANSI C12.20;IEC 62053-23:2020;IEC 62052-11:2020;IEC 62052-31:2015;CE conforming to IEC 61010-1;cULus conforming to UL 61010-1;BTL
 Voltage Rating 100/480 V AC/125/250 V DC

Features

▪ Feature-rich power and energy meters
▪ Digital input and output for WAGES monitoring and control relays
▪ Identify energy savings opportunities with precision accuracy of Class 0.2S
▪ 63rd Harmonic measurement for Power Quality management
