Eaton

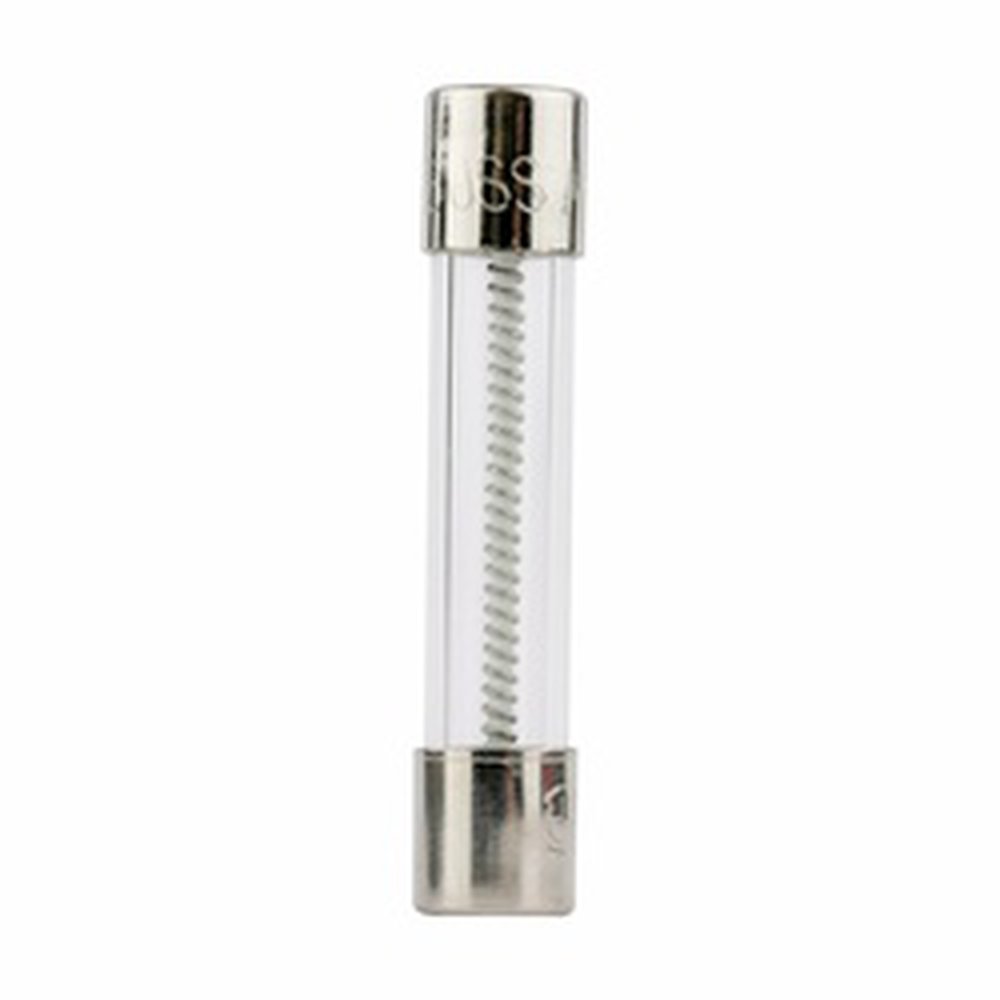

MDL-8-R BUS SMALL DIMENSION FUSE (5)

Mouse over image to zoom, click to enlarge

Description: Bussmann Time Delay Fuse, Series: MDL, Non-Indicating, Non-Rejection, 8 A, 250 V AC, 200 A/10 kA Interrupt, 60 min, 120 s, 12 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Manufacturer PN: MDL-8-R

UPC:  05171265237

Kendall Electric Inc PN: 2894872

Invoice Description:

MDL-8-R BUS SMALL DIMENSION FUSE (5)


SPEC SHEET

▸ See All in Electronic Fuses


How Can We Make This Page Better?

Bussmann MDL-8-R Time Delay Fuse With Nickel Plated Brass End Caps, 8 A, 250 V AC, 200 A/10 kA Interrupt, Cylindrical Body

Log In for Pricing and Availability




Description

Bussmann Time Delay Fuse, Series: MDL, Non-Indicating, Non-Rejection, 8 A, 250 V AC, 200 A/10 kA Interrupt, 60 min, 120 s, 12 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Specifications

 Amperage Rating 8 A
 Application Electronic Circuit Applications
 Body Size 1/4 in Dia x 1-1/4 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number MDL-8-R
 Material Glass
 Mounting Type Holder
 PART NUMBER KEYWORDS MDL-8-R ; MDL8R ; 9383720 ; 051712652377 ; 51712652377 ; 05171265237 ; 00051712652377
 Rejection Non Rejection Non-Rejection
 Response Time 60 min, 120 s, 12 s
 Series MDL
 Standards/Approvals RoHS Compliant|CE Certified|UL 248-14 Guide JDYX|UL File No. E19180|CSA 1422-0
 Terminal Type Ferrule
 Video Links
 Voltage Rating 250 V AC

Features

▪ Time delay allows close sizing on inductive circuits
▪ 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
▪ 60 min maximum at 135%, 12 sec minimum at 200%, 120 sec maximum at 200% response time

Resources

 Catalog
 Catalog Page
 Product Data Sheet
