Eaton

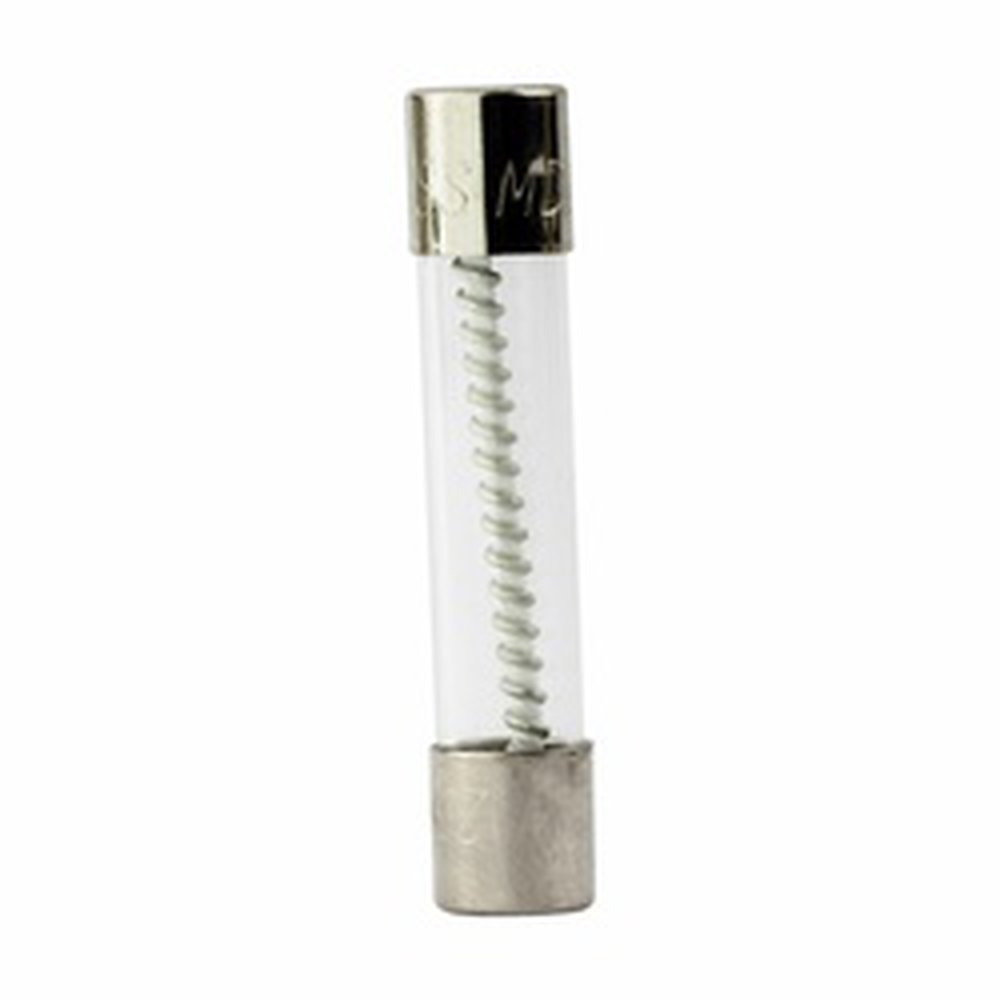

MDL-7-R BUS SMALL DIMENSION FUSE

Mouse over image to zoom, click to enlarge

Description: Bussmann, MDL-7-R, Time Delay Fuse, Electronic Small Dimension, Series: MDL, Non-Indicating, Non-Rejection, 7 A, 250 V AC, 200 A/10 kA Interrupt, 60 min, 120 s, 12 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Manufacturer PN: MDL-7-R

UPC:  05171265234

Kendall Electric Inc PN: 2740409

Invoice Description:

MDL-7-R BUS SMALL DIMENSION FUSE


SPEC SHEET

▸ See All in Electronic Fuses


How Can We Make This Page Better?

Bussmann MDL-7-R MDL Electronic Small Dimension Time Delay Fuse, 7 A, 250 V AC, 200 A/10 kA Interrupt, Cylindrical Body

Log In for Pricing and Availability




Description

Bussmann, MDL-7-R, Time Delay Fuse, Electronic Small Dimension, Series: MDL, Non-Indicating, Non-Rejection, 7 A, 250 V AC, 200 A/10 kA Interrupt, 60 min, 120 s, 12 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Specifications

 Amperage Rating 7 A
 Application Electronic Circuit Applications
 Body Size 1/4 in Dia x 1-1/4 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number MDL-7-R
 Material Glass
 Mounting Type Holder
 PART NUMBER KEYWORDS MDL-7-R ; MDL7R ; 9383717 ; 9493897 ; 051712652346 ; 51712652346 ; 05171265234 ; 00051712652346
 Rejection Non Rejection Non-Rejection
 Response Time 60 min, 120 s, 12 s
 Series MDL
 Standards/Approvals RoHS Compliant|CE Certified|RoHS 2011/65/EU|UL 248-14, Guide JDYX, File No. E19180|CSA Class No. 1422-01
 Terminal Type Ferrule
 Type Electronic Small Dimension
 Video Links
 Voltage Rating 250 V AC

Features

▪ Time delay allows close sizing on inductive circuits
▪ 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
▪ Glass tube with nickel plated brass end caps
▪ 60 min maximum at 135% of ampere rating, 12 s minimum, 120 s maximum at 200% of ampere rating response time

Resources

 Catalog
 Catalog Page
 Product Data Sheet
