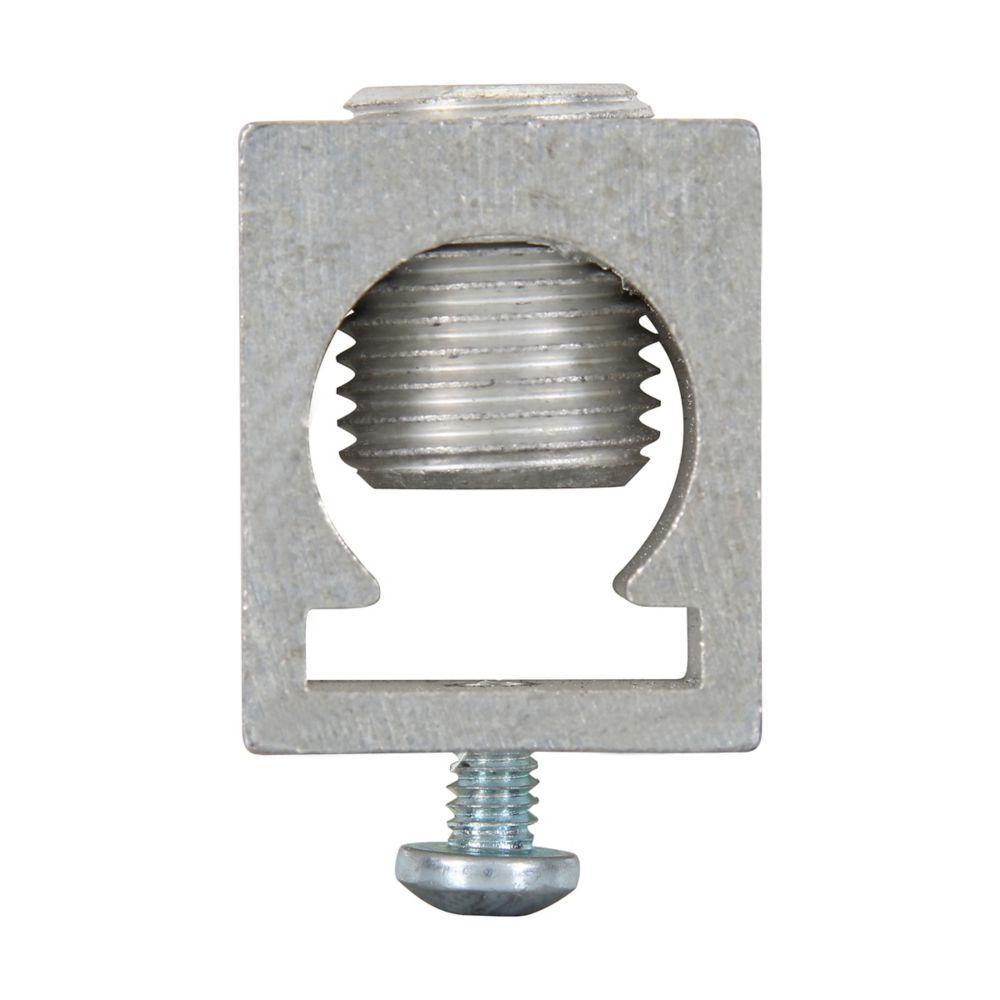

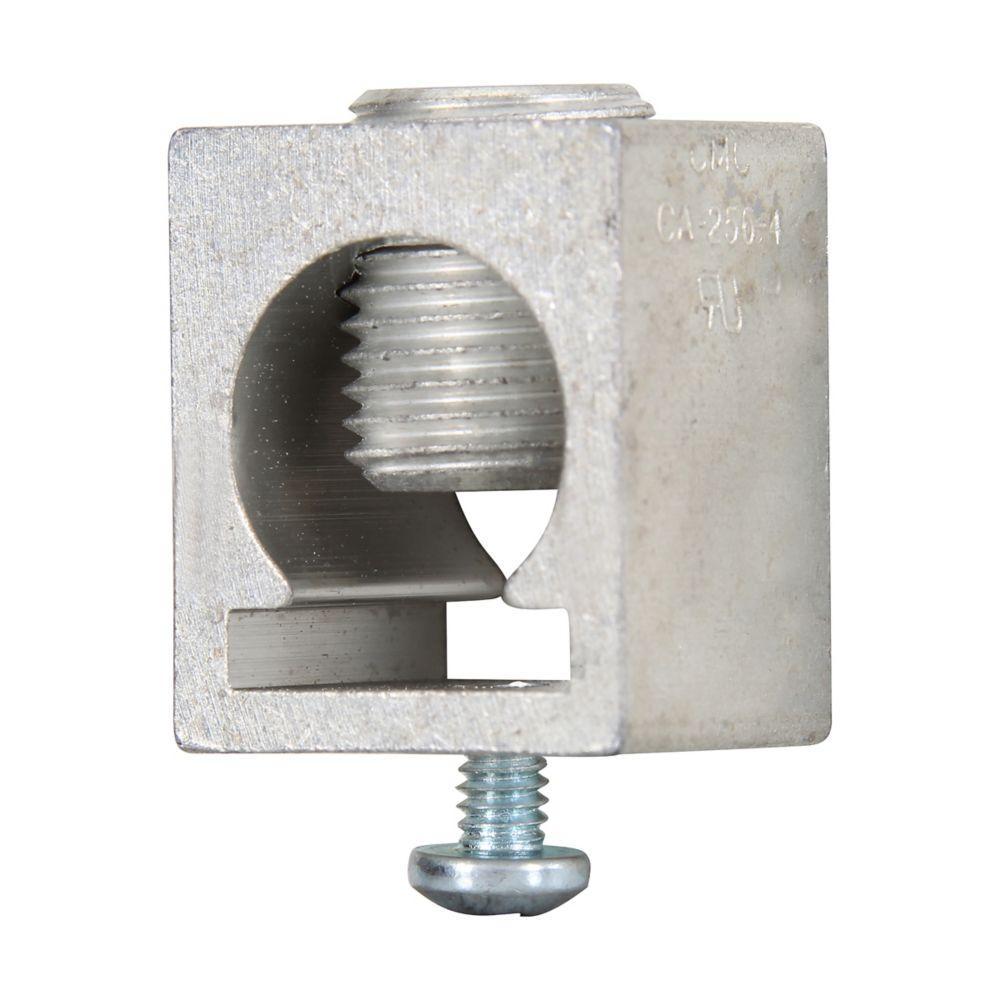

Description: EATON Main Breaker Lug Kit, 300 A, 10 kA Interrupt Rating, 2 AWG to 300 kcmil Copper/Aluminum at 60 or 75 deg C, For Use With: Type BW/CSR Circuit Breaker and Type CH/CSR 3/4 in Loadcenter, 1.1 in L x 1.1 in W x 1.1 in H

Manufacturer PN: MCBL300

UPC: 78211309931

Kendall Electric Inc PN: 2251647

Invoice Description:

MCBL300 C-H Main Breaker Lug Kit

SPEC SHEET

▸ See All in Load Center Conversion Kits

How Can We Make This Page Better?

EATON MCBL300 Main Breaker Lug Kit, For Use With Type BW/CSR Circuit Breaker and Type CH/CSR 3/4 in Loadcenter

Description Specifications Resources

Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Breaker Lug Kit, 300 A, 10 kA Interrupt Rating, 2 AWG to 300 kcmil Copper/Aluminum at 60 or 75 deg C, For Use With: Type BW/CSR Circuit Breaker and Type CH/CSR 3/4 in Loadcenter, 1.1 in L x 1.1 in W x 1.1 in H

Specifications

Brand Name	EATON
Dimensions	1.1 in L x 1.1 in W x 1.1 in H
Manufacturer Part Number	MCBL300
PART NUMBER KEYWORDS	MCBL300 ; 7335277 ; 782113099316 ; 78211309931 ; 00782113099316
Specifications	300 A, 10 kA Interrupt Rating, 2 AWG to 300 kcmil Copper/Aluminum at 60 or 75 deg C
Standards/Approvals	Contact Manufacturer
Suitable For Use With	Type BW/CSR Circuit Breaker and Type CH/CSR 3/4 in Loadcenter
