Eaton

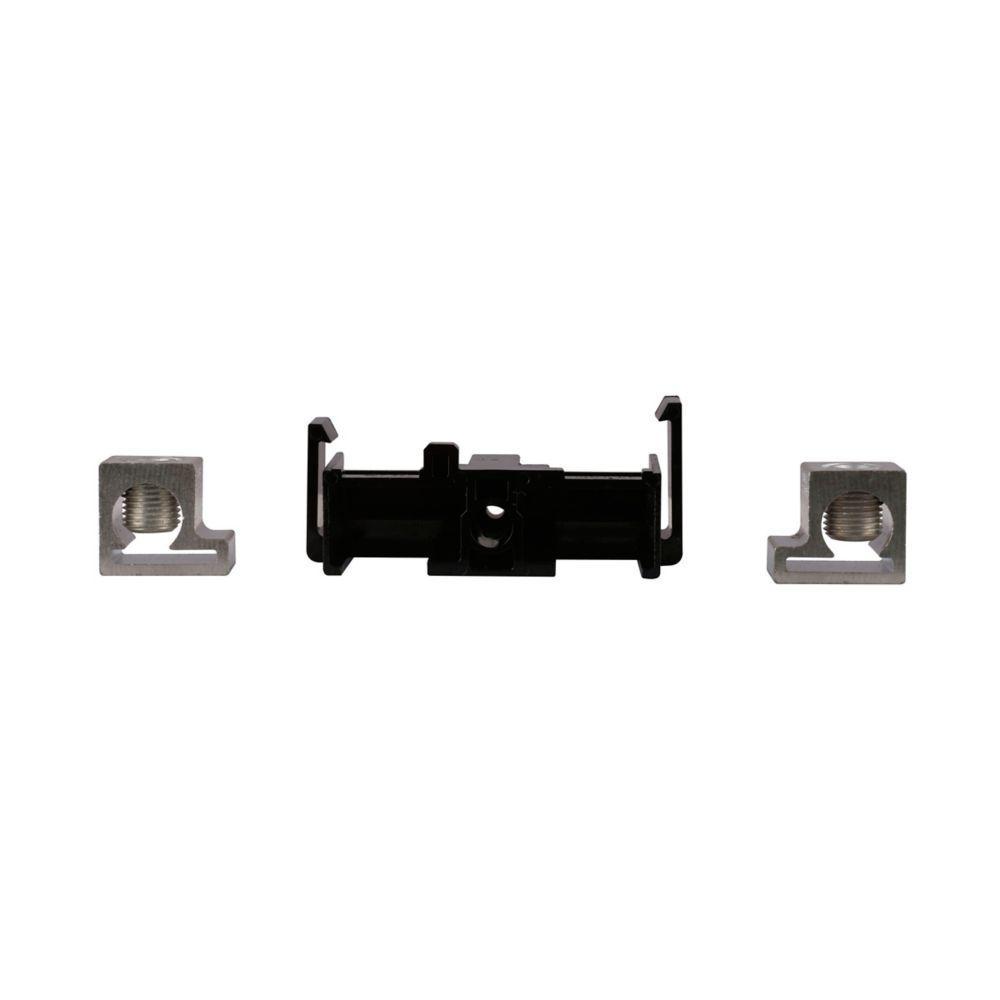

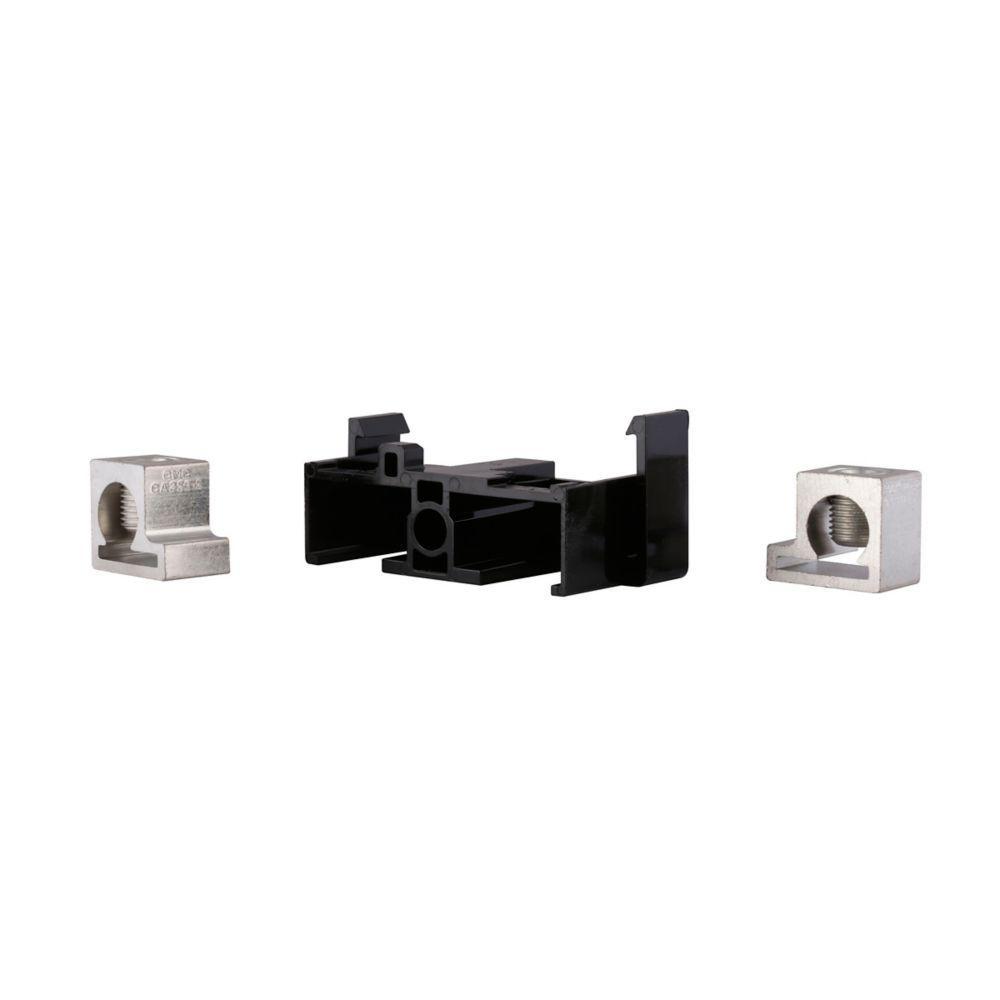

MCBK225 C-H Lug Tree Kit

Mouse over image to zoom, click to enlarge

  • MCBK225 C-H Lug Tree Kit
  • MCBK225 C-H Lug Tree Kit
  • MCBK225 C-H Lug Tree Kit

Description: EATON Lug Tree Kit, Load Side, 240 V AC, 225 A, 10 kA Interrupt Rating, 2 AWG to 300 kcmil Copper/Aluminum at 60 or 75 deg C, For Use With: ECB Unit Enclosure, Type CH 3/4 in Loadcenter and 125-225ACSR Breaker, 5 in L x 2 in W x 3 in H

Manufacturer PN: MCBK225

UPC:  78211411059

Kendall Electric Inc PN: 2249629

Invoice Description:

MCBK225 C-H Lug Tree Kit


SPEC SHEET

How Can We Make This Page Better?

EATON MCBK225 Load Side Lug Tree Kit, For Use With ECB Unit Enclosure, Type CH 3/4 in Loadcenter and 125-225ACSR Breaker

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Lug Tree Kit, Load Side, 240 V AC, 225 A, 10 kA Interrupt Rating, 2 AWG to 300 kcmil Copper/Aluminum at 60 or 75 deg C, For Use With: ECB Unit Enclosure, Type CH 3/4 in Loadcenter and 125-225ACSR Breaker, 5 in L x 2 in W x 3 in H

Specifications

 Application For replacement purposes
 Brand Name EATON
 Dimensions 5 in L x 2 in W x 3 in H
 Manufacturer Part Number MCBK225
 PART NUMBER KEYWORDS MCBK225 ; 7370907 ; 782114110591 ; 78211411059 ; 00782114110591
 Specifications 240 V AC, 225 A, 10 kA Interrupt Rating, 2 AWG to 300 kcmil Copper/Aluminum at 60 or 75 deg C
 Standards/Approvals Contact Manufacturer
 Suitable For Use With ECB Unit Enclosure, Type CH 3/4 in Loadcenter and 125-225ACSR Breaker
 Type Load Side

Resources

 Catalog Page
 Product Data Sheet
