Eaton

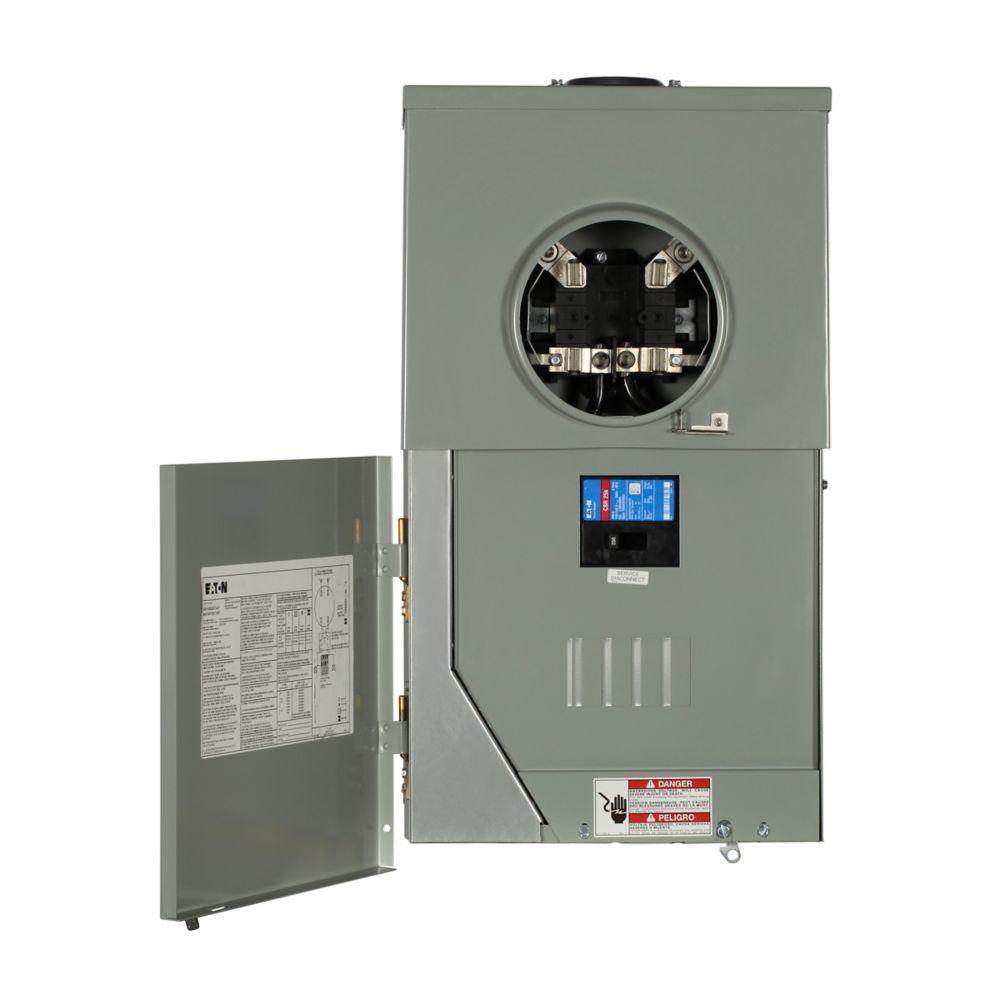

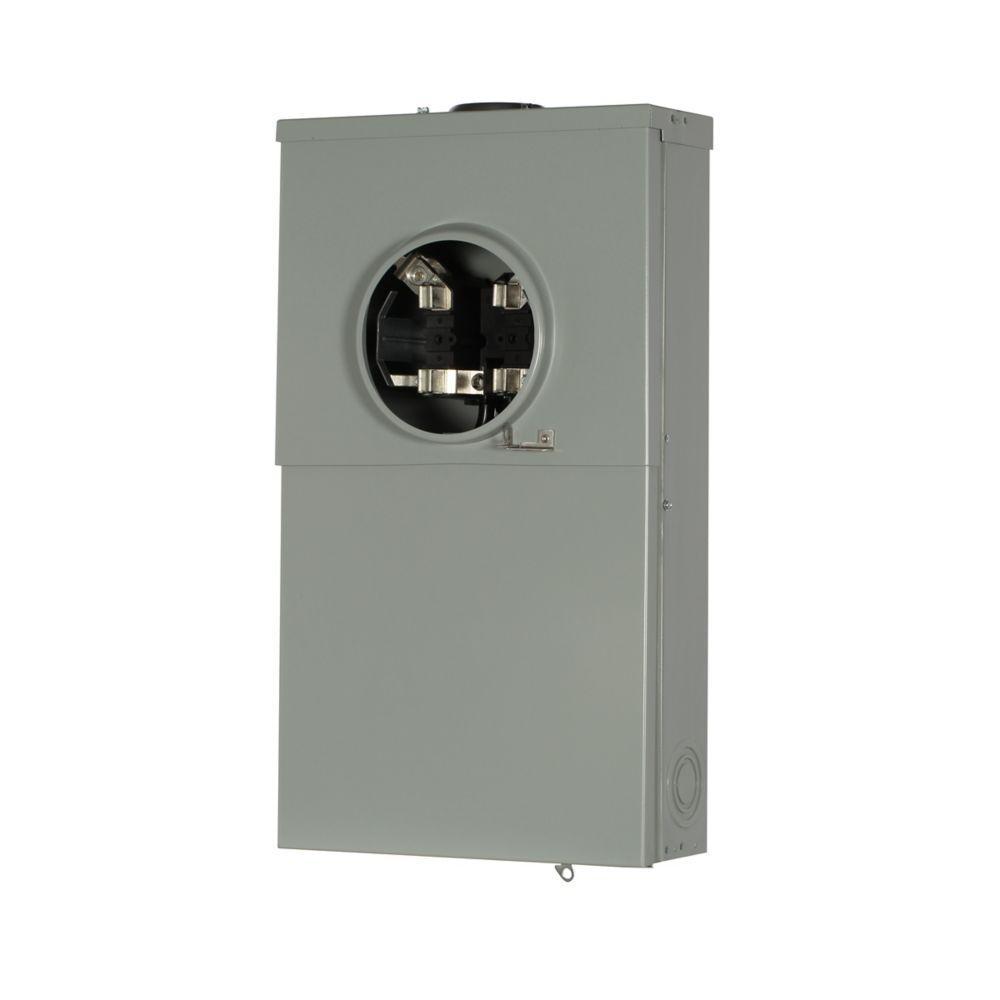

MBT48B200TSAP CH 200A METERBREAKER, SIDE WIRED-ALLEGHENY POWER TOP-FEED

Mouse over image to zoom, click to enlarge

  • MBT48B200TSAP CH 200A METERBREAKER, SIDE WIRED-ALLEGHENY POWER TOP-FEED
  • MBT48B200TSAP CH 200A METERBREAKER, SIDE WIRED-ALLEGHENY POWER TOP-FEED
  • MBT48B200TSAP CH 200A METERBREAKER, SIDE WIRED-ALLEGHENY POWER TOP-FEED

Description: EATON Meter Breaker, 8-Circuit Type BR All-In-One Non-Euserc Side Wired, 120/240 V AC, 200 A, 1 ph, Overhead/Top Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Ringless Cover, Side Wire Terminal, Surface Mounting, NEMA 3R Enclosure, 5.31 in L x 14.44 in W x 25.5 in H Dimensions

Manufacturer PN: MBT48B200TSAP

UPC:  78668546259

Kendall Electric Inc PN: 3976084

Invoice Description:

MBT48B200TSAP CH 200A METERBREAKER, SIDE WIRED-ALLEGHENY POWER TOP-FEED


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON MBT48B200TSAP 8-Circuit Type BR All-In-One Non-Euserc Side Wired Meter Breaker, 120/240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, 8-Circuit Type BR All-In-One Non-Euserc Side Wired, 120/240 V AC, 200 A, 1 ph, Overhead/Top Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Ringless Cover, Side Wire Terminal, Surface Mounting, NEMA 3R Enclosure, 5.31 in L x 14.44 in W x 25.5 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Power Distribution, Residential, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Cover Type Ringless
 Dimensions 5.31 in L x 14.44 in W x 25.5 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Top
 Manufacturer Part Number MBT48B200TSAP
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Standards/Approvals UL Listed
 Terminal Type Side Wire
 Type 8-Circuit Type BR All-In-One Non-Euserc Side Wired
 Voltage Rating 120/240 V AC

Features

▪ Larger 250 kcmil lugs and additional knockouts for ease of installation
