Eaton

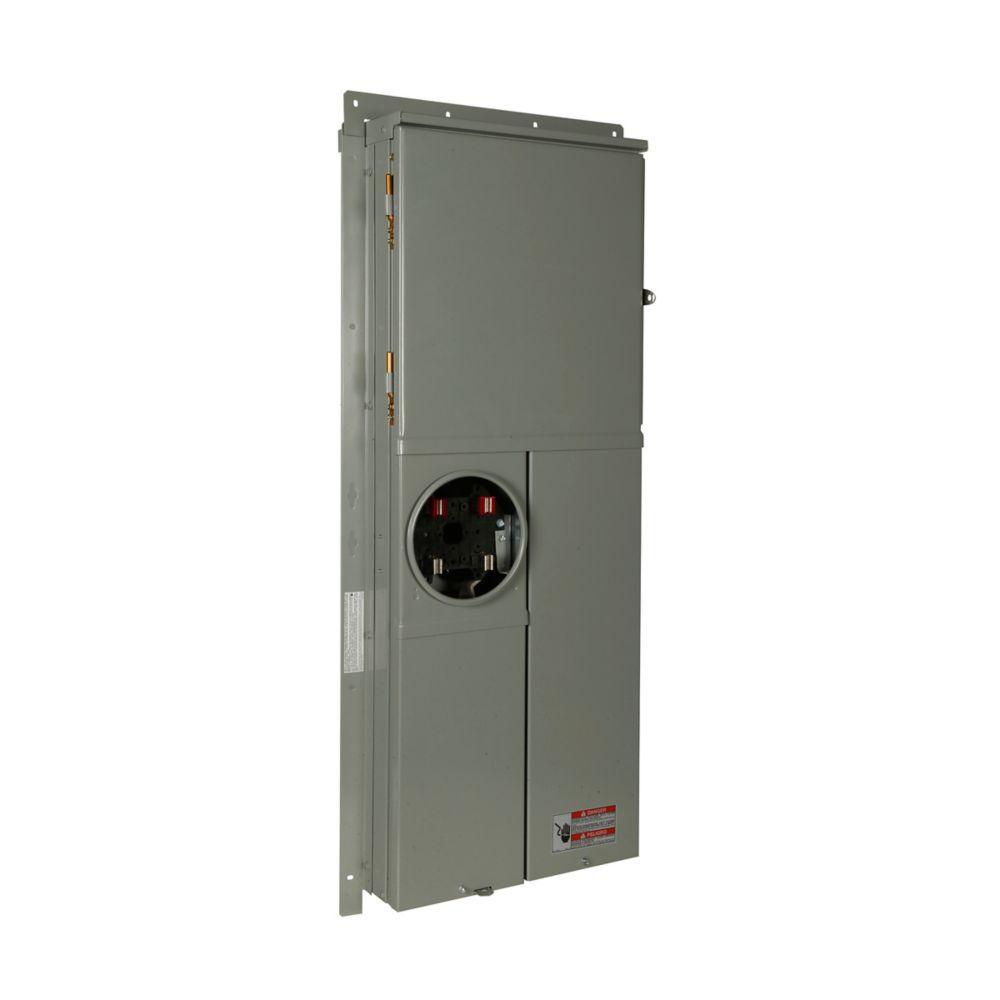

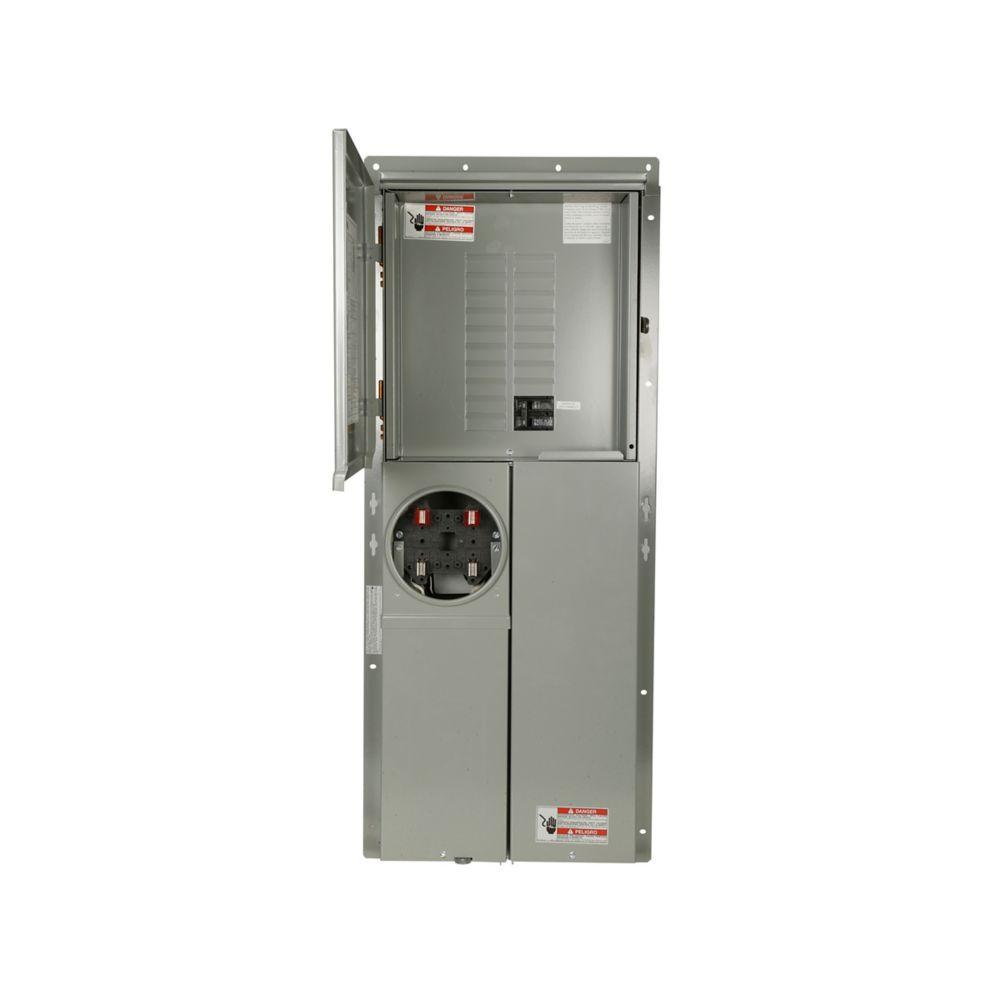

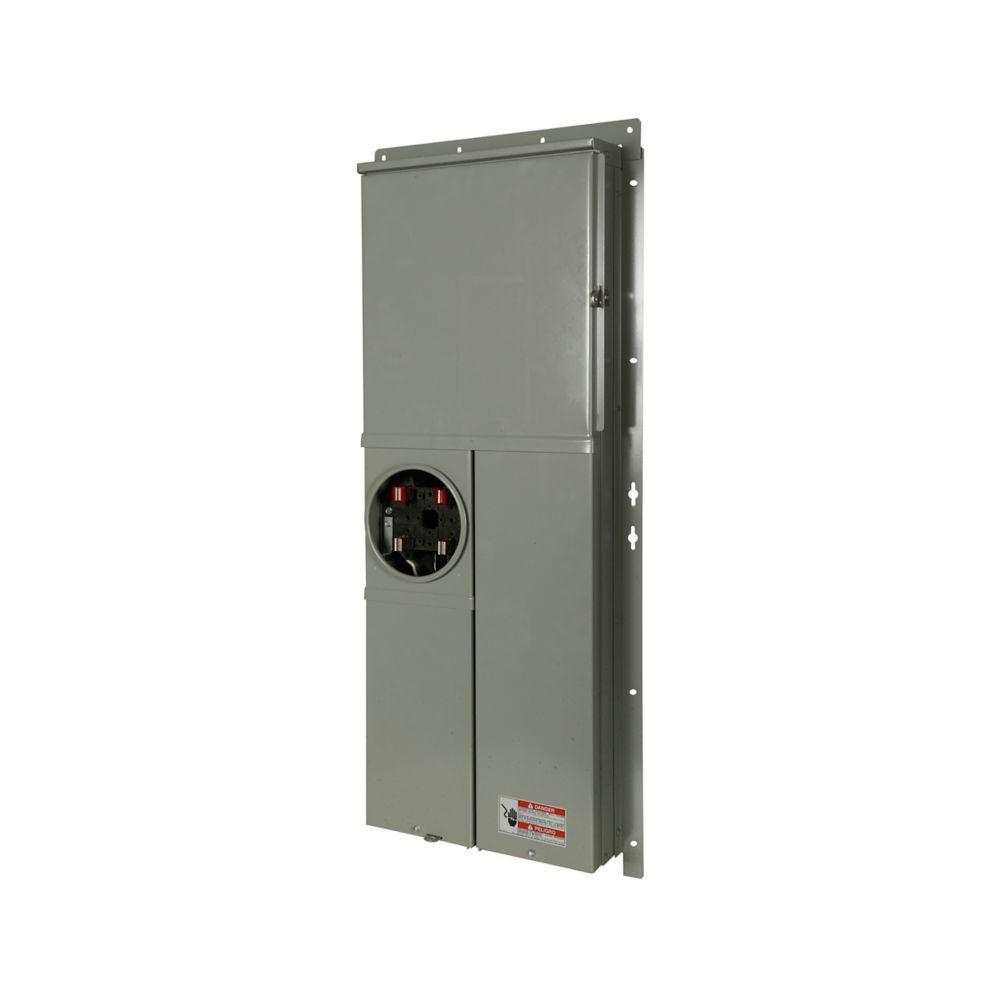

MBED1836B100BF CH 100A DEEP EUSERC BR METERBREAKER 18/36 INTERIOR BTM FEED

Mouse over image to zoom, click to enlarge

  • MBED1836B100BF CH 100A DEEP EUSERC BR METERBREAKER 18/36 INTERIOR BTM FEED
  • MBED1836B100BF CH 100A DEEP EUSERC BR METERBREAKER 18/36 INTERIOR BTM FEED
  • MBED1836B100BF CH 100A DEEP EUSERC BR METERBREAKER 18/36 INTERIOR BTM FEED
  • MBED1836B100BF CH 100A DEEP EUSERC BR METERBREAKER 18/36 INTERIOR BTM FEED

Description: EATON Meter Breaker, Type CH 36-Circuit 1-Socket 18-Space 3-Wire All-In-One Standard West Coast Combination Service Entrance, Series: MBED, 120/240 V AC, 100 A, 1 ph, Bottom/Underground Feed, 4 Jaws, 14 to 2/0 AWG Wire, Top Endwall, 1 in Hub, Ring Cover, Line/Load Terminal, Semi-Flush/Stucco Mount, NEMA 3R, 14.19 in W x 7 in D x 38 in H

Manufacturer PN: MBED1836B100BF

UPC:  78211614973

Kendall Electric Inc PN: 4846230

Invoice Description:

MBED1836B100BF CH 100A DEEP EUSERC BR METERBREAKER 18/36 INTERIOR BTM FEED


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON MBED1836B100BF MBED Type CH 36-Circuit 1-Socket 18-Space 3-Wire All-In-One Standard West Coast Combination Service Entrance Meter Breaker, 120/240 V AC, 100 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, Type CH 36-Circuit 1-Socket 18-Space 3-Wire All-In-One Standard West Coast Combination Service Entrance, Series: MBED, 120/240 V AC, 100 A, 1 ph, Bottom/Underground Feed, 4 Jaws, 14 to 2/0 AWG Wire, Top Endwall, 1 in Hub, Ring Cover, Line/Load Terminal, Semi-Flush/Stucco Mount, NEMA 3R, 14.19 in W x 7 in D x 38 in H

Specifications

 Amperage Rating 100 A
 Application Power Distribution, Electrical Assemblies, Panel, EOEM and Commercial Applications
 Brand Name EATON
 Cover Type Ring
 Dimensions 14.19 in W x 7 in D x 38 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Underground
 Hub Size 1 in
 Hub Type Top Endwall
 Includes BW2100 Main Breaker
 Manufacturer Part Number MBED1836B100BF
 Mounting Type Semi-Flush/Stucco
 Number of Jaws 4
 Phase 1
 Series MBED
 Standards/Approvals UL Listed,EUSERC Approved
 Terminal Type Line/Load
 Type Type CH 36-Circuit 1-Socket 18-Space 3-Wire All-In-One Standard West Coast Combination Service Entrance
 Voltage Rating 120/240 V AC

Features

▪ Larger 250 kcmil lugs and additional knockouts for ease of installation
▪ Factory installed neutral assemblies
▪ Hub provisions on top endwall
▪ Ring type sockets are provided with a sealing ring
▪ Padlockable device covers provide an additional measure of security and help prevent tampering
▪ Most units have center keyhole for easy one person installation
▪ Without distribution section

Resources

 Catalog Page
 Product Data Sheet
