Eaton

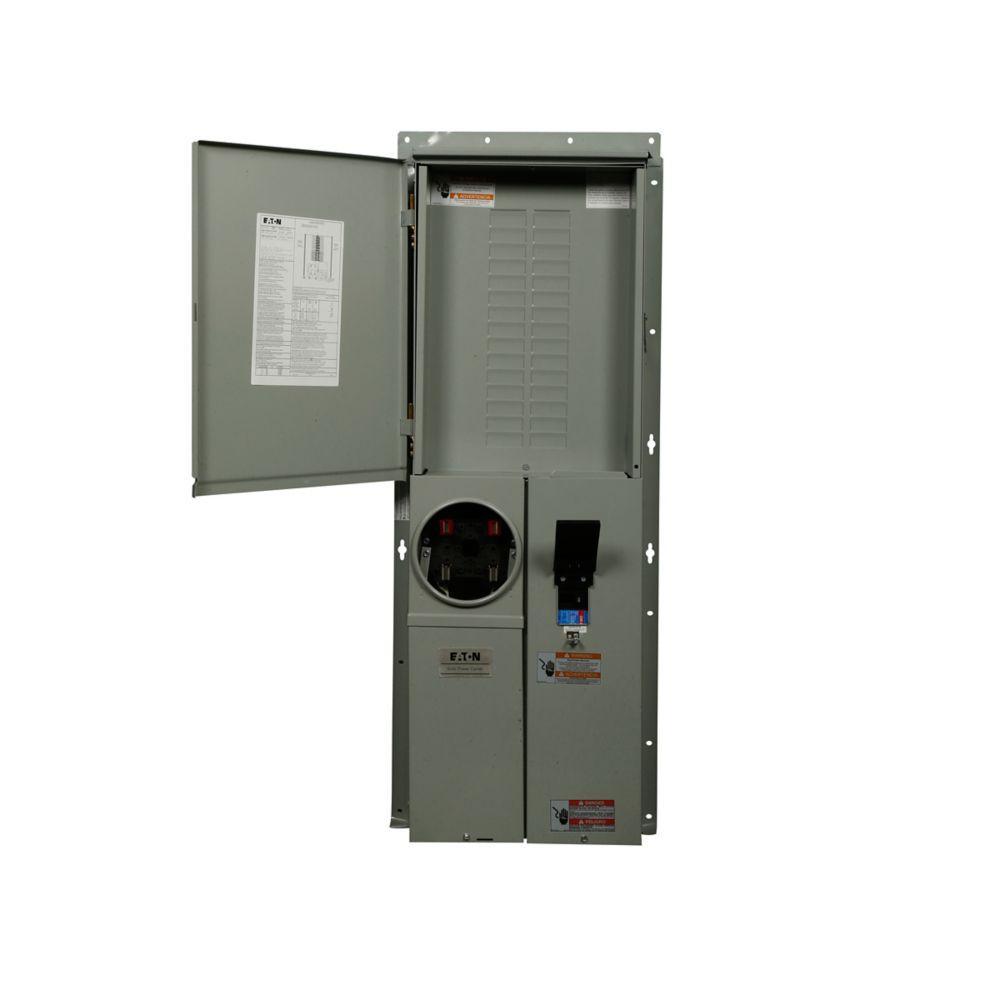

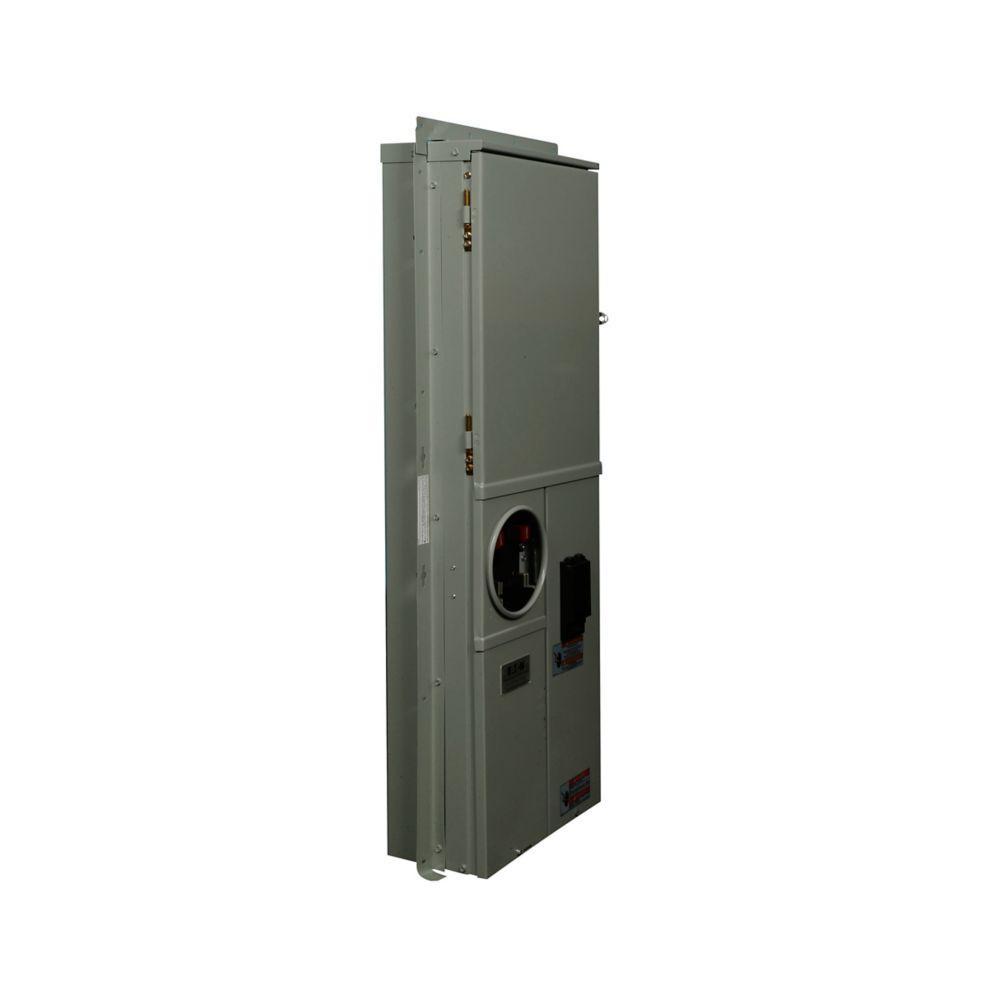

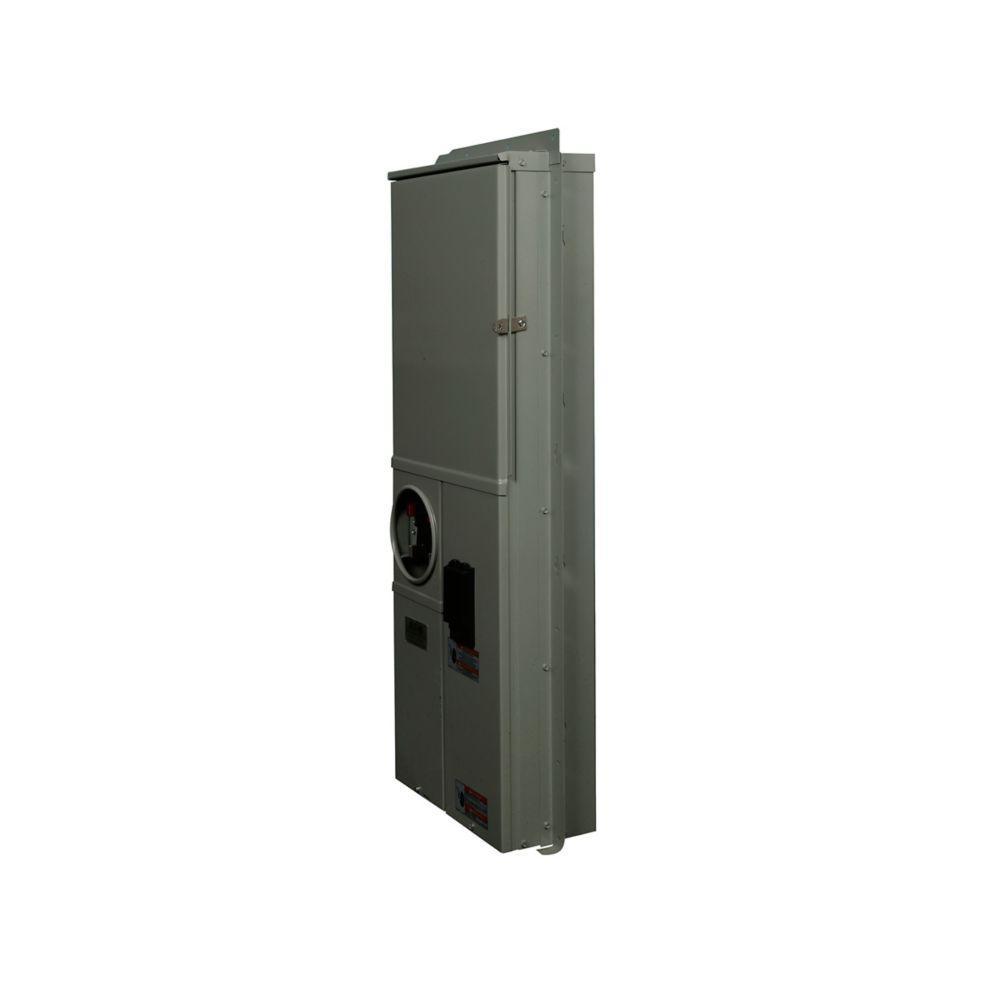

MBE3042PV200BS CH SOLAR RATED MB-30/42, 200A MCB, 225A BUS, EUSERC

Mouse over image to zoom, click to enlarge

  • MBE3042PV200BS CH SOLAR RATED MB-30/42, 200A MCB, 225A BUS, EUSERC
  • MBE3042PV200BS CH SOLAR RATED MB-30/42, 200A MCB, 225A BUS, EUSERC
  • MBE3042PV200BS CH SOLAR RATED MB-30/42, 200A MCB, 225A BUS, EUSERC
  • MBE3042PV200BS CH SOLAR RATED MB-30/42, 200A MCB, 225A BUS, EUSERC
  • MBE3042PV200BS CH SOLAR RATED MB-30/42, 200A MCB, 225A BUS, EUSERC

Description: EATON Meter Breaker, 42-Circuit 30-Space Type BR Solar Ready, 120/240 V AC, 200 A, 1 ph, Bottom Feed, 4 Jaws, Surface Mounting, NEMA 3R Enclosure, 5.31 in L x 14.45 in W x 46.88 in H Dimensions

Manufacturer PN: MBE3042PV200BS

UPC:  78668569024

Kendall Electric Inc PN: 4158783

Invoice Description:

MBE3042PV200BS CH SOLAR RATED MB-30/42, 200A MCB, 225A BUS, EUSERC


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON MBE3042PV200BS 42-Circuit 30-Space Type BR Solar Ready Meter Breaker, 120/240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Solar Power Centers feature industry-exclusive, factory-installed permanent markings, which help to ensure National Electrical Code (NEC) compliance and provide additional flexibility in PV sizing. The wide variety of configurations includes loadcenters and meters breakers, and becomes an all-in-one for both utility power and solar photovoltaic (PV) power. This all makes Eaton’s Solar Power Centers not just the most complete line of Balance of System products, but also makes possible quick and easy identification of product ratings and the location of the parallel energy source disconnect. A copper bussing rated up to 225A maximizes solar source up to 70A for standard units.
EATON Meter Breaker, 42-Circuit 30-Space Type BR Solar Ready, 120/240 V AC, 200 A, 1 ph, Bottom Feed, 4 Jaws, Surface Mounting, NEMA 3R Enclosure, 5.31 in L x 14.45 in W x 46.88 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Dimensions 5.31 in L x 14.45 in W x 46.88 in H
 Enclosure NEMA 3R
 Feed Type Bottom
 Includes Box Type Main Lugs
 Manufacturer Part Number MBE3042PV200BS
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Standards/Approvals UL Listed,EUSERC Approved
 Type 42-Circuit 30-Space Type BR Solar Ready
 Voltage Rating 120/240 V AC

Features

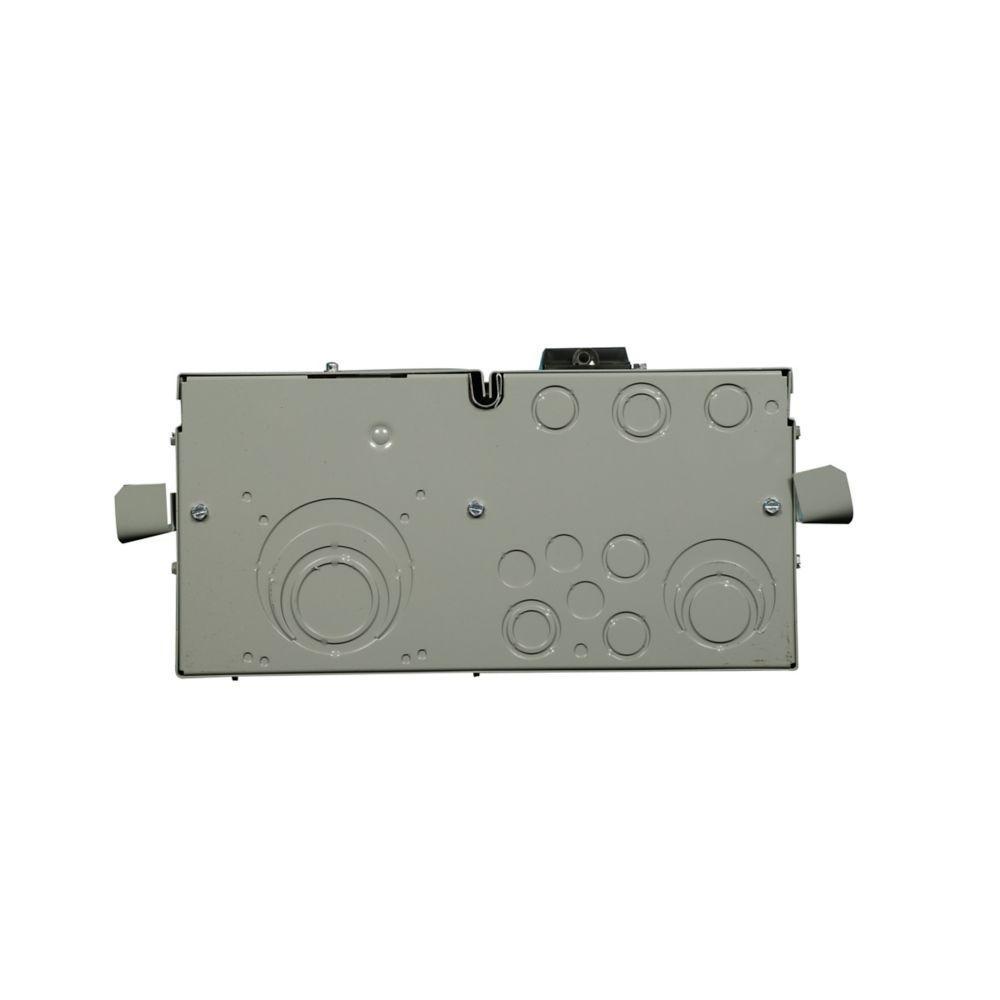

▪ Larger 250 kcmil lugs and additional knockouts for ease of installation
▪ Side by side construction

Resources

 Catalog Page
 Product Data Sheet
