Eaton

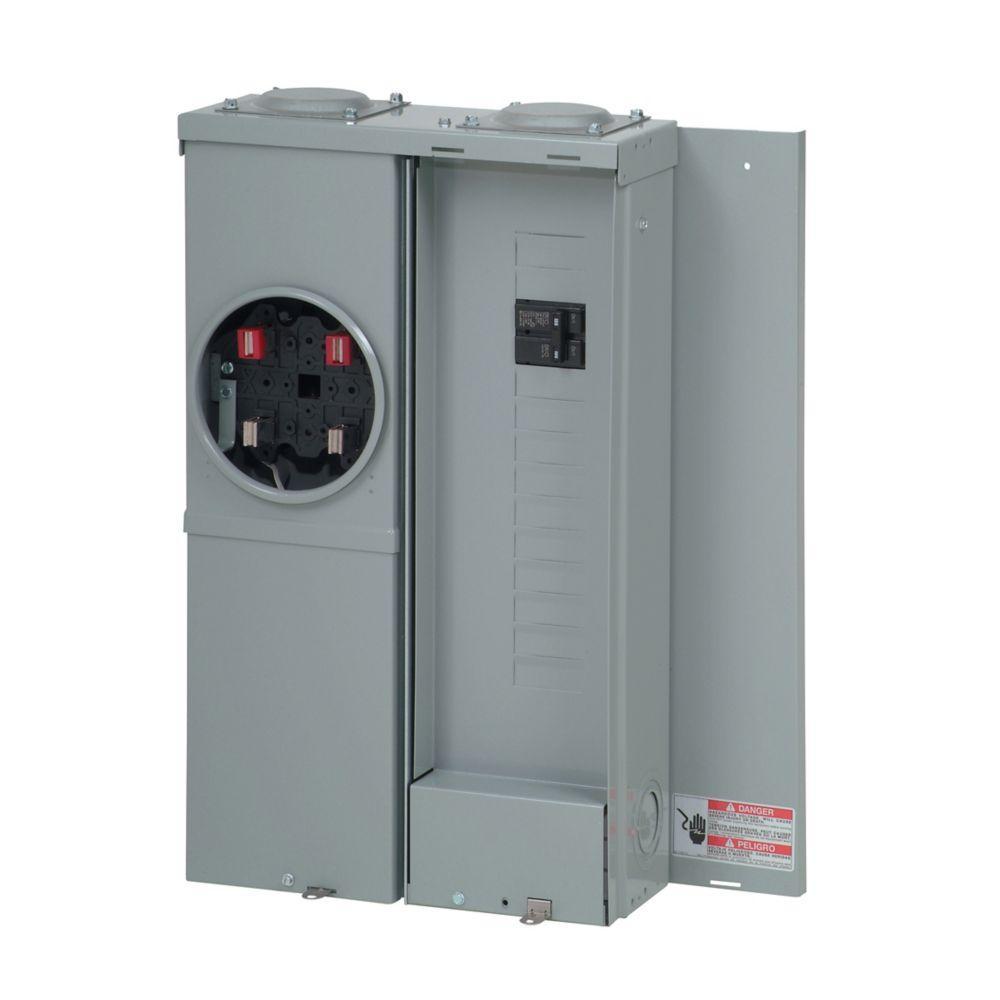

MBE1224B100BTS CH 100A COMB MTR/CB

Mouse over image to zoom, click to enlarge

  • MBE1224B100BTS CH 100A COMB MTR/CB
  • MBE1224B100BTS CH 100A COMB MTR/CB
  • MBE1224B100BTS CH 100A COMB MTR/CB

Description: EATON Meter Breaker, Type CH 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Combination Service Entrance, Series: MBE, 120/240 V AC, 100 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 14 to 2/0 AWG, 6 AWG to 250 kcmil Wire, Top Endwall, 1 in Hub, Ring Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 23.88 in H

Manufacturer PN: MBE1224B100BTS

UPC:  78211489079

Kendall Electric Inc PN: 2538298

Invoice Description:

MBE1224B100BTS CH 100A COMB MTR/CB


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON MBE1224B100BTS Type CH 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Combination Service Entrance Meter Breaker, 120/240 V AC, 100 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, Type CH 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Combination Service Entrance, Series: MBE, 120/240 V AC, 100 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 14 to 2/0 AWG, 6 AWG to 250 kcmil Wire, Top Endwall, 1 in Hub, Ring Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 23.88 in H

Specifications

 Amperage Rating 100 A
 Application Power Distribution, Electrical Assemblies, Panel and EOEM Applications
 Brand Name EATON
 Cover Type Ring
 Dimensions 5.38 in L x 14.44 in W x 23.88 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Overhead/Top/Underground
 Hub Size 1 in
 Hub Type Top Endwall
 Includes Distribution Section and BR2100 Main Breaker
 Manufacturer Part Number MBE1224B100BTS
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Series MBE
 Standards/Approvals UL Listed,EUSERC Approved
 Terminal Type Line/Load
 Type Type CH 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Combination Service Entrance
 Voltage Rating 120/240 V AC

Features

▪ Larger 250 kcmil lugs and additional knockouts for ease of installation
▪ Factory installed neutral assemblies
▪ Hub provisions on top endwall
▪ Ring type sockets are provided with a sealing ring
▪ Padlockable device covers provide an additional measure of security and help prevent tampering
▪ Most units have center keyhole for easy one person installation
