Eaton

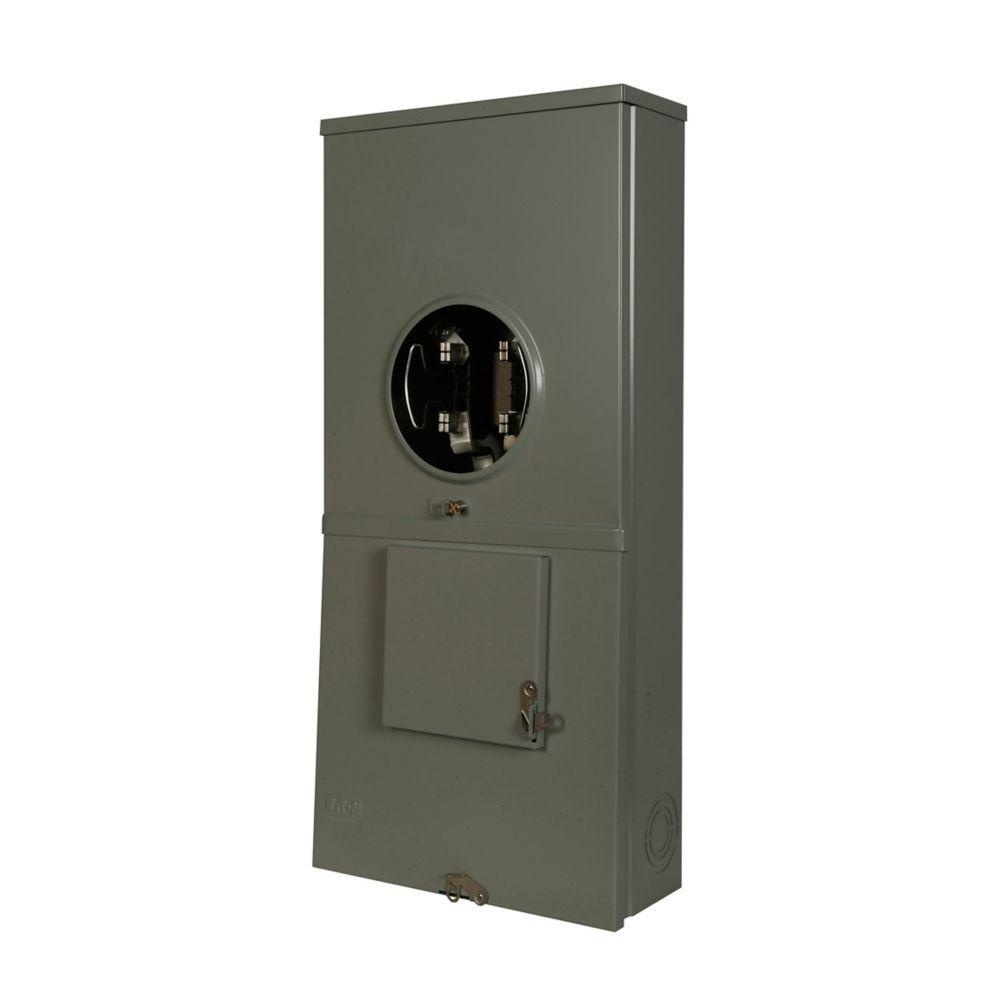

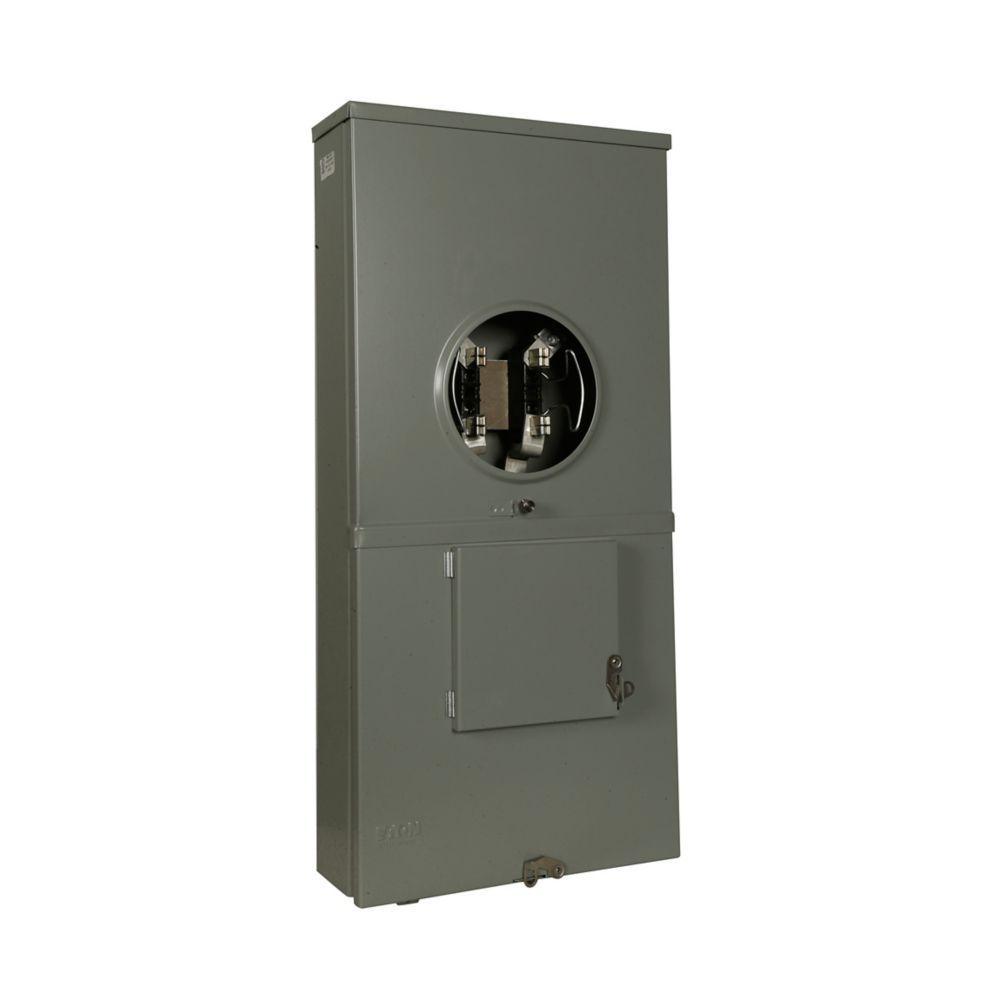

MBB150BTSG CH 150A METER BREAKER, OH/UG, GEORGIA POWER APPROVED

Mouse over image to zoom, click to enlarge

  • MBB150BTSG CH 150A METER BREAKER, OH/UG, GEORGIA POWER APPROVED
  • MBB150BTSG CH 150A METER BREAKER, OH/UG, GEORGIA POWER APPROVED
  • MBB150BTSG CH 150A METER BREAKER, OH/UG, GEORGIA POWER APPROVED

Description: EATON Meter Breaker, 120/240 V AC, 150 A, 1 ph, Bottom/Top Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 4.94 in L x 14.44 in W x 15.7 in H Dimensions

Manufacturer PN: MBB150BTSG

UPC:  78668516166

Kendall Electric Inc PN: 4079030

Invoice Description:

MBB150BTSG CH 150A METER BREAKER, OH/UG, GEORGIA POWER APPROVED


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON MBB150BTSG Meter Breaker, 120/240 V AC, 150 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, 120/240 V AC, 150 A, 1 ph, Bottom/Top Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 4.94 in L x 14.44 in W x 15.7 in H Dimensions

Specifications

 Amperage Rating 150 A
 Application Electrical Assemblies, Panels, EOEMs and Residential Applications
 Brand Name EATON
 Cover Type Ringless
 Dimensions 4.94 in L x 14.44 in W x 15.7 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Top
 Manufacturer Part Number MBB150BTSG
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Standards/Approvals UL Listed
 Voltage Rating 120/240 V AC

Features

▪ Larger 250 kcmil lugs and additional knockouts for ease of installation

Resources

 Catalog Page
 Product Data Sheet
