Hubbell

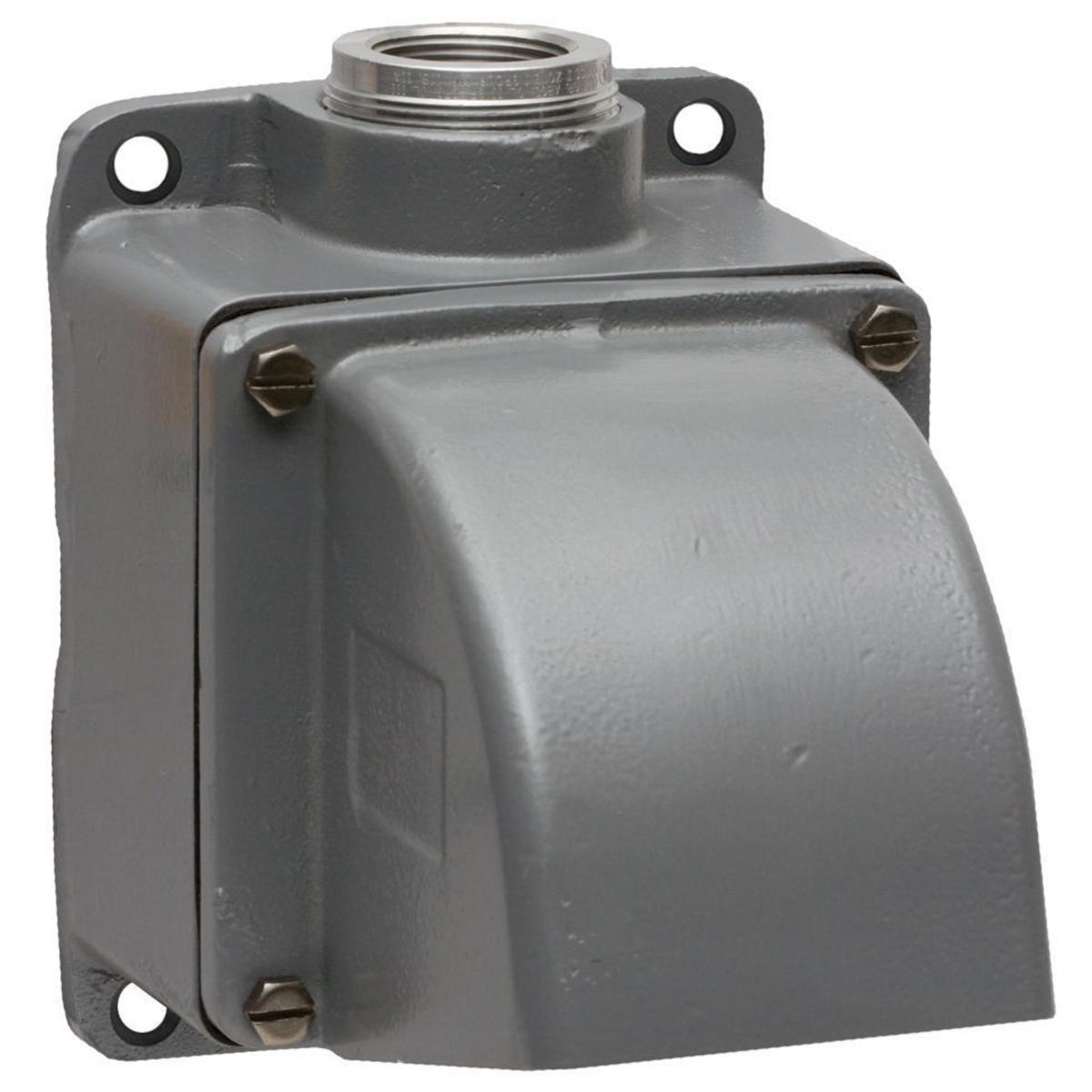

MB601004W HUBBELL ANGLE BACKBOX W/2"HUB 60&100A IGRIP P/S 78358501126

Mouse over image to zoom, click to enlarge

  • MB601004W HUBBELL ANGLE BACKBOX W/2"HUB 60&100A IGRIP P/S 78358501126
  • MB601004W HUBBELL ANGLE BACKBOX W/2"HUB 60&100A IGRIP P/S 78358501126

Description: Hubbell Wiring Device-Kellems, MB601004W, Back Box, 1-Outlet, 4-Way 15 deg Angled Industrial Grade Standard, 8 in Height, 6.14 in Width, 8.6 in Depth, For Use With: 60 and 100 A 2 in NPT Pin and Sleeve Devices, Cast Aluminum, Gray, Threaded Mounting

Manufacturer PN: MB601004W

UPC:  78358501126

Kendall Electric Inc PN: 2275905

Invoice Description:

MB601004W HUBBELL ANGLE BACKBOX W/2"HUB 60&100A IGRIP P/S 78358501126


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems MB601004W 1-Outlet, 4-Way 15 deg Angled Industrial Grade Standard Back Box, 8 in H 6.14 in W 8.6 in D, For Use With 60 and 100 A 2 in NPT Pin and Sleeve Devices, Cast Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell manufactures an extensive line of back boxes for use with UL 1686 pin and sleeve devices. Each back box is designed to give the user the maximum amount of wiring room while achieving grounding to metallic conduit.
Hubbell Wiring Device-Kellems, MB601004W, Back Box, 1-Outlet, 4-Way 15 deg Angled Industrial Grade Standard, 8 in Height, 6.14 in Width, 8.6 in Depth, For Use With: 60 and 100 A 2 in NPT Pin and Sleeve Devices, Cast Aluminum, Gray, Threaded Mounting

Specifications

 Application Industrial Applications
 Brand Name Hubbell Premise Wiring
 Color Gray
 Depth 8.6 in
 Height 8 in
 Includes Mounting Screws
 Manufacturer Part Number MB601004W
 Material Cast Aluminum
 Mounting Threaded
 PART NUMBER KEYWORDS MB601004W ; 11826277 ; 8942947 ; 783585011264 ; 78358501126 ; 00783585011264 ; 0783585011264
 Standards/Approvals RoHS Compliant|UL 514|CSA Certified
 Suitable For Use With 60 and 100 A 2 in NPT Pin and Sleeve Devices
 Type 1-Outlet, 4-Way 15 deg Angled Industrial Grade Standard
 Width 6.14 in

Features

▪ Cast aluminum construction
▪ Stainless steel hinge spring and assembly screws
▪ Withstands 3000 VAC minimum dielectric voltage
▪ 10000 mechanical cycles, 6000 electrical cycles endurance
▪ Neoprene gasket
▪ Suitable for use on a circuit capable of delivering not more than 10000 RMS symmetrical amperes at the voltage rating of the receptacle short circuit withstand
