Eaton

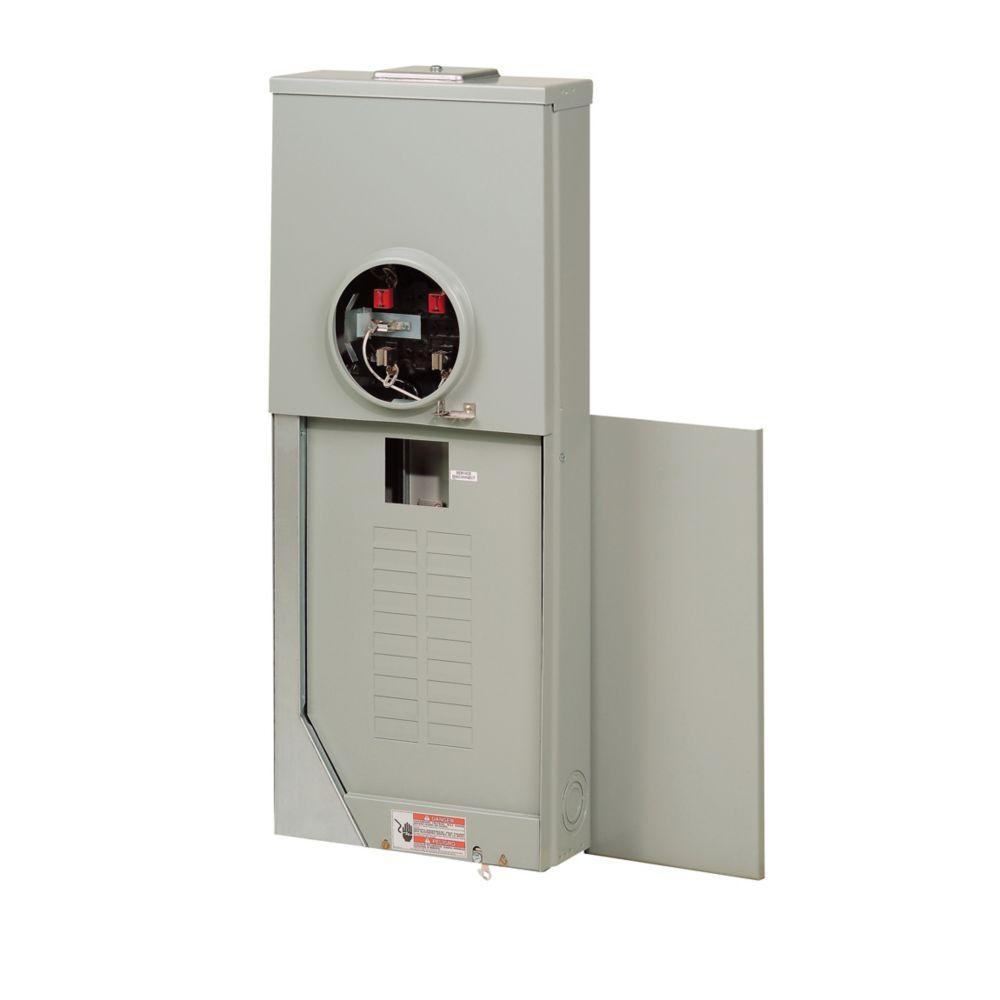

MB2040P200SD CH BR MTR BRKR,200A,PROV MAIN CKT BKR, 5JAW

Mouse over image to zoom, click to enlarge

  • MB2040P200SD CH BR MTR BRKR,200A,PROV MAIN CKT BKR, 5JAW
  • MB2040P200SD CH BR MTR BRKR,200A,PROV MAIN CKT BKR, 5JAW

Description: EATON Meter Breaker, Type BR 40-Circuit 1-Socket 20-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC, Series: MB Series, 120/240 V AC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil Wire, Top Endwall, 1 in Hub, Ringless Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 36.63 in H

Manufacturer PN: MB2040P200SD

UPC:  78211466890

Kendall Electric Inc PN: 4915753

Invoice Description:

MB2040P200SD CH BR MTR BRKR,200A,PROV MAIN CKT BKR, 5JAW


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON MB2040P200SD MB Series Type BR 40-Circuit 1-Socket 20-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC Meter Breaker With MBDF3M Mechanical Interlock Deadfront Cover, 120/240 V AC, 200 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, Type BR 40-Circuit 1-Socket 20-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC, Series: MB Series, 120/240 V AC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil Wire, Top Endwall, 1 in Hub, Ringless Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 36.63 in H

Specifications

 Amperage Rating 200 A
 Application Residential Buildings, Facilities, Electrical Assemblies, Panels and EOEM Applications
 Brand Name EATON
 Cover Type Ringless
 Dimensions 5.38 in L x 14.44 in W x 36.63 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Overhead/Top/Underground
 Hub Size 1 in
 Hub Type Top Endwall
 Includes Distribution Section and Provision for Main Breaker
 Manufacturer Part Number MB2040P200SD
 Mounting Type Surface
 Number of Jaws 5
 Phase 1
 Series MB Series
 Standards/Approvals UL Listed
 Terminal Type Line/Load
 Type Type BR 40-Circuit 1-Socket 20-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC
 Voltage Rating 120/240 V AC

Features

▪ Larger lay-in lugs and 3 in knockouts for ease of installation
▪ Factory installed neutral assemblies
▪ Hub provisions on top endwall
▪ Padlockable device covers provide an additional measure of security and help prevent tampering
