Eaton
MB1224B100BTS CH MTR BRKR, BR, 100A MB, 12/24 CKT, BTM / TOP FEED, MEG APP

Mouse over image to zoom, click to enlarge

  • MB1224B100BTS CH MTR BRKR, BR, 100A MB, 12/24 CKT, BTM / TOP FEED, MEG APP
  • MB1224B100BTS CH MTR BRKR, BR, 100A MB, 12/24 CKT, BTM / TOP FEED, MEG APP
  • MB1224B100BTS CH MTR BRKR, BR, 100A MB, 12/24 CKT, BTM / TOP FEED, MEG APP
  • MB1224B100BTS CH MTR BRKR, BR, 100A MB, 12/24 CKT, BTM / TOP FEED, MEG APP
  • MB1224B100BTS CH MTR BRKR, BR, 100A MB, 12/24 CKT, BTM / TOP FEED, MEG APP

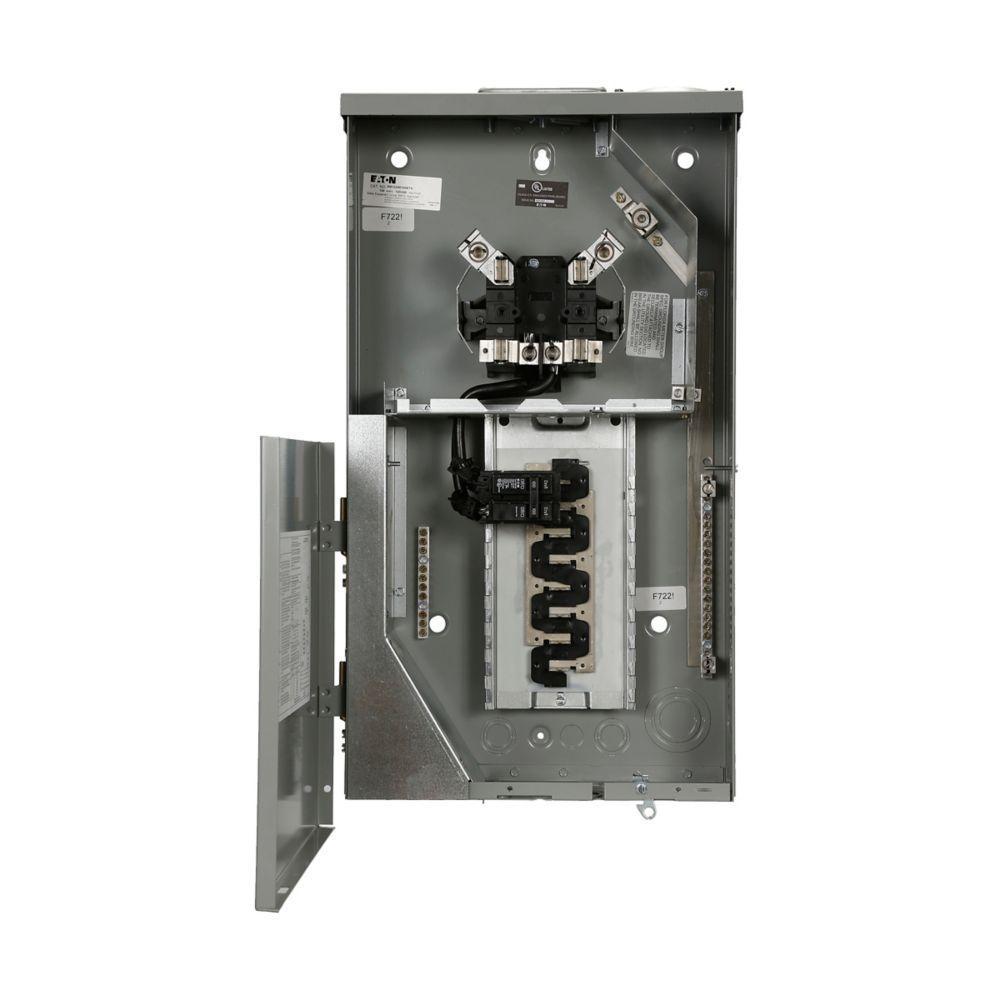

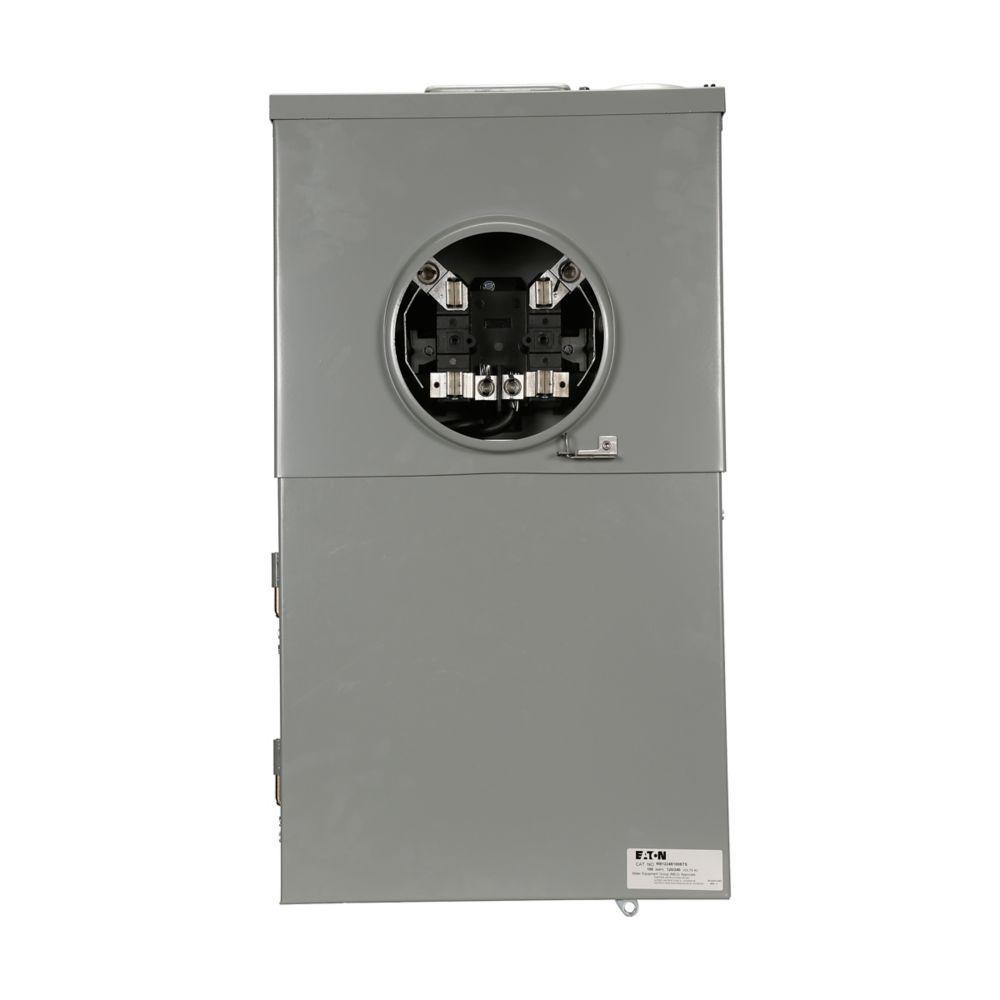

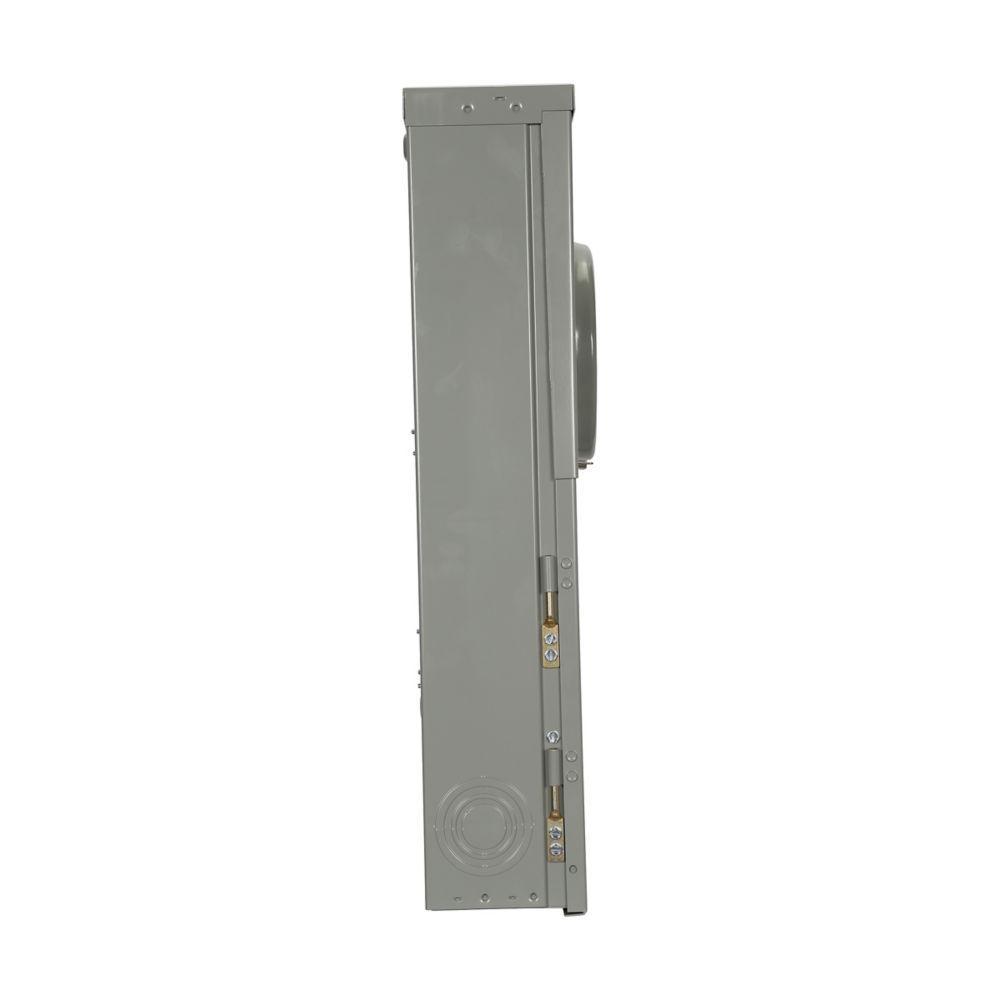

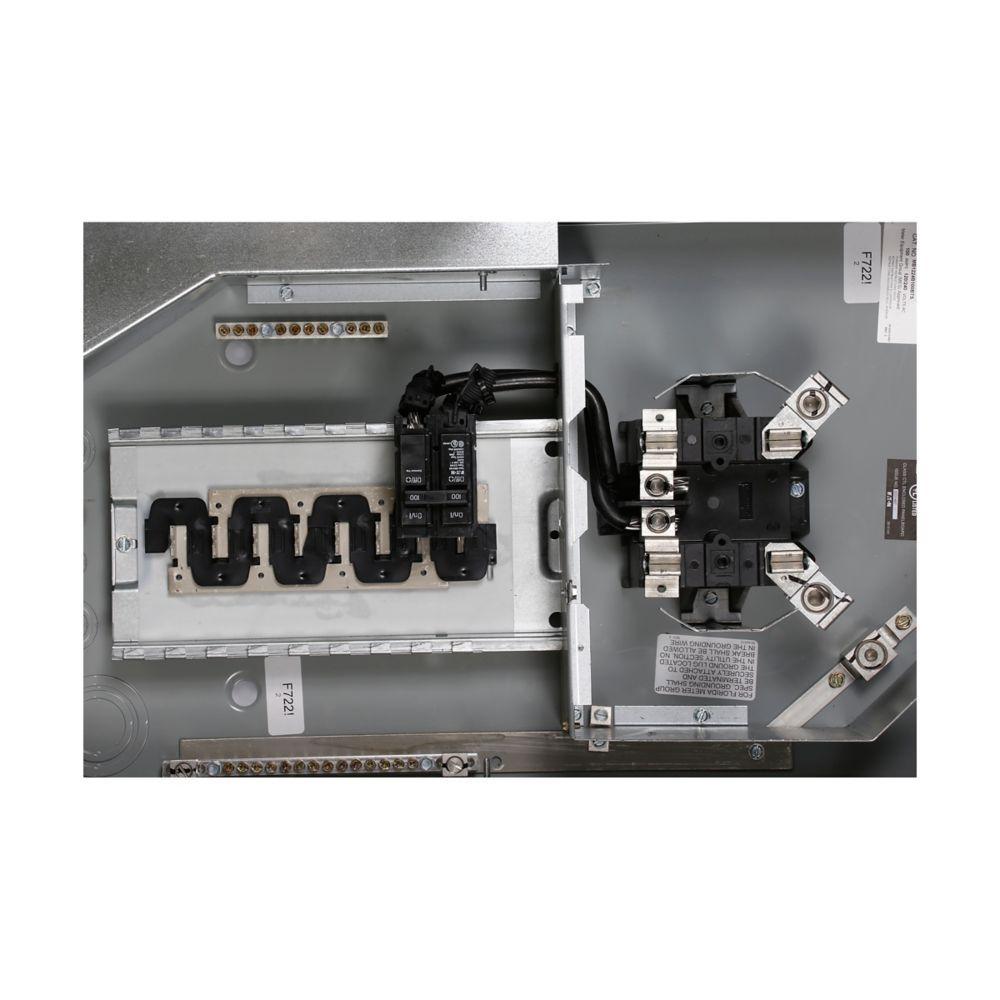

Description: EATON Meter Breaker, Type BR 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC, Series: MB Series, 120/240 V AC, 100 A, 1 ph, Bottom/Overhead/Top/Underground Feed, 4 Jaws, 14 to 2/0 AWG, 6 AWG to 250 kcmil Wire, Top Endwall Hub, 1 in Hub, Ring Cover, Line/Load Terminal, Surface Mounting, NEMA 3R Enclosure, 14.31 in L x 5.06 in W x 25.5 in H Dimensions

Manufacturer PN: MB1224B100BTS

UPC:  78668021922

Kendall Electric Inc PN: 4309474

Invoice Description:

MB1224B100BTS CH MTR BRKR, BR, 100A MB, 12/24 CKT, BTM / TOP FEED, MEG APP


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON MB1224B100BTS Type BR 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC Meter Breaker, 120/240 V AC, 100 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, Type BR 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC, Series: MB Series, 120/240 V AC, 100 A, 1 ph, Bottom/Overhead/Top/Underground Feed, 4 Jaws, 14 to 2/0 AWG, 6 AWG to 250 kcmil Wire, Top Endwall Hub, 1 in Hub, Ring Cover, Line/Load Terminal, Surface Mounting, NEMA 3R Enclosure, 14.31 in L x 5.06 in W x 25.5 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application Electrical Assemblies, Panel, EOEM and Residential Applications
 Brand Name EATON
 Cover Type Ring
 Dimensions 14.31 in L x 5.06 in W x 25.5 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Overhead/Top/Underground
 Hub Size 1 in
 Hub Type Top Endwall
 Includes BR2100 Main Breaker
 Manufacturer Part Number MB1224B100BTS
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Series MB Series
 Standards/Approvals UL Listed
 Terminal Type Line/Load
 Type Type BR 24-Circuit 1-Socket 12-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC
 Voltage Rating 120/240 V AC

Features

▪ Larger lay-in lugs and 3 in knockouts for ease of installation
▪ Factory installed neutral assemblies
▪ Hub provisions on top endwall
▪ Padlockable device covers provide an additional measure of security and help prevent tampering
▪ Without distribution section
