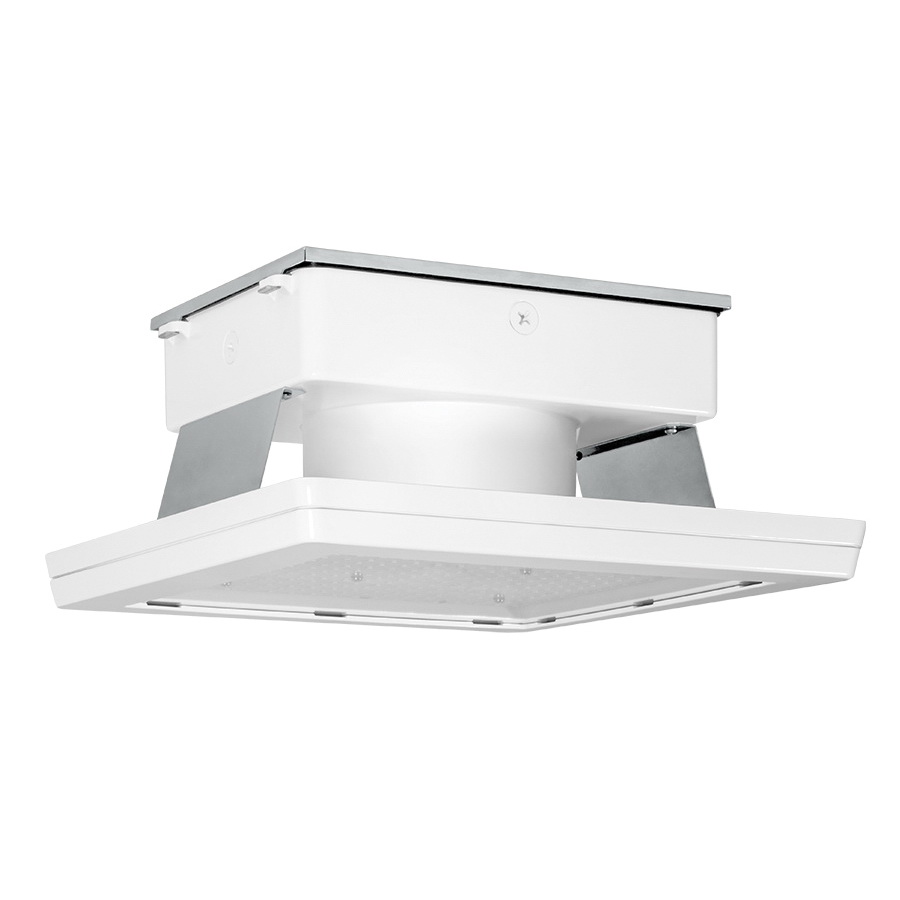

MASI16-100W/D10 RAB GAS STATION 16IN 100W 5K LED DIM W MASI

Mouse over image to zoom, click to enlarge

  • MASI16-100W/D10 RAB GAS STATION 16IN 100W 5K LED DIM W MASI
  • MASI16-100W/D10 RAB GAS STATION 16IN 100W 5K LED DIM W MASI

Description: RAB Canopy Lighting, Series: MASI, 120/208/240/277 V AC, 114 W Fixture, 0.438/0.505/0.583/0.959 A, LED Lamp, 100 W Lamp, 134 Lumens/W Light Output, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 75 CRI, Constant Current Ballast, Tempered Glass Lens, 15344 Lumens, IP66 Enclosure, Flush Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 16 in L x 16 in W x 7-5/8 in H Dimensions

Manufacturer PN: MASI16-100W/D10

UPC:  01981330699

Kendall Electric Inc PN: 3844981

Invoice Description:

MASI16-100W/D10 RAB GAS STATION 16IN 100W 5K LED DIM W MASI


SPEC SHEET

▸ See All in Outdoor Canopy Lighting


How Can We Make This Page Better?

RAB MASI16-100W/D10 Canopy Lighting With 0 to 10 VDC Dimming Driver, LED Lamp, 114 W Fixture, 120/208/240/277 V AC, White Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

RAB Canopy Lighting, Series: MASI, 120/208/240/277 V AC, 114 W Fixture, 0.438/0.505/0.583/0.959 A, LED Lamp, 100 W Lamp, 134 Lumens/W Light Output, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 75 CRI, Constant Current Ballast, Tempered Glass Lens, 15344 Lumens, IP66 Enclosure, Flush Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 16 in L x 16 in W x 7-5/8 in H Dimensions

Specifications

 Amperage Rating 0.438/0.505/0.583/0.959 A
 Application For vehicle service and fueling, gas stations as a retrofit or new construction installation
 Average Life 100000 hr
 Ballast Type Constant Current
 Brand Name RAB
 Color Rendering Index CRI 75
 Color Temperature 5000 K
 Dimensions 16 in L x 16 in W x 7-5/8 in H
 Enclosure IP66
 Fixture Wattage 114 W
 Housing Finish White
 Housing Material Die Cast Aluminum
 Lamp Type LED
 Lamp Wattage 100 W
 Light Color Cool White
 Light Output 134 Lumens/W
 Lumens 15344 Lumens
 Manufacturer Part Number MASI16-100W/D10
 Mounting Type Flush
 Series MASI
 Standards/Approvals UL Listed for Wet Locations|IESNA LM-79/LM-80|ANSI C78.377-2017|DLC Premium Certified|CSA Approved
 Voltage Rating 120/208/240/277 V AC

Features

▪ Premium performance, ultra-high efficiency for fastest payback
▪ Easily installs in 4 in openings and replaces most existing fixtures
▪ Retroplate accessory available for openings larger than 4 in
▪ Water resistant junction box and drain-off slots
▪ 0.959 A at 120 VAC, 0.583 A at 208 VAC, 0.505 A at 240 VAC, 0.438 A at 277 VAC
