Lutron Electronics
  • MA-T51MN-WH LUTRON MULTILOCATION COUNTDOWN TIMER *RATED FOR DC MOTOR
  • MA-T51MN-WH LUTRON MULTILOCATION COUNTDOWN TIMER *RATED FOR DC MOTOR
  • MA-T51MN-WH LUTRON MULTILOCATION COUNTDOWN TIMER *RATED FOR DC MOTOR

Description: Lutron®, MA-T51MN-WH, Countdown Timer Control Switch, Multi-Location, Series: Maestro®, Operation Mode: Tap On/Off, 120 V AC, 3/5 A, 1 Pole, 1NO 1 Form A Contact Form, 5 to 60 min Time Setting, Screw Terminal Electrical Connections, 32 to 104 deg F, Wall Mounting, 4.69 in H x 2.94 in W Dimensions

Manufacturer PN: MA-T51MN-WH

UPC:  02755729084

Kendall Electric Inc PN: 2575225

Invoice Description:

MA-T51MN-WH LUTRON MULTILOCATION COUNTDOWN TIMER *RATED FOR DC MOTOR


SPEC SHEET

▸ See All in Electronic Timers


How Can We Make This Page Better?

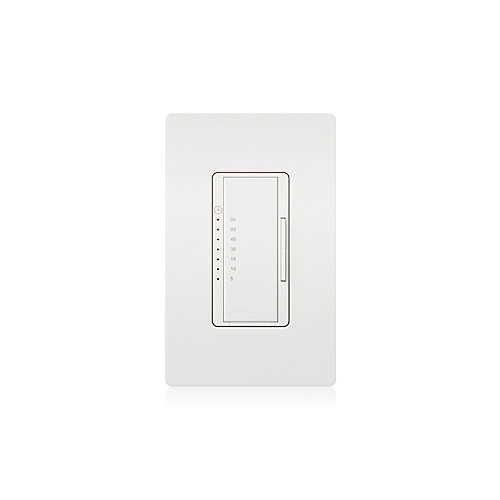

Lutron® MA-T51MN-WH Maestro® Multi-Location Countdown Timer Control Switch, 5 to 60 min Setting, 120 V AC, 1NO 1 Form A Contact, 1 Poles

Log In for Pricing and Availability




Description

Maestro® timers help you save money and energy by automatically turning off lights and fans after a preset time. Using Lutron® timers on bathroom exhaust fans can reduce the chance of a costly mold problem and timers attached to garage lights can add an e
Lutron®, MA-T51MN-WH, Countdown Timer Control Switch, Multi-Location, Series: Maestro®, Operation Mode: Tap On/Off, 120 V AC, 3/5 A, 1 Pole, 1NO 1 Form A Contact Form, 5 to 60 min Time Setting, Screw Terminal Electrical Connections, 32 to 104 deg F, Wall Mounting, 4.69 in H x 2.94 in W Dimensions

Specifications

 Amperage Rating 3/5 A
 Application Bathroom, Kitchen, Exhaust Fan, Lighting and Indoor Applications
 Brand Name Lutron®
 Contact Form 1NO 1 Form A
 Dimensions 4.69 in H x 2.94 in W
 Electrical Connections Screw Terminal
 Manufacturer Part Number MA-T51MN-WH
 Mounting Type Wall
 Number of Poles 1
 Operation Mode Tap On/Off
 Series Maestro®
 Standards/Approvals cUL Listed|IEC Certified|ANSI/IEEE Certified
 Temperature Rating 32 to 104 deg F
 Time Setting 5 to 60 min
 Type Multi-Location
 Voltage Rating 120 V AC

Features

▪ Requires neutral wire connection
▪ Use in the garage to keep the light on as you get into your vehicle and it can turn off automatically after you leave
▪ traditional 3-way switches will not work with this device
▪ Never forget to turn your fan off again or have to make unnecessary trips back into the room
▪ 5 with 0.05A minimum load, suitable for DC and high efficiency exhaust fans
▪ Timer can be set to operate fan or light for 5 to 60 min before turning off automatically
▪ Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications
▪ Use timer with exhaust fans in bathrooms to eliminate moisture and reduce mold and mildew growth
▪ Tap once to start timer or double tap for always on, use raise/lower buttons to adjust countdown time anywhere from 5 to 60 min (5, 10, 15, 30, 45, and 60 min)
▪ Rated to work with up to 150 W LED bulbs, 600 W ELV/Incandescent/Halogen, 450 W MLV or 3 A general purpose fans
▪ 5 A incandescent/halogen, MLV, ELV, fluorescent on/off lighting load, 3 A general purpose fan current rating
▪ Save energy by using in closets, attics, basements and other low-traffic areas to ensure the light is never left on for a long time
▪ Neutral required
▪ Timer has orange LED's that indicate time remaining before turn off
