Schneider Electric

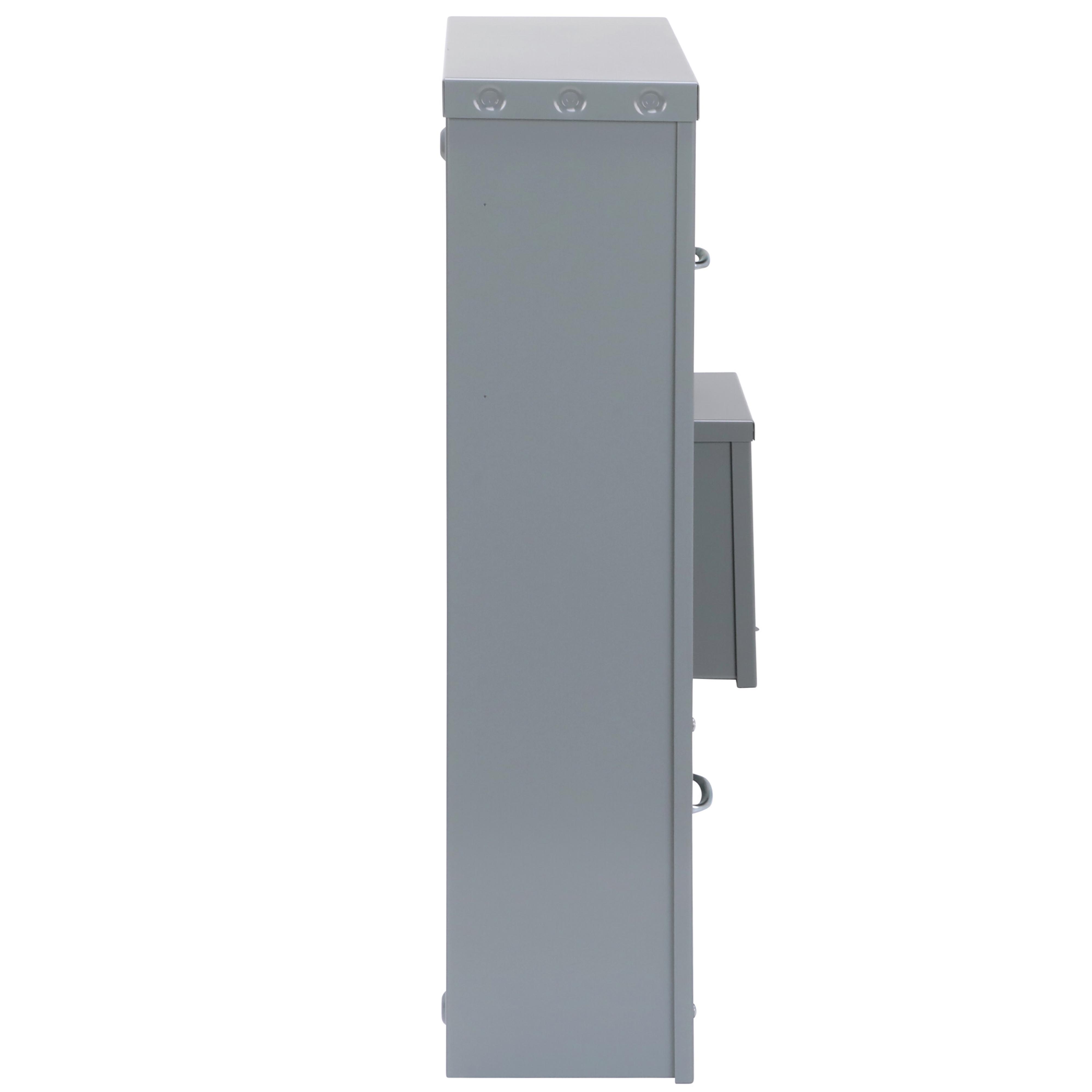

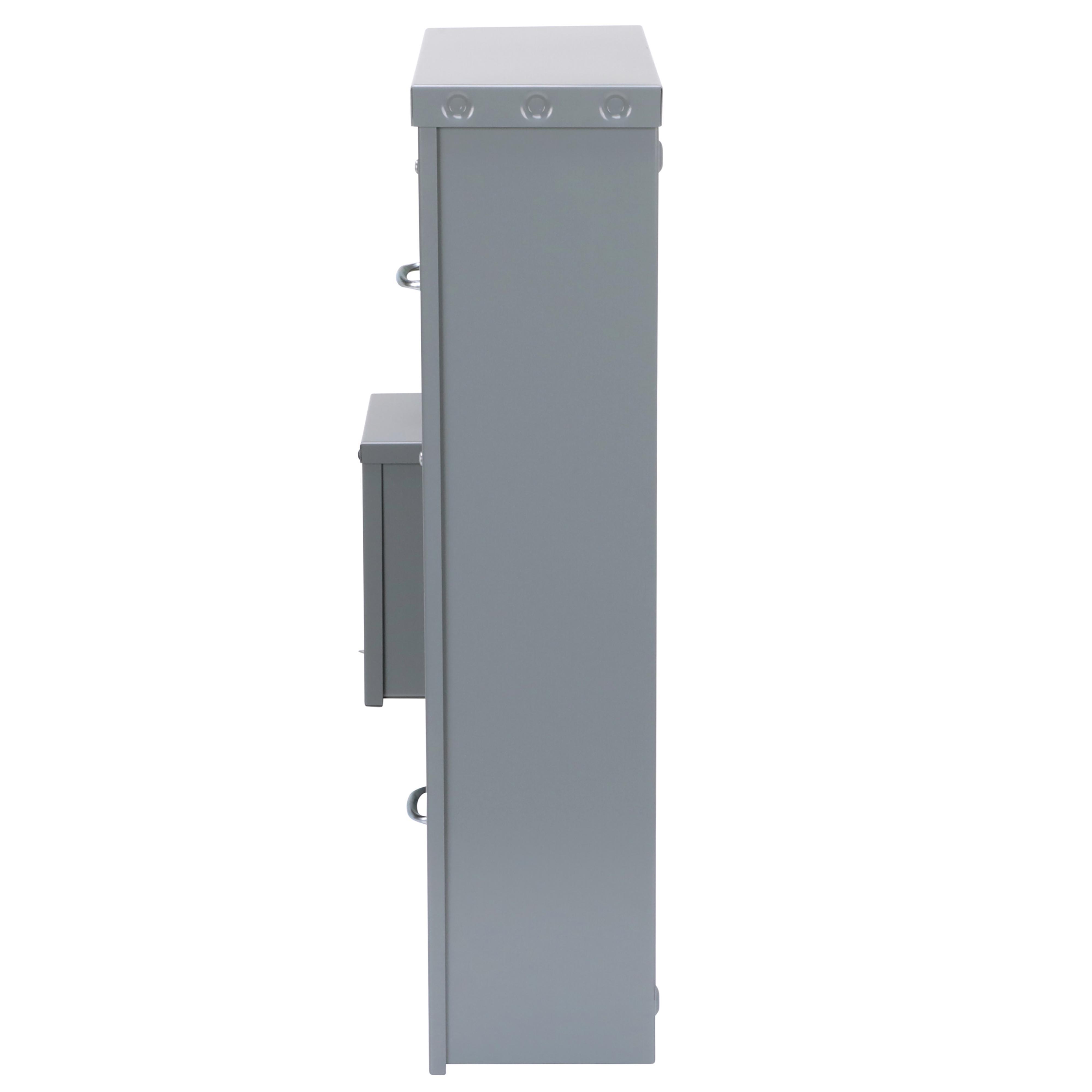

  • M800R SQD N3R ENCLOSURE FOR MG MJ
  • M800R SQD N3R ENCLOSURE FOR MG MJ
  • M800R SQD N3R ENCLOSURE FOR MG MJ
  • M800R SQD N3R ENCLOSURE FOR MG MJ

Description: Square D™ Molded Circuit Breaker Enclosure, 300 to 800 A, 2/3 Pole, NEMA 3R Enclosure, Steel Housing Material

Manufacturer PN: M800R

UPC:  78590165851

Kendall Electric Inc PN: 3962129

Invoice Description:

M800R SQD N3R ENCLOSURE FOR MG MJ


SPEC SHEET

▸ See All in Panelboard Enclosures


How Can We Make This Page Better?

Square D™ M800R Molded Circuit Breaker Enclosure, 300 to 800 A, 2/3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 80% rated circuit breakers. The M800R and the P1200R enclosures have a blank top end wall and require field-cut openings. This is a PowerPact M,Molded Case Circuit Breaker Enclosure, 300A to 800A, TYPE 3R. This enclosure is made from steel. This enclosure complies to UL & CSA certifications. The dimensions are 1025.52 mm (H), 533.4 mm (W), 247.65 mm (D). This product comes with an 18 month warranty.
Square D™ Molded Circuit Breaker Enclosure, 300 to 800 A, 2/3 Pole, NEMA 3R Enclosure, Steel Housing Material

Specifications

 Amperage Rating 300 to 800 A
 Application For use with PJL, MGL, PKL, MJL, PLL, PGL circuit breaker applications
 Brand Name Square D
 Enclosure NEMA 3R
 Housing Material Steel
 Manufacturer Part Number M800R
 Number of Poles 2/3
 PART NUMBER KEYWORDS M800R ; 9616369 ; 785901658511 ; 78590165851 ; 00785901658511 ; 0785901658511
 Standards/Approvals CSA Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

▪ Available in 2 or 3 pole design
▪ Overcurrent protection and switching on AC systems
▪ Common accessories across the range
▪ Confidence and power reliability
