Leviton

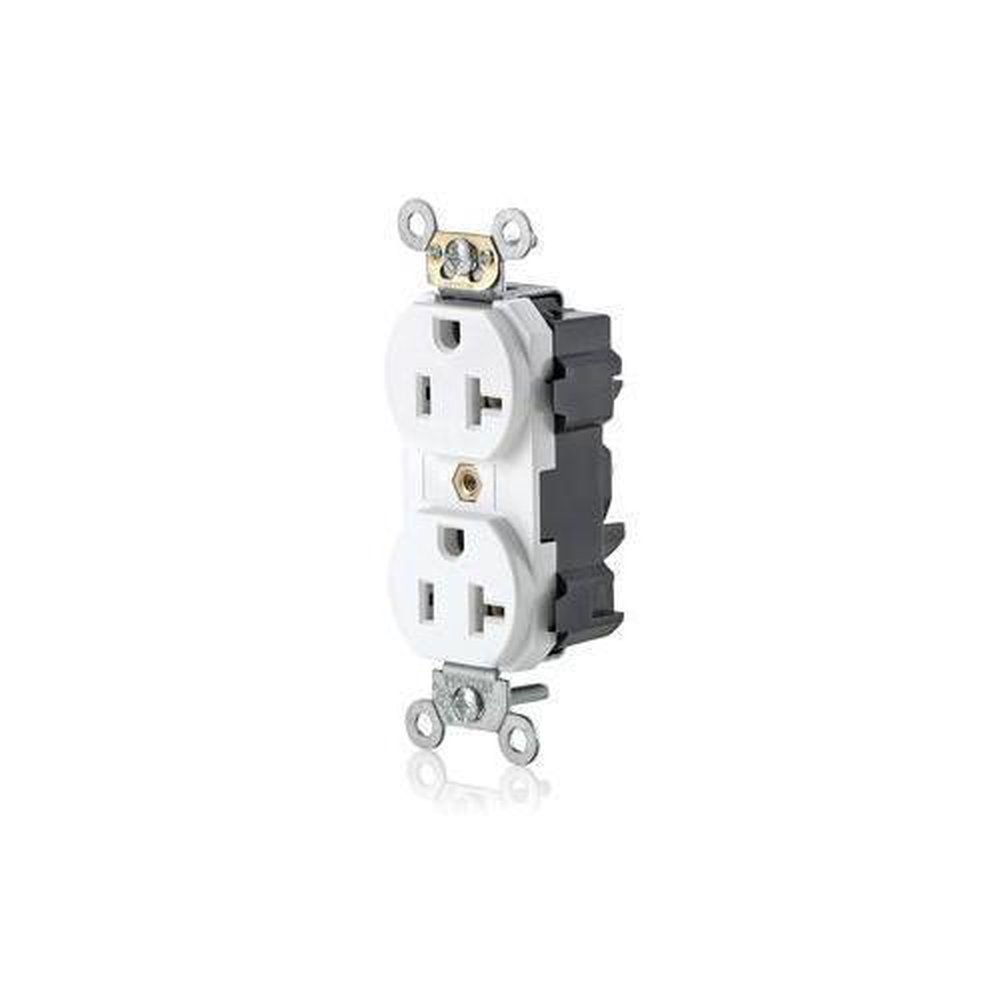

M5362-SW LEVITON LEVLOK 20A COMM DUPLEX

Mouse over image to zoom, click to enlarge

Description: Leviton® Lev-Lok® Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 125 V AC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.22 in D

Manufacturer PN: M5362-SW

UPC:  07847736349

Kendall Electric Inc PN: 3399373

Invoice Description:

M5362-SW LEVITON LEVLOK 20A COMM DUPLEX


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Leviton® Lev-Lok® M5362-SW 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability




Description

The Lev-Lok® modular wiring device system is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok® brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades and heavy duty commercial grade platforms.
Leviton® Lev-Lok® Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 125 V AC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.22 in D

Specifications

 Amperage Rating 20 A
 Brand Name Leviton®
 Color White
 Dimensions 46 in H x 1.53 in W x 1.22 in D
 Grade Commercial
 Horsepower 1 hp
 Manufacturer Part Number M5362-SW
 Material Thermoplastic
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS M5362-SW ; M5362SW ; 10546433 ; 078477363492 ; 78477363492 ; 07847736349 ; 00078477363492
 Standards/Approvals NEMA WD-1/WD-6|ANSI C-73|NOM 057|cULus Listed|UL94 V-2 Flammability Rating
 Temperature Rating -40 to 60 deg C
 Terminal Type Modular
 Type 1-Phase Duplex Heavy Duty
 Video Links
 Voltage Rating 125 V AC

Features

▪ Solid brass locking pins, bushing
▪ Triple combination head, steel mounting screws
▪ Constructed with impact resistant thermoplastic nylon cover and body
▪ Four corner latches securely fasten the receptacles face to the body
▪ Large triple wipe, brass T line contacts for superior contact and conductivity
▪ 12 AWG THHN wire leads, 6 in L on MSTWL series wiring modules
▪ Galvanized steel, wrap around mounting strap with riveted ground contacts
▪ Grounding clip permanently secured to strap for easy, simple and secure installation
▪ Wiring module locks and latches to the receptacle body providing double the connection security
▪ Receptacle to be installed only with Leviton® MSTWL series wiring modules
▪ MSTWL wiring module shipped separately with protective label and factory installed circuit ID label
