Eaton

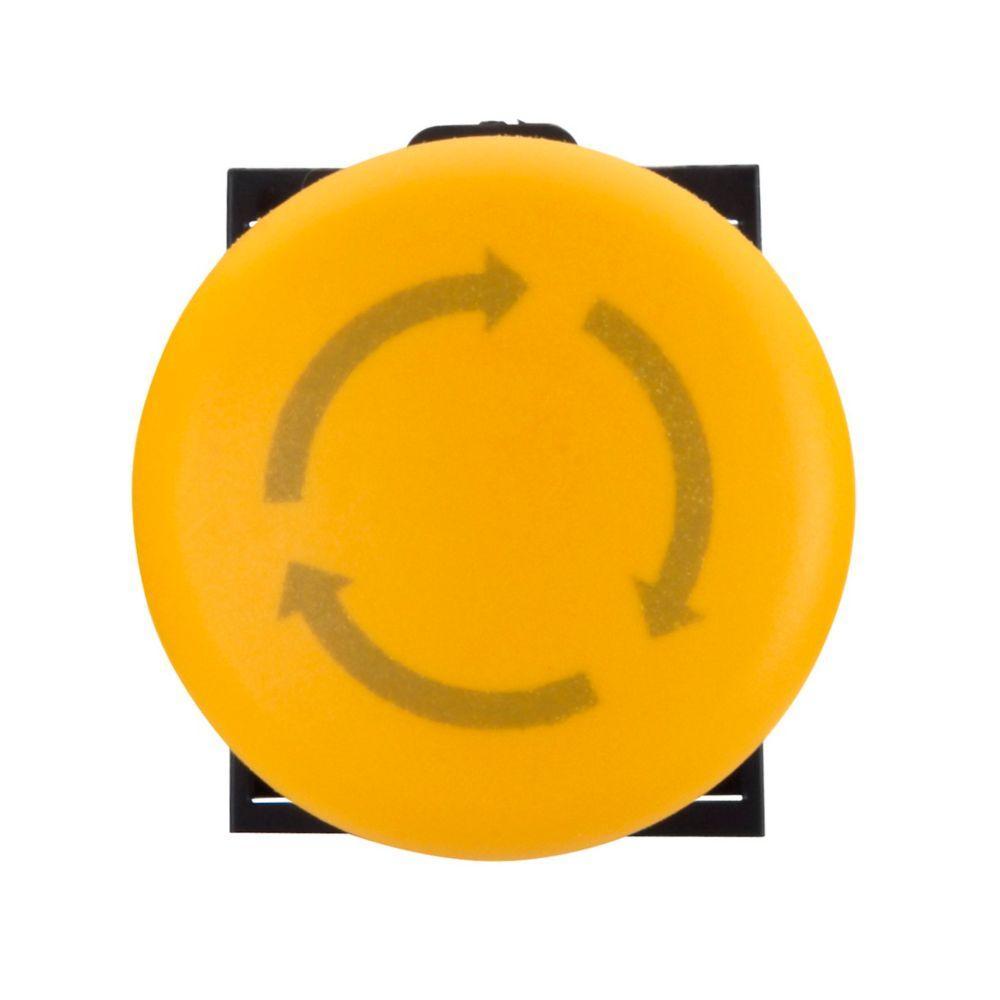

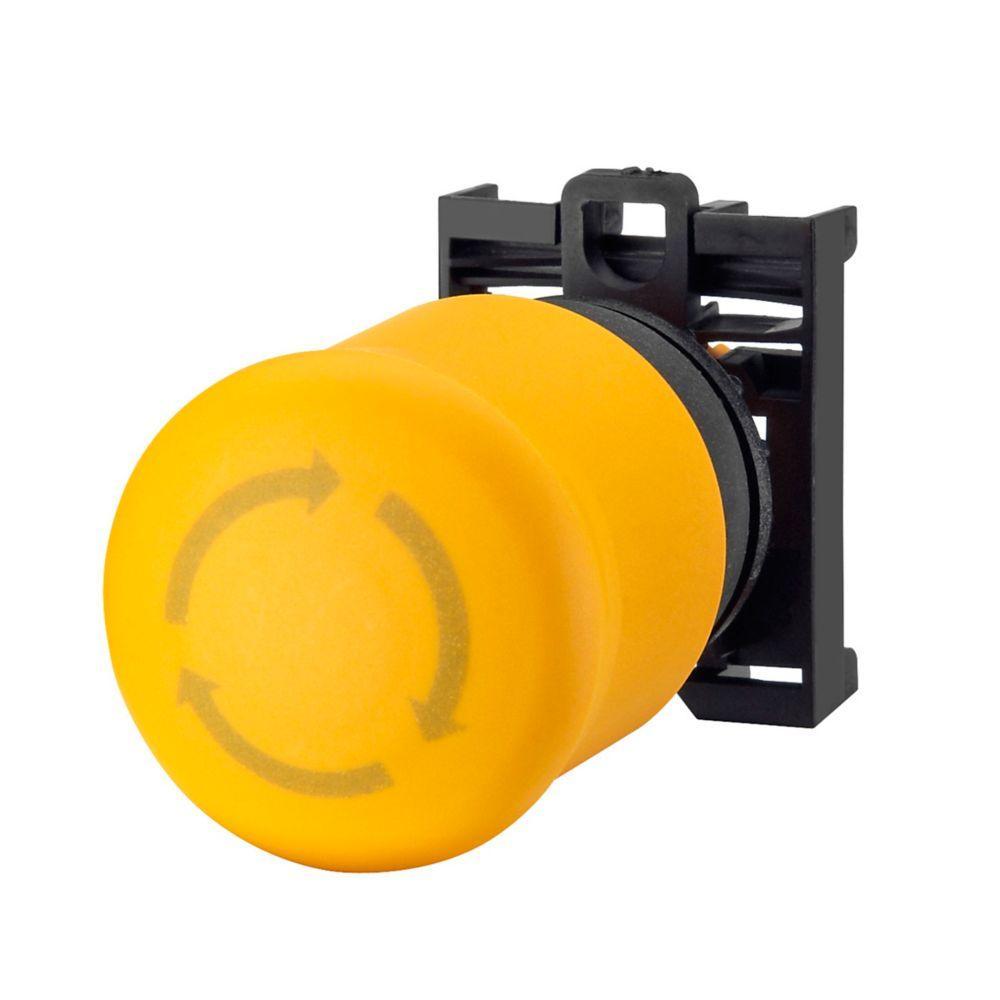

M22Y-PVT CH PUSHBUTTON 22MM OPERATOR YELLOW 35MM HEAD NON-ILLUMINATED TWIST TO RELEASE

Mouse over image to zoom, click to enlarge

  • M22Y-PVT CH PUSHBUTTON 22MM OPERATOR YELLOW 35MM HEAD NON-ILLUMINATED TWIST TO RELEASE
  • M22Y-PVT CH PUSHBUTTON 22MM OPERATOR YELLOW 35MM HEAD NON-ILLUMINATED TWIST TO RELEASE
  • M22Y-PVT CH PUSHBUTTON 22MM OPERATOR YELLOW 35MM HEAD NON-ILLUMINATED TWIST TO RELEASE

Description: EATON RMQ-Titan® Emergency Stop Operator, Modular Pushbutton Non-Illuminated, Series: M22, 22.5 mm Size, 10 A at 550 V AC, 10 A at 600 V DC Contact, 35 mm Mushroom Head Pushbutton/Twist-Release Operator, NEMA 4X/13/IP67/IP69K Enclosure, -13 to 158 deg F, Plastic, Silver/Yellow

Manufacturer PN: M22Y-PVT

UPC:  78668542542

Kendall Electric Inc PN: 4158473

Invoice Description:

M22Y-PVT CH PUSHBUTTON 22MM OPERATOR YELLOW 35MM HEAD NON-ILLUMINATED TWIST TO RELEASE


SPEC SHEET

▸ See All in Non-Illumin. Twist/Key Release Operators


How Can We Make This Page Better?

EATON RMQ-Titan® M22Y-PVT Modular Pushbutton Non-Illuminated Emergency Stop Operator, 22.5 mm, Silver/Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Emergency Stop Operator, Modular Pushbutton Non-Illuminated, Series: M22, 22.5 mm Size, 10 A at 550 V AC, 10 A at 600 V DC Contact, 35 mm Mushroom Head Pushbutton/Twist-Release Operator, NEMA 4X/13/IP67/IP69K Enclosure, -13 to 158 deg F, Plastic, Silver/Yellow

Specifications

 Brand Name EATON
 Color Silver/Yellow
 Contact Rating 10 A at 550 V AC, 10 A at 600 V DC
 Enclosure NEMA 4X/13/IP67/IP69K
 Manufacturer Part Number M22Y-PVT
 Material Plastic
 PART NUMBER KEYWORDS M22Y-PVT ; M22YPVT ; 11037097 ; 786685425429 ; 78668542542 ; 00786685425429
 Series M22
 Size 22.5 mm
 Standards/Approvals CSA Certified,CCC Marked,Lloyd's Register Certified,GoST-R,CE Marked,Bureau Veritas
 Temperature Rating -13 to 158 deg F
 Type Modular Pushbutton Non-Illuminated

Features

▪ More than 100000 mechanical operations
▪ Capable of communicating via ASi protocol with ASi adapter modules
▪ Suitable for use in safety applications up to Cat 4 or Sil-3
▪ 100000 hours of operating cycles
