Eaton

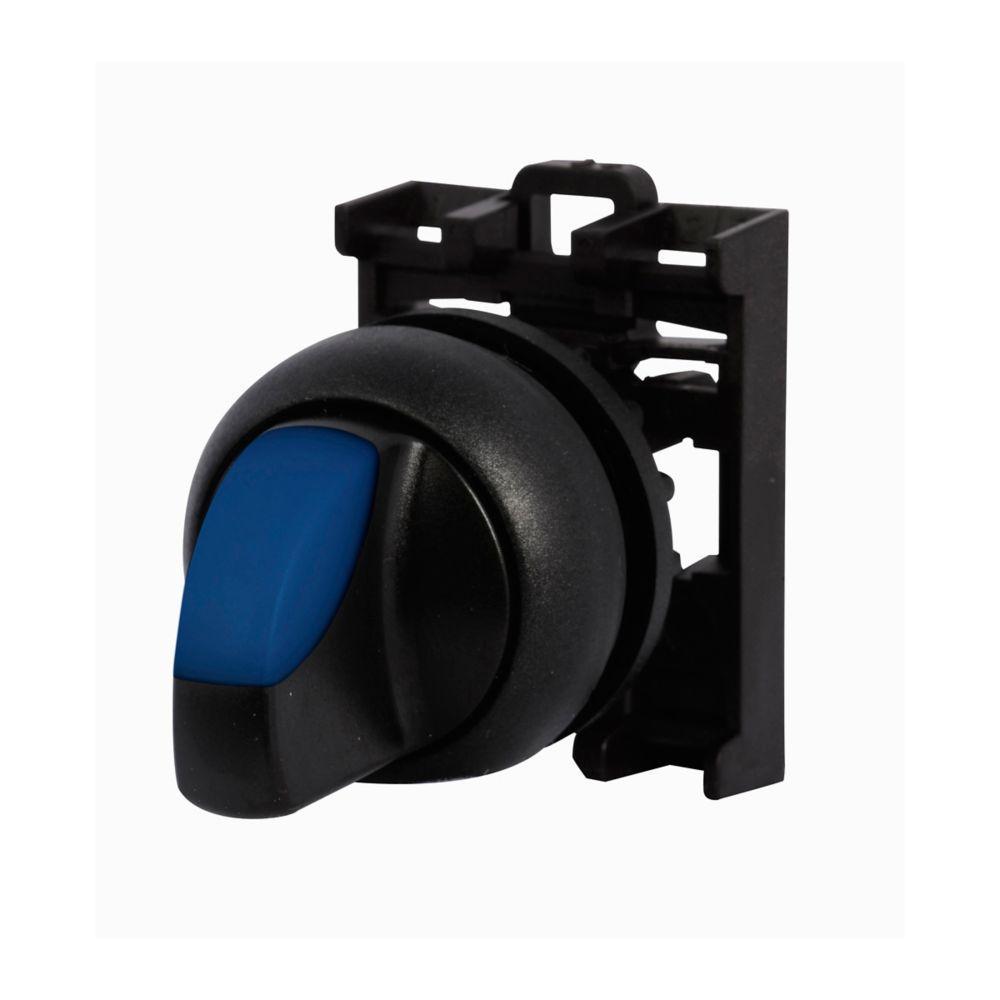

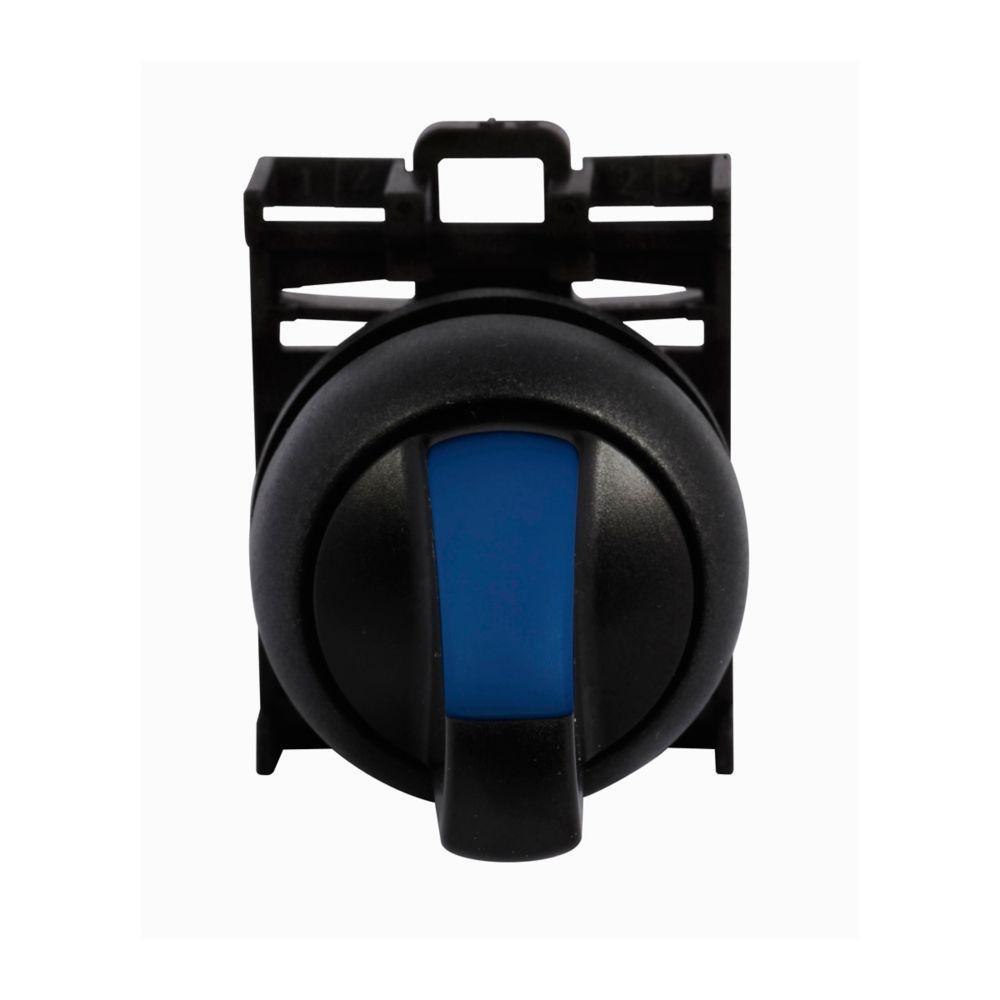

M22S-WRLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MAINTAINED BLACK BEZEL

Mouse over image to zoom, click to enlarge

  • M22S-WRLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MAINTAINED BLACK BEZEL
  • M22S-WRLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MAINTAINED BLACK BEZEL
  • M22S-WRLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MAINTAINED BLACK BEZEL

Description: EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Maintained Contact Mode, Knob Operator, 3 Positions, 60 deg Left Center/Right Throw, LED Lamp, NEMA 4X/13/IP66 Enclosure, Bezel/Housing: Black Nylon Bezel, -13 to 158 deg F, Blue

Manufacturer PN: M22S-WRLK3-B

UPC:  78668528115

Kendall Electric Inc PN: 2858381

Invoice Description:

M22S-WRLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MAINTAINED BLACK BEZEL


SPEC SHEET

How Can We Make This Page Better?

EATON RMQ-Titan® M22S-WRLK3-B Modular Pushbutton Illuminated Selector Switch Operator, 22.5 mm, Knob Operator, 3 Positions, Blue

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Maintained Contact Mode, Knob Operator, 3 Positions, 60 deg Left Center/Right Throw, LED Lamp, NEMA 4X/13/IP66 Enclosure, Bezel/Housing: Black Nylon Bezel, -13 to 158 deg F, Blue

Specifications

 Application Commercial, Institutional Buildings and Structures
 Bezel Housing Black Nylon Bezel
 Brand Name EATON
 Color Blue
 Enclosure NEMA 4X/13/IP66
 Includes Contact Block Mounting Adapter
 Lamp Type LED
 Manufacturer Part Number M22S-WRLK3-B
 Number of Positions 3
 PART NUMBER KEYWORDS M22S-WRLK3-B ; M22SWRLK3B ; 10596437 ; 786685281155 ; 78668528115 ; 00786685281155
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CCC Marked,CSA Certified,GoST-R,CE Marked,Bureau Veritas
 Temperature Rating -13 to 158 deg F
 Throw 60 deg Left Center/Right
 Type Modular Pushbutton

Features

▪ Adding or removing coding adapters allows for field convertibility of maintained/momentary and key removal positions
▪ LED offering only for improved brightness quality and up to 100000 hours of operation
▪ More than 100000 mechanical operations
▪ Coding adapter options make assembly fast and simplify stocking of different configurations of selector switches
▪ Capable of communicating via ASi protocol with ASi adapter modules
