Eaton

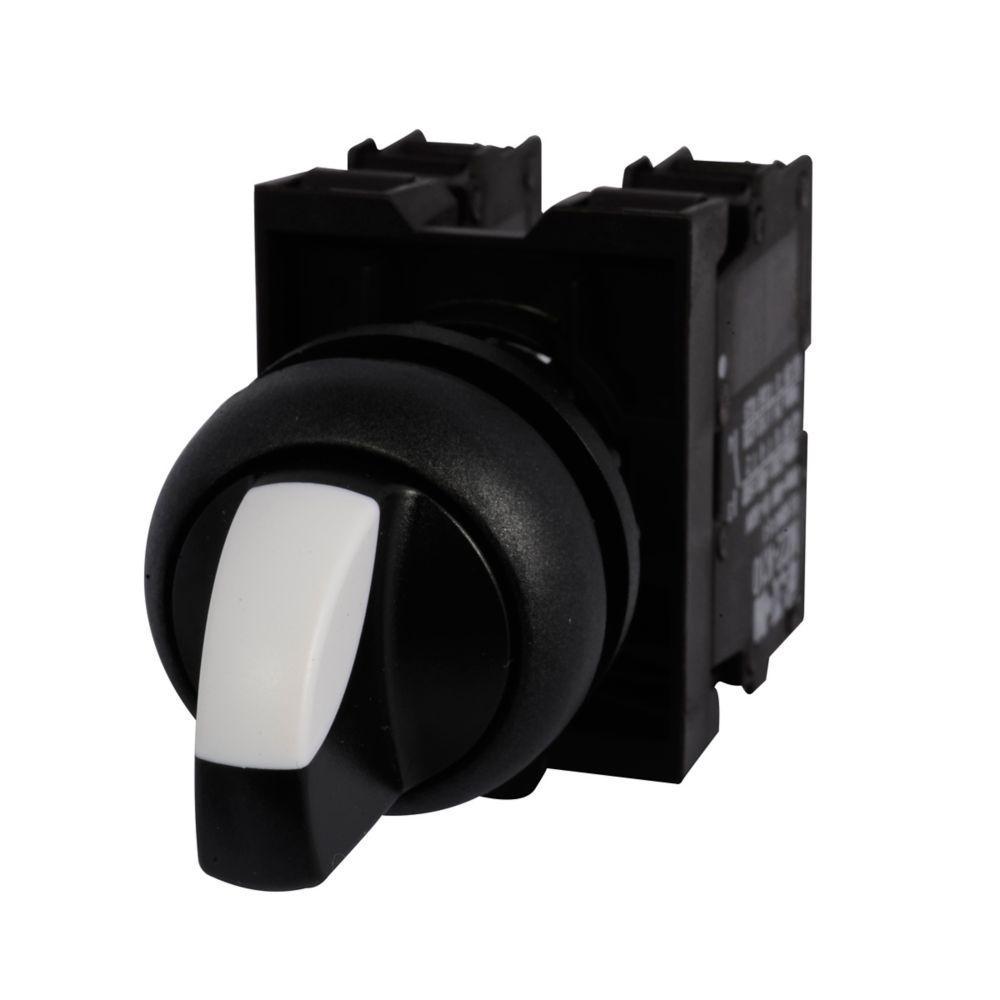

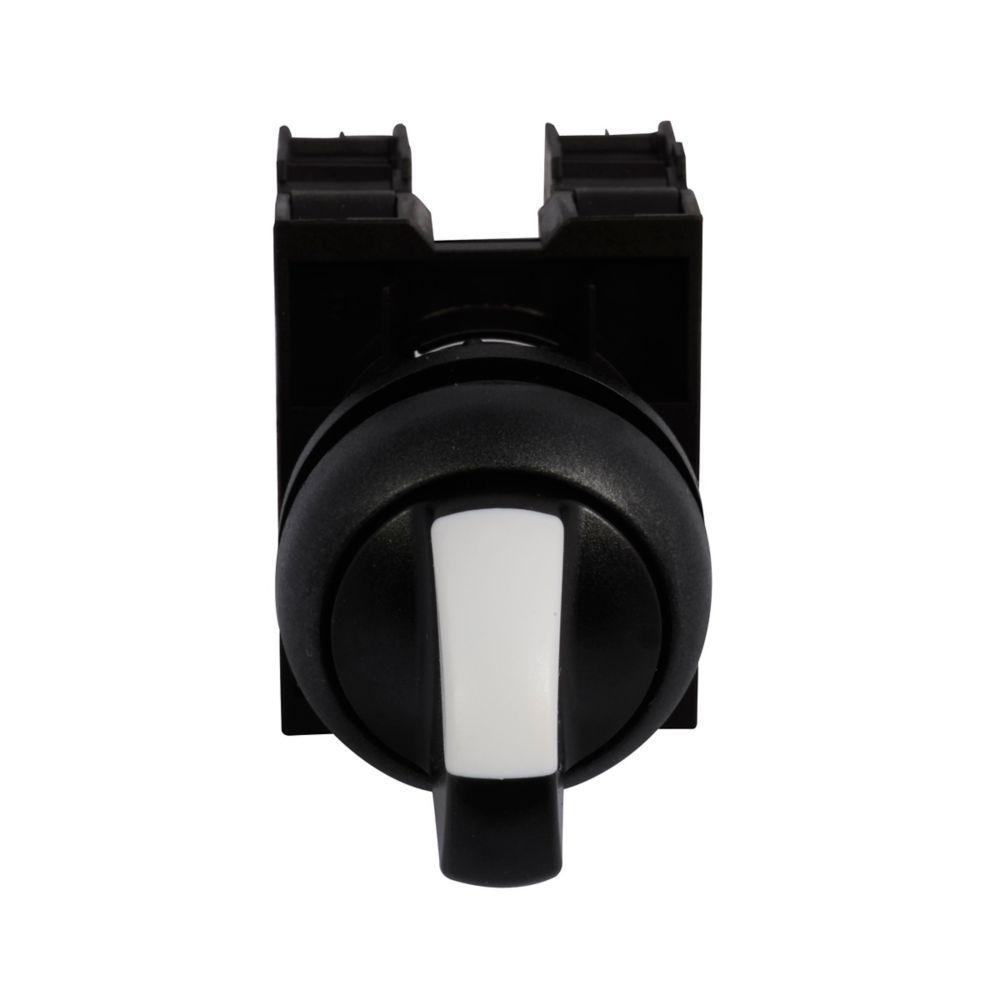

M22S-WRK3-K20 CH ASSEMBLED SELECTOR SWITCH 22MM BLACK 3POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 2NO

Mouse over image to zoom, click to enlarge

  • M22S-WRK3-K20 CH ASSEMBLED SELECTOR SWITCH 22MM BLACK 3POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 2NO
  • M22S-WRK3-K20 CH ASSEMBLED SELECTOR SWITCH 22MM BLACK 3POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 2NO
  • M22S-WRK3-K20 CH ASSEMBLED SELECTOR SWITCH 22MM BLACK 3POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 2NO

Description: EATON RMQ-Titan® Selector Switch, Non-Illuminated Modular Pushbutton, Series: M22, 22.5 mm Size, 2NO Contact Configuration, Maintained Contact Mode, 3 Positions, 60 deg Throw, Knob Actuator, NEMA 4X/13/IP66/IP67/IP69K Enclosure, Black

Manufacturer PN: M22S-WRK3-K20

UPC:  78668528112

Kendall Electric Inc PN: 2877225

Invoice Description:

M22S-WRK3-K20 CH ASSEMBLED SELECTOR SWITCH 22MM BLACK 3POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 2NO


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

EATON RMQ-Titan® M22S-WRK3-K20 Non-Illuminated Modular Pushbutton Selector Switch, 22.5 mm, 2NO Contact, Black

Log In for Pricing and Availability




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Selector Switch, Non-Illuminated Modular Pushbutton, Series: M22, 22.5 mm Size, 2NO Contact Configuration, Maintained Contact Mode, 3 Positions, 60 deg Throw, Knob Actuator, NEMA 4X/13/IP66/IP67/IP69K Enclosure, Black

Specifications

 Actuator Knob
 Application Automation, Electrical Assemblies, Panels, EOEMs and Logic Control Equipment Applications
 Brand Name EATON
 Color Black
 Contact Configuration 2NO
 Enclosure NEMA 4X/13/IP66/IP67/IP69K
 Manufacturer Part Number M22S-WRK3-K20
 Number of Positions 3
 Series M22
 Size 22.5 mm
 Standards/Approvals CCC Marked,Lloyd's Register Certified,CSA Certified,CE Marked,Bureau Veritas,GoST-R
 Throw 60 deg
 Type Non-Illuminated Modular Pushbutton

Features

▪ Adding or removing coding adapters allows for field convertibility of maintained/momentary and key removal positions
▪ LED offering only for improved brightness quality and up to 100000 hours of operation
▪ More than 100000 mechanical operations
▪ Coding adapter options make assembly fast and simplify stocking of different configurations of selector switches
▪ Capable of communicating via ASi protocol with ASi adapter modules
