Eaton

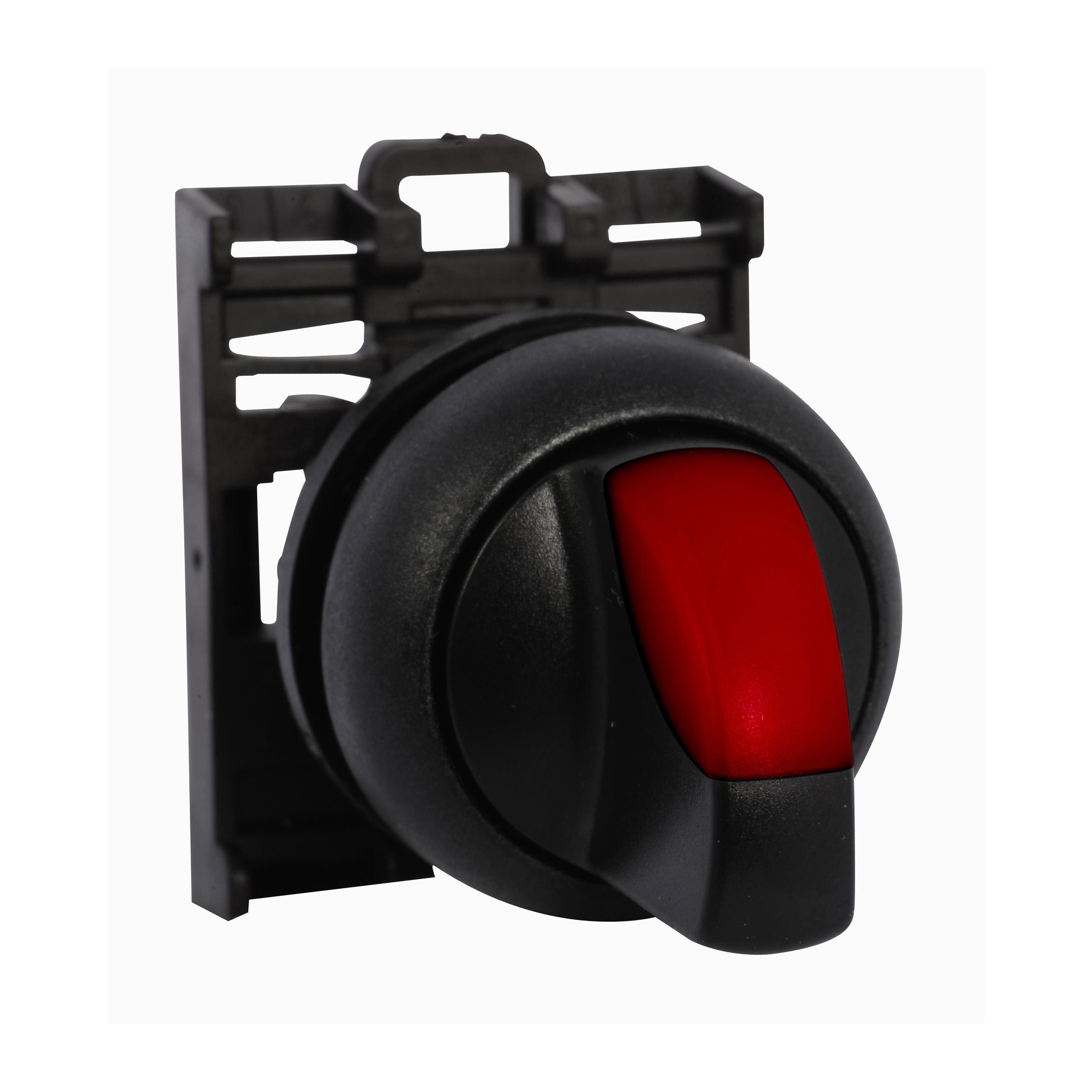

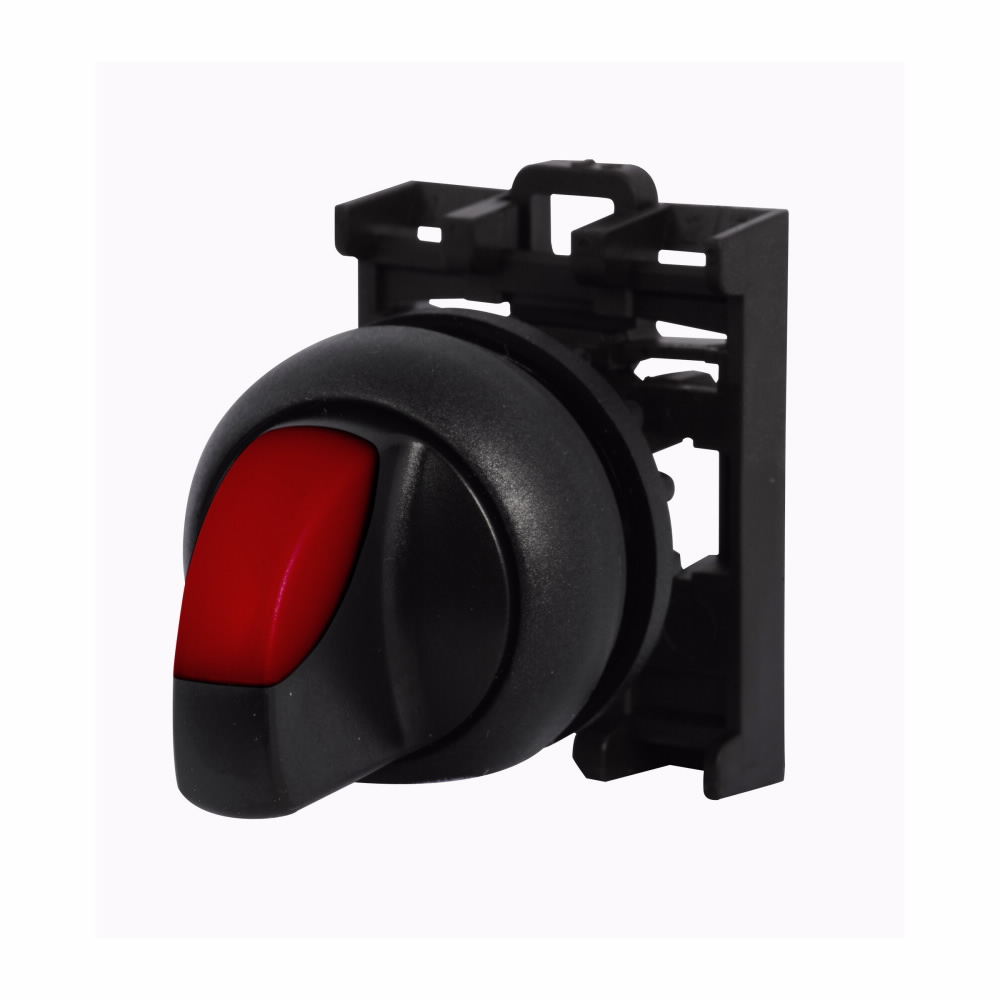

M22S-WLKV-R CH SELECTOR SWITCH 22MM OPERATOR RED VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL

Mouse over image to zoom, click to enlarge

  • M22S-WLKV-R CH SELECTOR SWITCH 22MM OPERATOR RED VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL
  • M22S-WLKV-R CH SELECTOR SWITCH 22MM OPERATOR RED VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL
  • M22S-WLKV-R CH SELECTOR SWITCH 22MM OPERATOR RED VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL
  • M22S-WLKV-R CH SELECTOR SWITCH 22MM OPERATOR RED VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL

Description: EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 2 Positions, NEMA 4X/13 Enclosure, Bezel/Housing: Black

Manufacturer PN: M22S-WLKV-R

UPC:  78668528096

Kendall Electric Inc PN: 2931968

Invoice Description:

M22S-WLKV-R CH SELECTOR SWITCH 22MM OPERATOR RED VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON RMQ-Titan® M22S-WLKV-R Modular Pushbutton Illuminated Selector Switch Operator, 22.5 mm, Knob Operator, 2 Positions

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 2 Positions, NEMA 4X/13 Enclosure, Bezel/Housing: Black

Specifications

 Application Automation, Commercial, Institutional Buildings and Structures and Logic Control Equipment Applications
 Bezel Housing Black
 Brand Name EATON
 Enclosure NEMA 4X/13
 Manufacturer Part Number M22S-WLKV-R
 Number of Positions 2
 PART NUMBER KEYWORDS M22S-WLKV-R ; M22SWLKVR ; 10596418 ; 786685280967 ; 78668528096 ; 00786685280967
 Series M22
 Size 22.5 mm
 Standards/Approvals CCC Marked,CSA Certified,Lloyd's Register Certified,CE Marked,Bureau Veritas,GoST-R
 Type Modular Pushbutton

Features

▪ Red button color
▪ Notes includes contact block mounting adapter can be converted in the field to maintained operation with the removal of a color coded adapter
▪ 0.995 lb weight
▪ 1.17 in L x 1.17 in W x 1.06 in H
▪ Light 100000 hours, button 100000 operations
