Eaton

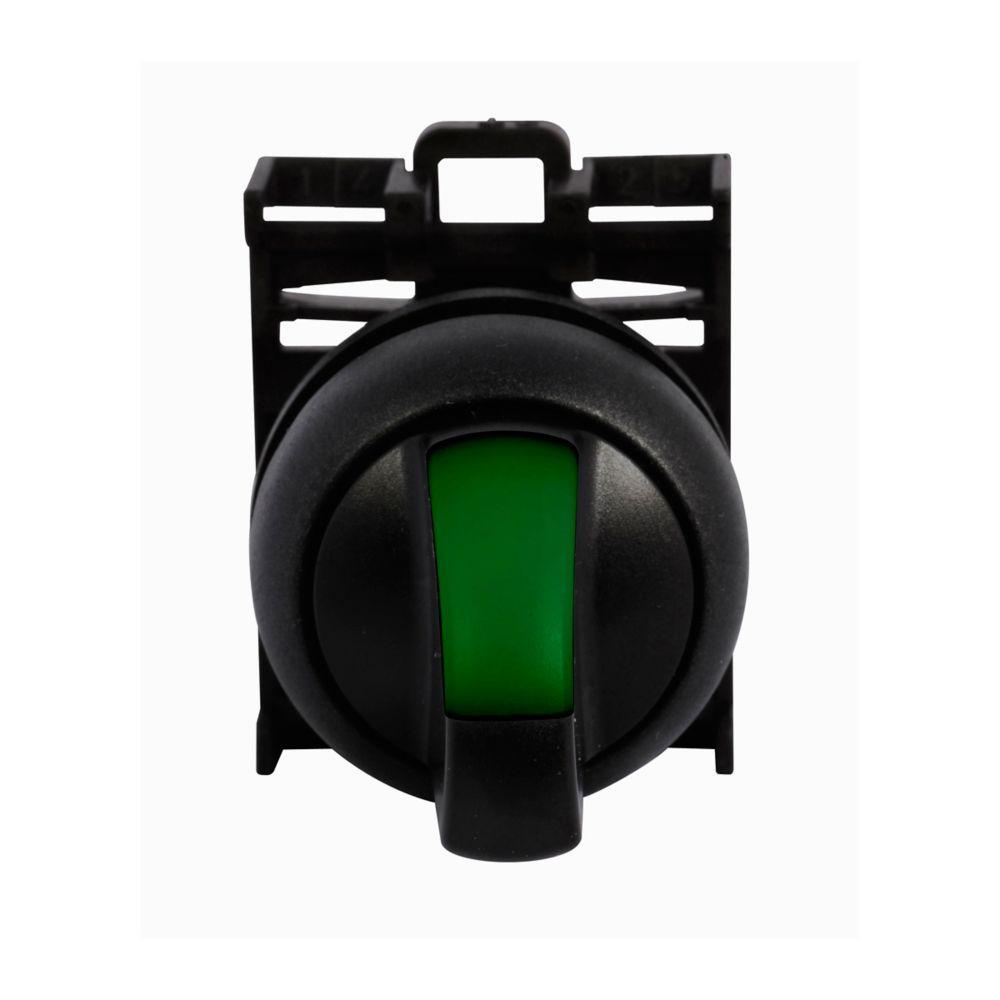

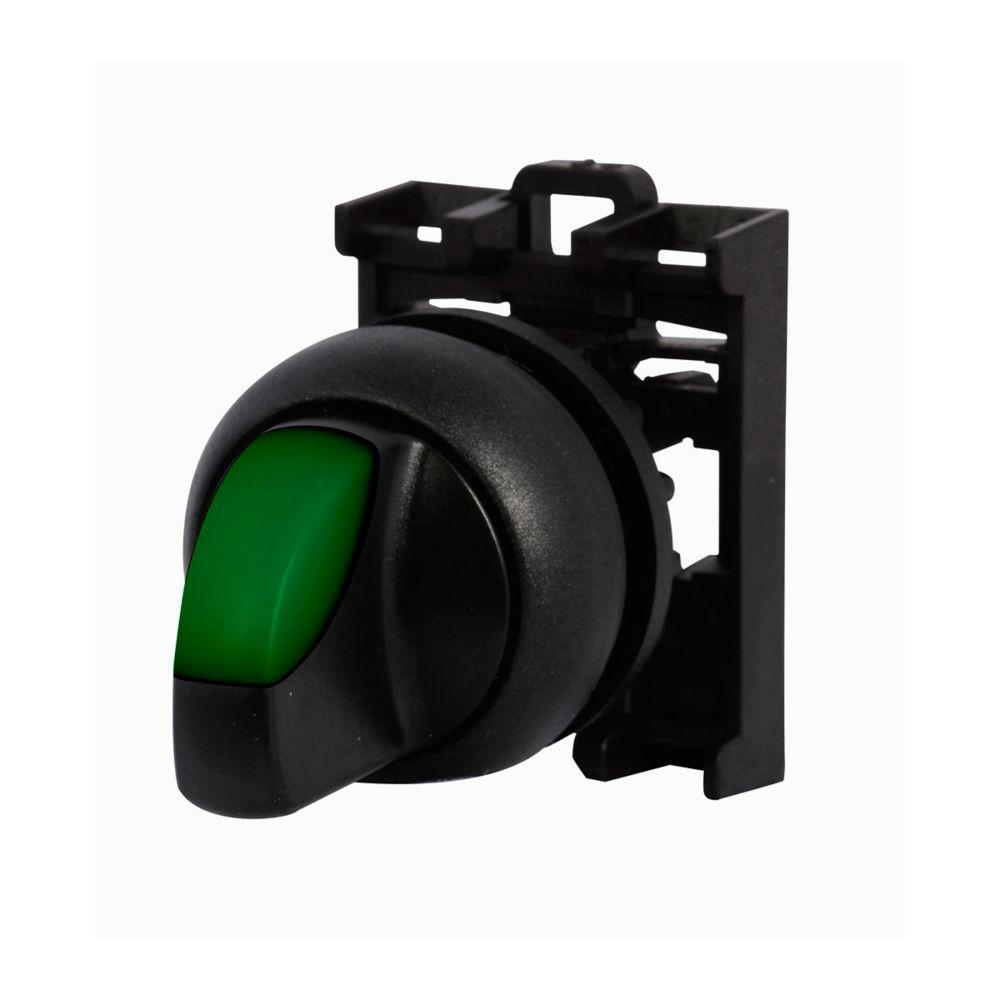

M22S-WLKV-G CH SELECTOR SWITCH 22MM OPERATOR GREEN VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL

Mouse over image to zoom, click to enlarge

  • M22S-WLKV-G CH SELECTOR SWITCH 22MM OPERATOR GREEN VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL
  • M22S-WLKV-G CH SELECTOR SWITCH 22MM OPERATOR GREEN VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL
  • M22S-WLKV-G CH SELECTOR SWITCH 22MM OPERATOR GREEN VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL

Description: EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 2 Positions, 0 to 40 deg Throw, NEMA 3/3R/4/4X/12/13/IP66 Enclosure, Bezel/Housing: Black, Green

Manufacturer PN: M22S-WLKV-G

UPC:  78668528095

Kendall Electric Inc PN: 2944967

Invoice Description:

M22S-WLKV-G CH SELECTOR SWITCH 22MM OPERATOR GREEN VCAM 2POSITION ILLUMINATED MAINTAINED BLACK BEZEL


SPEC SHEET

How Can We Make This Page Better?

EATON RMQ-Titan® M22S-WLKV-G Modular Pushbutton Illuminated Selector Switch Operator, 22.5 mm, Knob Operator, 2 Positions, Green

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 2 Positions, 0 to 40 deg Throw, NEMA 3/3R/4/4X/12/13/IP66 Enclosure, Bezel/Housing: Black, Green

Specifications

 Application Automation, Commercial, Institutional Buildings and Structures and Logic Control Equipment Applications
 Bezel Housing Black
 Brand Name EATON
 Color Green
 Enclosure NEMA 3/3R/4/4X/12/13/IP66
 Includes Contact Block Mounting Adapter
 Manufacturer Part Number M22S-WLKV-G
 Number of Positions 2
 PART NUMBER KEYWORDS M22S-WLKV-G ; M22SWLKVG ; 10596417 ; 786685280950 ; 78668528095 ; 00786685280950
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CSA Certified,CCC Marked,Bureau Veritas,CE Marked,GoST-R
 Throw 0 to 40 deg
 Type Modular Pushbutton

Features

▪ Can be converted in the field to maintained operation with the removal of a color coded adapter
