Eaton

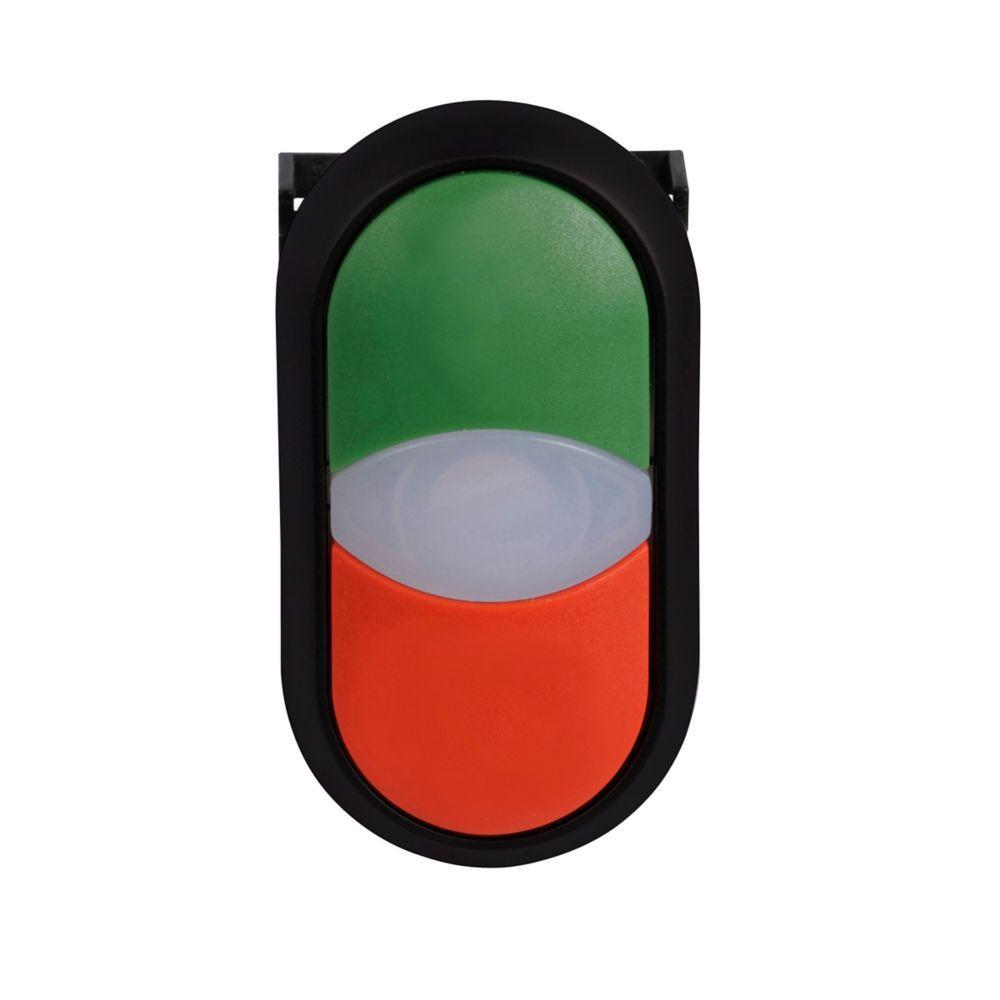

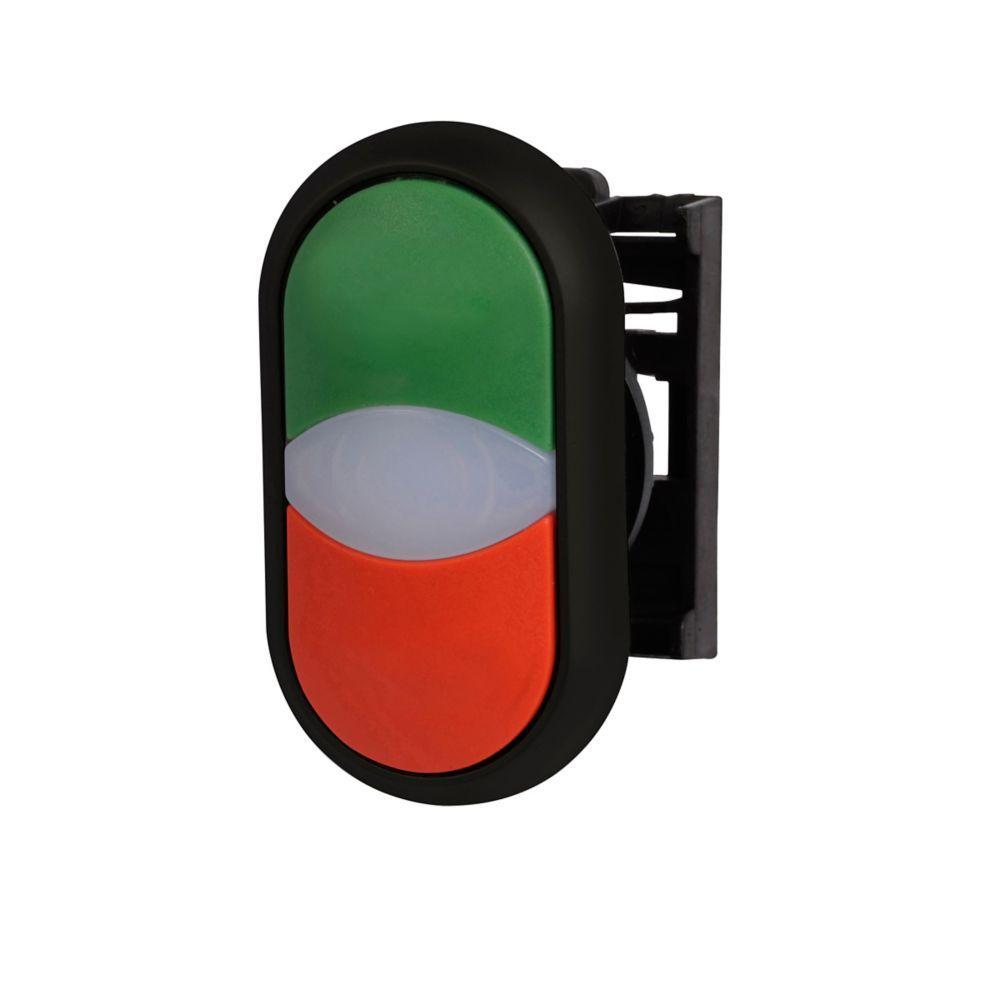

M22S-DDL-GR CH M22-DDLM-GR CH PUSHBUTTON 22MM OPERATOR DOUBLE BUTTON GREEN RED CENTER ILLUMINATED MOMENTARY BLACK BEZEL

Mouse over image to zoom, click to enlarge

  • M22S-DDL-GR CH M22-DDLM-GR CH PUSHBUTTON 22MM OPERATOR DOUBLE BUTTON GREEN RED CENTER ILLUMINATED MOMENTARY BLACK BEZEL
  • M22S-DDL-GR CH M22-DDLM-GR CH PUSHBUTTON 22MM OPERATOR DOUBLE BUTTON GREEN RED CENTER ILLUMINATED MOMENTARY BLACK BEZEL
  • M22S-DDL-GR CH M22-DDLM-GR CH PUSHBUTTON 22MM OPERATOR DOUBLE BUTTON GREEN RED CENTER ILLUMINATED MOMENTARY BLACK BEZEL

Description: EATON RMQ-Titan® Illuminated Pushbutton Operator, 2-Modular, Series: M22, 22.5 mm Size, Momentary Contact Mode, Double/Extended Operator, LED Lamp, Bezel/Housing: Black Bezel, NEMA 4X/13/IP66 Enclosure, -13 to 158 deg F, Green/Red

Manufacturer PN: M22S-DDL-GR

UPC:  78668527201

Kendall Electric Inc PN: 4183032

Invoice Description:

M22S-DDL-GR CH M22-DDLM-GR CH PUSHBUTTON 22MM OPERATOR DOUBLE BUTTON GREEN RED CENTER ILLUMINATED MOMENTARY BLACK BEZEL


SPEC SHEET

▸ See All in Illuminated Pushbutton Operators


How Can We Make This Page Better?

EATON RMQ-Titan® M22S-DDL-GR 2-Modular Illuminated Pushbutton Operator, 22.5 mm, Double/Extended Operator, Momentary Contact, Green/Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Pushbutton Operator, 2-Modular, Series: M22, 22.5 mm Size, Momentary Contact Mode, Double/Extended Operator, LED Lamp, Bezel/Housing: Black Bezel, NEMA 4X/13/IP66 Enclosure, -13 to 158 deg F, Green/Red

Specifications

 Application Electrical Assemblies, Panels and EOEMs Applications
 Bezel Housing Black Bezel
 Brand Name EATON
 Color Green/Red
 Enclosure NEMA 4X/13/IP66
 Lamp Type LED
 Manufacturer Part Number M22S-DDL-GR
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CCC Marked,CSA Certified,CE Marked,GoST-R,Bureau Veritas
 Temperature Rating -13 to 158 deg F
 Type 2-Modular

Features

▪ 100000 hours light and 200000 hours button mechanical operations

Resources

 Catalog Page
 Product Data Sheet
