Eaton

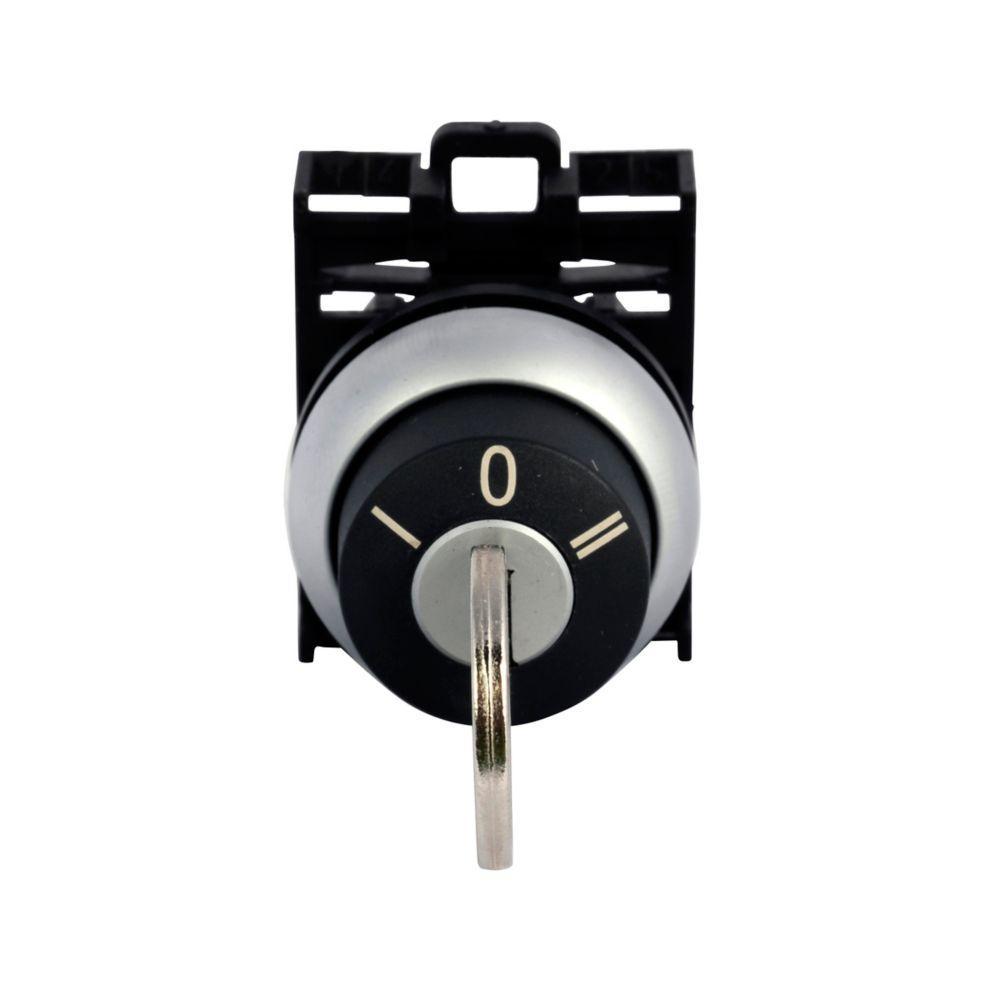

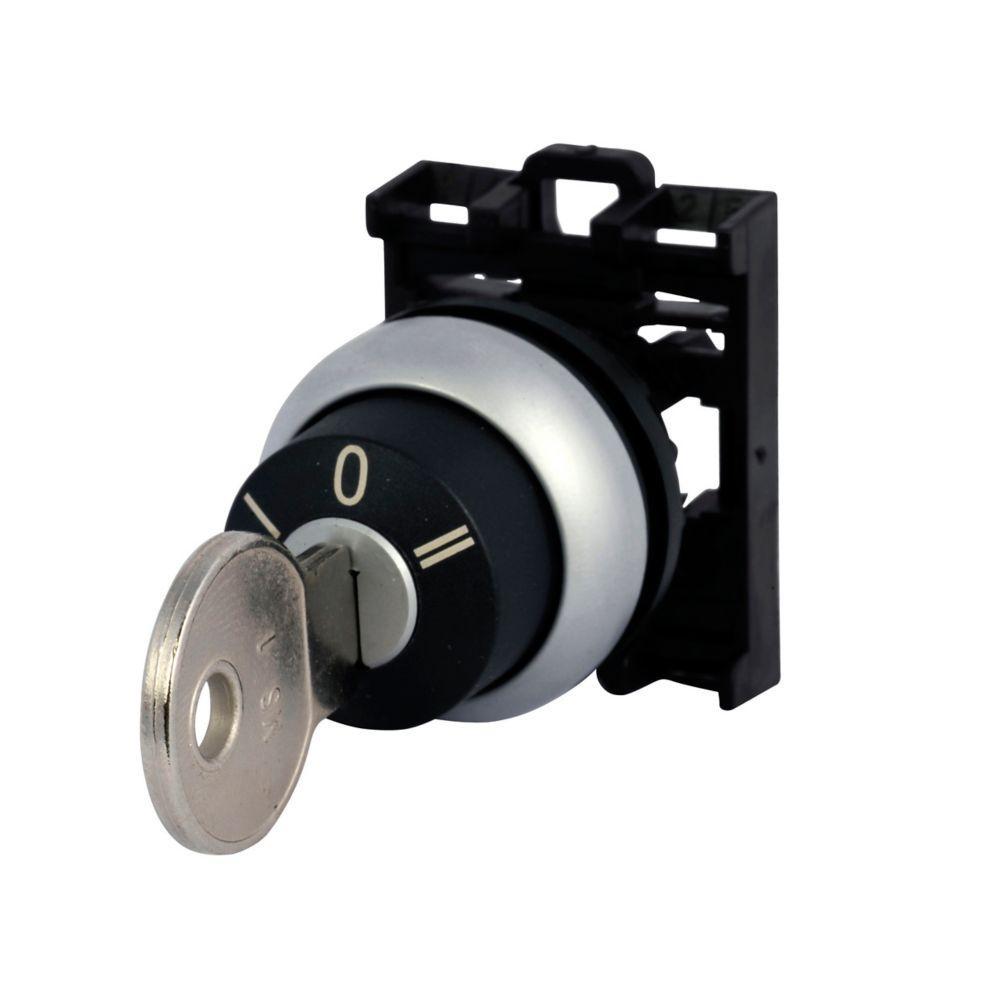

M22-WS3 CH SELECTOR SWITCH 22MM OPERATOR KEY 3POSITION MOMENTARY SILVER BEZEL KEY REMOVAL CENTER MS1 KEY CODE (CAN BE CONVERTED TO MAINTAINED)

Mouse over image to zoom, click to enlarge

  • M22-WS3 CH SELECTOR SWITCH 22MM OPERATOR KEY 3POSITION MOMENTARY SILVER BEZEL KEY REMOVAL CENTER MS1 KEY CODE (CAN BE CONVERTED TO MAINTAINED)
  • M22-WS3 CH SELECTOR SWITCH 22MM OPERATOR KEY 3POSITION MOMENTARY SILVER BEZEL KEY REMOVAL CENTER MS1 KEY CODE (CAN BE CONVERTED TO MAINTAINED)
  • M22-WS3 CH SELECTOR SWITCH 22MM OPERATOR KEY 3POSITION MOMENTARY SILVER BEZEL KEY REMOVAL CENTER MS1 KEY CODE (CAN BE CONVERTED TO MAINTAINED)

Description: EATON Non-Illuminated Selector Switch Operator, Modular, Series: M22, 22.5 mm Size, Momentary Contact Mode, 3 Positions, MS1 Key Operator, NEMA 4X/13/IP66 Enclosure, Black/Silver

Manufacturer PN: M22-WS3

UPC:  78668528022

Kendall Electric Inc PN: 2857970

Invoice Description:

M22-WS3 CH SELECTOR SWITCH 22MM OPERATOR KEY 3POSITION MOMENTARY SILVER BEZEL KEY REMOVAL CENTER MS1 KEY CODE (CAN BE CONVERTED TO MAINTAINED)


SPEC SHEET

▸ See All in Non-Illumin. Twist/Key Release Operators


How Can We Make This Page Better?

EATON M22-WS3 Modular Non-Illuminated Selector Switch Operator, 22.5 mm, 3 Positions, Black/Silver

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON Non-Illuminated Selector Switch Operator, Modular, Series: M22, 22.5 mm Size, Momentary Contact Mode, 3 Positions, MS1 Key Operator, NEMA 4X/13/IP66 Enclosure, Black/Silver

Specifications

 Application Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Color Black/Silver
 Enclosure NEMA 4X/13/IP66
 Includes Key and Contact Block Mounting Adapter
 Manufacturer Part Number M22-WS3
 Number of Positions 3
 PART NUMBER KEYWORDS M22-WS3 ; M22WS3 ; 10596344 ; 786685280226 ; 78668528022 ; 00786685280226
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CCC Marked,CSA Certified,GoST-R,Bureau Veritas,CE Marked
 Type Modular

Features

▪ Return from left right, key removable center
▪ 100000 hr of operating cycles
▪ Removal positions can be modified in the field using coding adapters
▪ Our M22 now offers an attractive chrome metal bezel that will enhance appeal to your 22 mm pushbutton applications
▪ Most pushbutton operators and contact blocks exceed 5 million mechanical operations
▪ This highly versatile line features field convertible functions and customized laser engraving capabilities
