Eaton

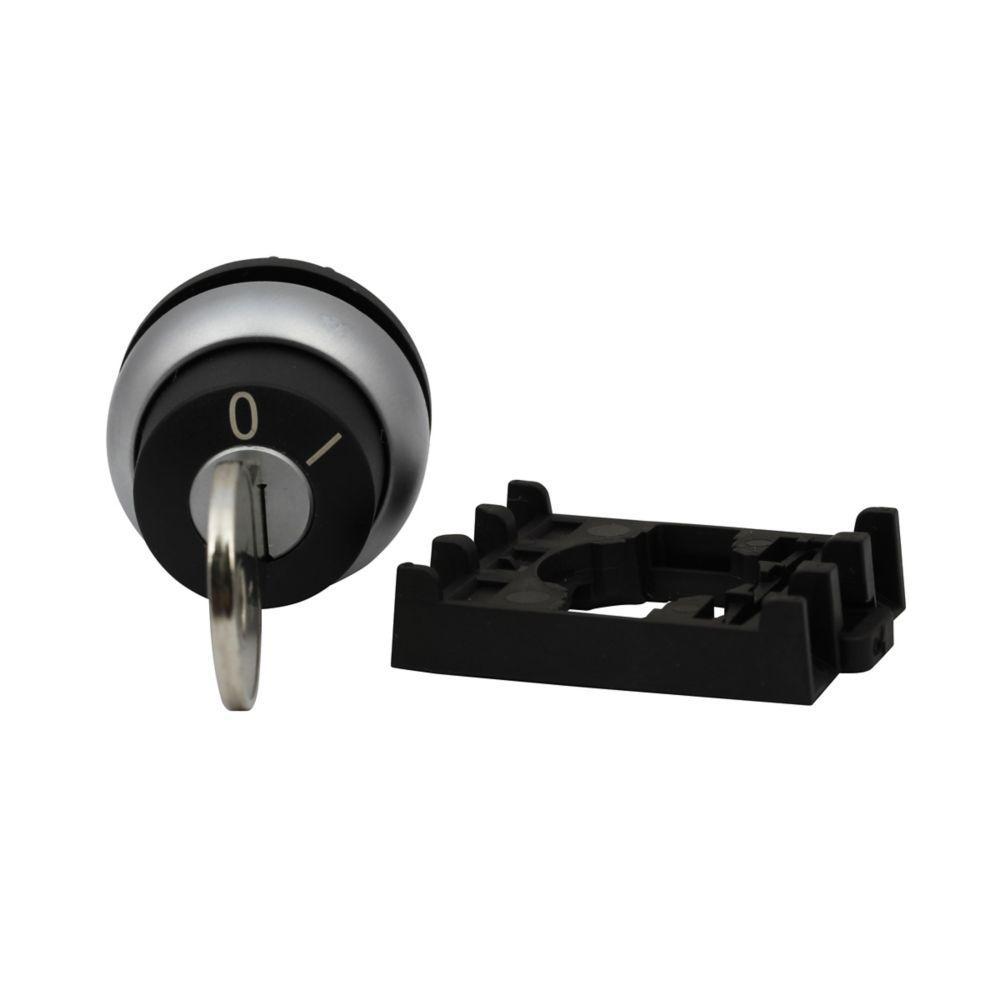

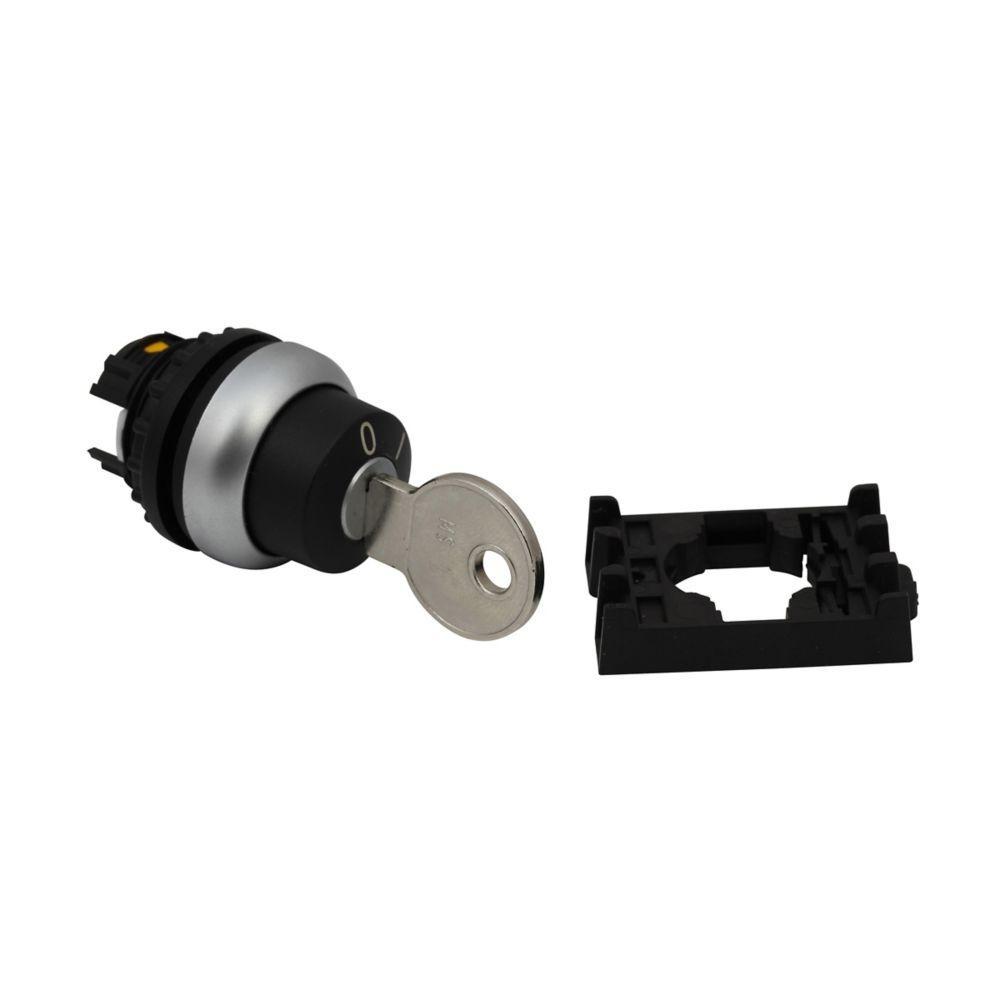

M22-WS-MS2 CH SELECTOR SWITCH 22MM OPERATOR KEY 2POSITION MOMENTARY SILVER BEZEL KEY REMOVAL LEFT MS2 KEY CODE (CAN BE CONVERTED TO MAINTAINED)

Mouse over image to zoom, click to enlarge

  • M22-WS-MS2 CH SELECTOR SWITCH 22MM OPERATOR KEY 2POSITION MOMENTARY SILVER BEZEL KEY REMOVAL LEFT MS2 KEY CODE (CAN BE CONVERTED TO MAINTAINED)
  • M22-WS-MS2 CH SELECTOR SWITCH 22MM OPERATOR KEY 2POSITION MOMENTARY SILVER BEZEL KEY REMOVAL LEFT MS2 KEY CODE (CAN BE CONVERTED TO MAINTAINED)
  • M22-WS-MS2 CH SELECTOR SWITCH 22MM OPERATOR KEY 2POSITION MOMENTARY SILVER BEZEL KEY REMOVAL LEFT MS2 KEY CODE (CAN BE CONVERTED TO MAINTAINED)

Description: EATON Non-Illuminated Selector Switch Operator, Modular, Series: M22, 22.5 mm Size, Momentary Contact Mode, 2 Positions, MS2 Key Operator, NEMA 4X/13/IP66 Enclosure, -13 to 158 deg F, Plastic, Black/Silver

Manufacturer PN: M22-WS-MS2

UPC:  78668528071

Kendall Electric Inc PN: 2801329

Invoice Description:

M22-WS-MS2 CH SELECTOR SWITCH 22MM OPERATOR KEY 2POSITION MOMENTARY SILVER BEZEL KEY REMOVAL LEFT MS2 KEY CODE (CAN BE CONVERTED TO MAINTAINED)


SPEC SHEET

How Can We Make This Page Better?

EATON M22-WS-MS2 Modular Non-Illuminated Selector Switch Operator, 22.5 mm, 2 Positions, Black/Silver

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON Non-Illuminated Selector Switch Operator, Modular, Series: M22, 22.5 mm Size, Momentary Contact Mode, 2 Positions, MS2 Key Operator, NEMA 4X/13/IP66 Enclosure, -13 to 158 deg F, Plastic, Black/Silver

Specifications

 Brand Name EATON
 Color Black/Silver
 Enclosure NEMA 4X/13/IP66
 Includes Key and Contact Block Mounting Adapter
 Manufacturer Part Number M22-WS-MS2
 Material Plastic
 Number of Positions 2
 PART NUMBER KEYWORDS M22-WS-MS2 ; M22WSMS2 ; 10596393 ; 786685280714 ; 78668528071 ; 00786685280714
 Series M22
 Size 22.5 mm
 Standards/Approvals CSA Certified,CCC Marked,Lloyd's Register Certified,GoST-R,Bureau Veritas,CE Marked
 Temperature Rating -13 to 158 deg F
 Type Modular

Features

▪ Return from right, key removable left
▪ 100000 hr of operating cycles
▪ Black button
▪ Removal positions can be modified in the field using coding adapters
▪ Incandescent lamp
